Rapid Ref : 9203006024

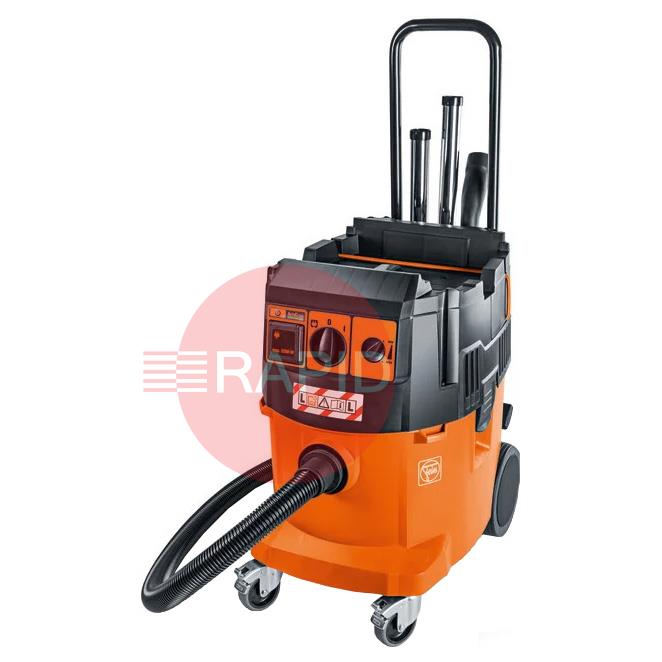

FEIN DUSTEX 35 LX AC Premium L-Class Dust Extractor
9203006024

Select Option
Prices From £422.00 ex VAT

Wet /dry dust extractor

Powerful, professional wet/dry dust extractor of dust class L with fully automatic filter cleaning for attachment of various case systems including extensive accessories.

  • Tool cases of various systems can be positioned on the extraction head and secured
  • Ergonomic transport of the complete unit, including power tool and extractor, thanks to push bar and case and accessory attachment
  • Fully automatic filter cleaning (AC) makes the flat fold filter last longer for uninterrupted working
  • Reliable suction of different types of dirt from liquids to fine dust
  • Approval for dust class L
  • With PES flat fold filter and electronic shut-off for outstanding wet extraction performance
  • Auto start socket with switch-on delay to avoid power surges
  • Infinitely variable suction force regulation on the extractor
  • The 7.5 m mains cable and 4 m hose provide a large working radius
  • Anti-static function for preventing static charging during work - electrostatically discharging thanks to optional suction hose 3 13 45 120 01 0

Product Details

Package Includes

1 push bar, 1 PES flat fold filter, 1 disposal bag, 1x 4m suction hose (diameter 35mm), 1 tool collar with suction force regulation, 1 stepped collar, 2 suction pipes (metal), 1 combi nozzle with interchangeable inserts, 1 crevice nozzle, 1 suction brush, 1 elbow.

Specification

Maximum power input: 1,380W
Airflow: 4,320 l/min
Max. vacuum: 254 hPa
Tank volume: 35 l
Cable with plug: 7.5m
Sound pressure level: 67 dB
Weight according to EPTA: 14.10Kg

Brochures & Manuals

FEIN Dust Extractors FAQs

Plain answers on dust classes, filters, hoses and getting the best from an extractor used with grinders and other power tools.

What do the L, M and H dust classes mean?icon-minus-redicon-plus-red

The class tells you how fine a dust the extractor's filtration is designed to handle, and it is based on the exposure limit of the material being collected. Class L filters are tested to capture more than 99% of the test dust and suit dusts with a higher exposure limit. Class M raises that to more than 99.9% and is intended for dusts with lower limits. Class H goes beyond 99.995% and is intended for the most hazardous dusts, including cancer-causing ones.

The class is set under the standard for commercial wet and dry vacuum cleaners and should be marked on the machine. Check the safety data sheet for the material you are working on, then pick a class to suit it. If in doubt, step up a class.

Why use a dust extractor instead of an ordinary workshop vacuum?icon-minus-redicon-plus-red

HSE guidance is clear that a general commercial vacuum is not a substitute for a properly classed extraction unit when you are controlling hazardous dust at the source. A dust extractor is built and tested to a dust class, so its filters, seals and bag or container arrangement are designed to keep fine dust from escaping back into the air. Many also have a low-flow warning to tell you when suction has dropped.

Fitting a high-efficiency filter into a standard vacuum does not make it equivalent, because leaks elsewhere in the machine can let dust through. For on-tool extraction, the extractor, hose and the tool's dust hood all need to work together, so choose parts that are compatible with each other.

What does automatic filter cleaning do, and is it worth having?icon-minus-redicon-plus-red

Fine dust quickly blocks a filter, and a blocked filter means falling suction and poorer capture at the tool. Automatic filter cleaning reverses the airflow through the filter at intervals to shake dust off it, so suction stays steadier and the filter usually lasts longer. You often hear a noticeable thump when it operates.

HSE guidance recommends choosing units with pre-filters or built-in back-flushing mechanisms where lots of fine dust is expected. It is most worthwhile for long, dusty jobs such as grinding or sanding for hours at a time. For occasional light use, a machine with manual or semi-automatic cleaning is often enough. Whichever you have, check the manual for how the cleaning is switched on and for any bag or lid arrangement it needs to work properly.

Why has the suction dropped?icon-minus-redicon-plus-red

Falling suction is most often a simple blockage or a full container, so work through the checks in order. First, see whether the bag or container is full and empty or replace it. Next, look at the main filter: if it is clogged, clean or replace it, and make sure it is seated correctly. Then check the hose, nozzle and any tool adaptor for a blockage or a kink, and confirm that the lid is closed and sealed.

Some machines have an airflow indicator or alarm that warns of exactly this. If the machine has automatic filter cleaning, it normally only triggers when airflow falls below a set level, so you may need to run a manual clean to test it. If suction stays poor, stop and have the machine checked, particularly when it is collecting hazardous dust.
