Rapid Ref : 7270416124

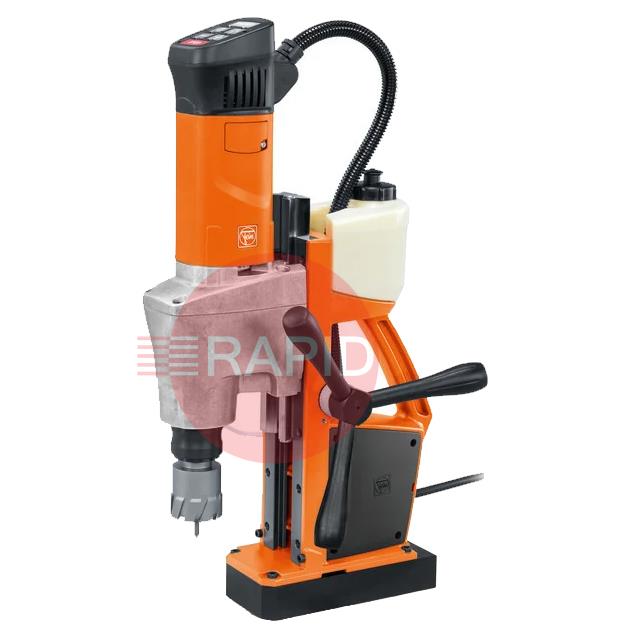

FEIN KBM 50 Q Universal Magnetic Drill 50mm
7270416124

Select Option
Prices From £1236.00 ex VAT
 Buy in 3 easy interest free payments of £412.00† with

Metal core drilling unit up to 50 mm

Lightweight and powerful 2-speed universal magnetic core drill with clockwise/anti-clockwise operation and maximum functionality for flexible working in the workshop and on the construction site.

  • Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry and manual trades.
  • Perfect power-to-weight ratio thanks to compact, weight-optimised design and FEIN 1,200 W high-power motor with tacho electronics for high speed stability for reliable and economical working.
  • With clockwise/anti-clockwise operation, electronic speed setting and a 315 mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming.
  • Simple operating concept avoids mix-ups and can be clearly seen by the user.
  • Convenient magnetic holding force display helps the user to reliably position the tool.
  • High magnetic holding force.
  • Integrated coolant tank delivers long core drill bit lives.
  • Feed handwheel can be moved from one side to the other.
  • Speed saving "memory function"
  • Personal safety switch

Product Details

Package Includes

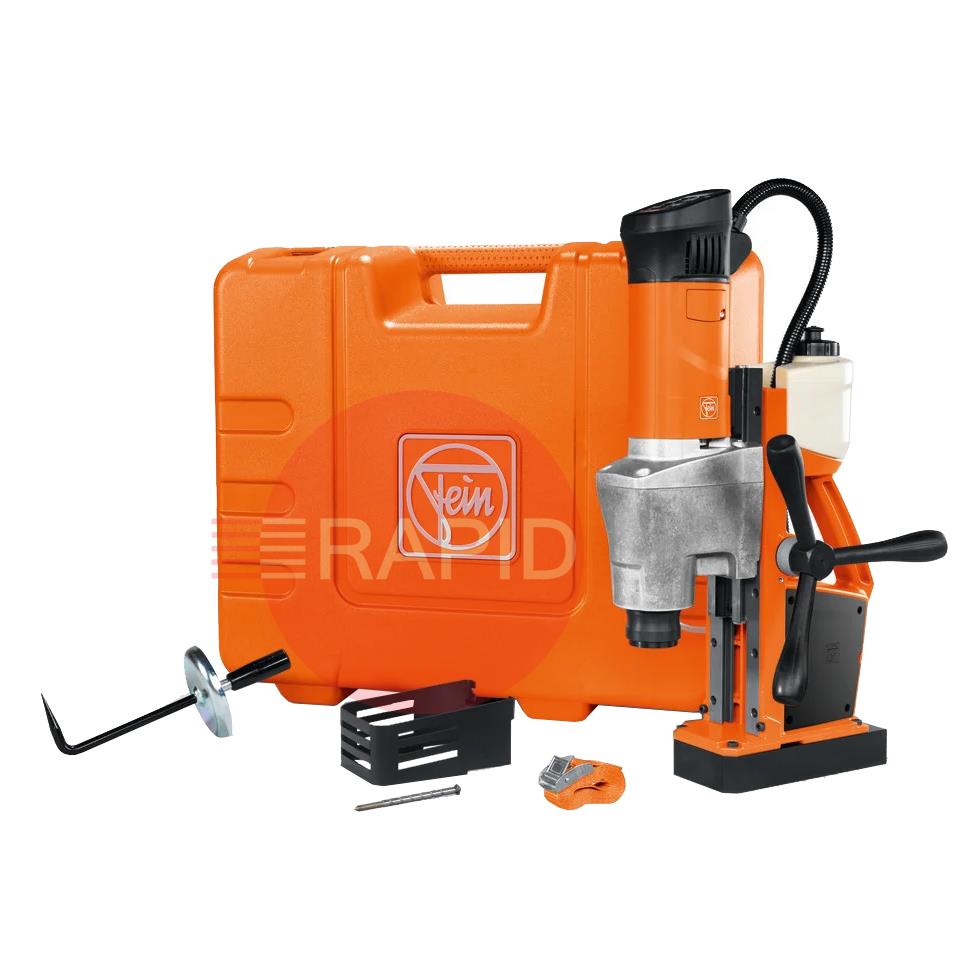

1 coolant tank, 1 centering pin, 1 lashing strap, 1 contact guard, 1 swarf hook and 1 case.

Specification

Input: 1,200 W
Output: 640 W
Load speed in speed 1: 130 - 260 rpm
Load speed in speed 2: 260 - 520 rpm
Carbide core drill bit max. Ø: 50mm
HSS core drill max. Ø: 40mm
Core drill, drilling depth max.: 50mm
Twist drill max. Ø: 16mm
Tapping: M 16
Countersinking max. Ø: 31mm
Reaming max. Ø: 16mm
Changing the core bit: Tool-free
Stroke: 145mm
Total stroke range: 315mm
Cable with plug: 4m

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   FEIN KBM 50 / 65 Manual Instruction

FEIN Universal Mag Drills FAQs

Straight answers to the questions people ask most when choosing and using high-specification universal magnetic drills.

What makes a magnetic drill universal?icon-minus-redicon-plus-red

A universal magnetic drill is built to do more than core drilling. As well as cutting holes with annular cutters, it can usually drive twist drills, and with the right accessories it can also tap, ream and countersink.

It normally has multiple speeds or electronic speed control and a robust guide for the motor, so it can be set up properly for each job. It suits workshops and contractors who do varied work.

How do I choose the right size of universal mag drill?icon-minus-redicon-plus-red

Start with the largest hole you need to cut and the thickest material you will drill, then choose a machine whose core capacity and cutting depth comfortably exceed them. Look at the twist drill capacity too, if you need it.

Bigger machines have larger magnets, more power and a heavier body. If you move the machine a lot, balance capacity against weight, and do not buy more machine than your work needs.

Can a universal mag drill be used for tapping?icon-minus-redicon-plus-red

Many universal models support tapping, with a reversing function and slow speed, together with a suitable tapping attachment. Tapping needs slow, controlled speed and the right tap and lubricant, and the machine must be set up for it.

Check that your machine is designed for tapping before using it this way, and follow the manufacturer's instructions. Taps break easily if forced.

How does the magnet affect safe working?icon-minus-redicon-plus-red

The magnet is what holds the machine in place, and its holding force depends on the steel's thickness, flatness and cleanliness. Thin or uneven material, rust, paint, swarf and air gaps all weaken the hold.

Clean the surface and the magnet face, switch on the magnet, and check it is holding before you start the motor. Use a safety strap where the machine could fall, such as overhead or vertical work, and where required by the instructions.
