Rapid Ref : 72705661

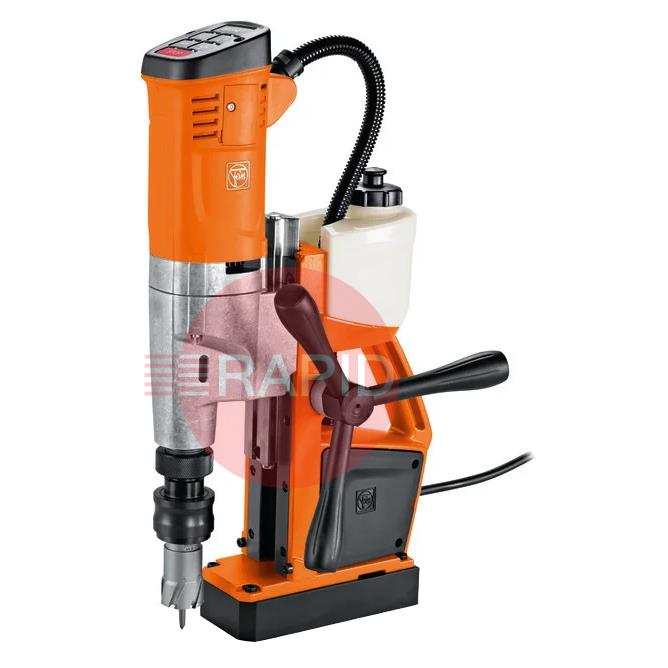

FEIN KBU 35 MQW Universal Magnetic Drill Max 35mm, with Morse Taper 2
72705661

Select Option
Prices From £1283.00 ex VAT

Universal magnetic core drill for up to 35mm

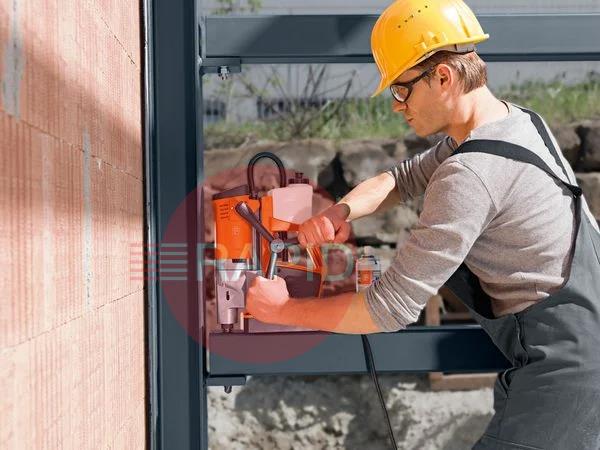

Small and powerful single-speed universal magnetic core drill with clockwise/anti-clockwise operation, MT2 tool mounting and maximum functionality for flexible working on the construction site.

  • Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry and manual trades
  • Perfect power-to-weight ratio thanks to the compact, weight-optimised design and FEIN 1100W high-power motor with tacho electronics for high-speed stability for reliable and economical working
  • With clockwise/anti-clockwise operation, electronic speed setting and a 260 mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming
  • Small with MT2 tool mounting
  • Simple operating concept avoids mix-ups and can be seen by the user
  • Convenient magnetic holding force display helps the user to position the tool reliably
  • High magnetic holding force
  • Tilt sensor
  • Additional magnetic switch in the drill jig
  • Integrated coolant tank delivers long core drill bit life
  • Feed handwheel can be moved from one side to the other
  • Speed saving "memory function"
  • Personal safety switch

Product Details

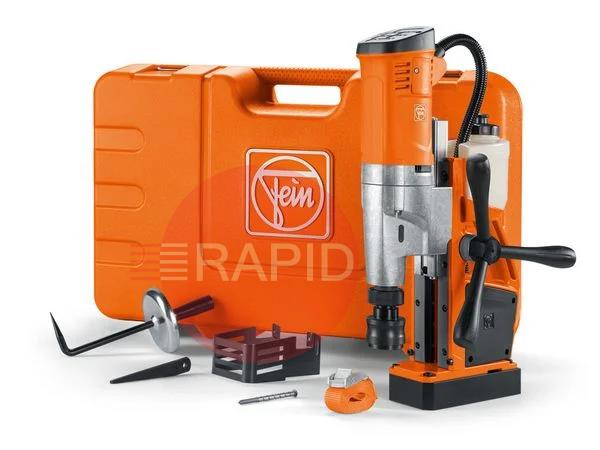

Package Includes

1 coolant tank, 1 centring pin, 1 lashing strap, 1 contact guard, 1 swarf hook and 1 case.

Specification

Input: 1,100 W
Output: 550 W
Speed, full load: 130 - 520 rpm
Tool holder: MT 2
Carbide core drill bit max. Ø: 35mm
HSS core drill max. Ø: 35mm
Core drill, drilling depth max.: 50mm
Twist drill max. Ø: 18mm
Tapping: M 14
Countersinking max. Ø: 31mm
Reaming max. Ø: 18mm
Core drill holder: ¾ in Weldon
Changing the core bit: Tool-free
Stroke: 135mm
Total stroke range: 260mm
Magnetic holding power: 10,000 N
Cable with plug: 4m
Weight according to EPTA: 10.70Kg

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   Fein KBU 35 Manual Instructions

FEIN Universal Mag Drills FAQs

Straight answers to the questions people ask most when choosing and using high-specification universal magnetic drills.

What makes a magnetic drill universal?icon-minus-redicon-plus-red

A universal magnetic drill is built to do more than core drilling. As well as cutting holes with annular cutters, it can usually drive twist drills, and with the right accessories it can also tap, ream and countersink.

It normally has multiple speeds or electronic speed control and a robust guide for the motor, so it can be set up properly for each job. It suits workshops and contractors who do varied work.

How do I choose the right size of universal mag drill?icon-minus-redicon-plus-red

Start with the largest hole you need to cut and the thickest material you will drill, then choose a machine whose core capacity and cutting depth comfortably exceed them. Look at the twist drill capacity too, if you need it.

Bigger machines have larger magnets, more power and a heavier body. If you move the machine a lot, balance capacity against weight, and do not buy more machine than your work needs.

What are the advantages of a two-speed or electronic speed control?icon-minus-redicon-plus-red

Correct speed is the key to cutter life. Large cutters and twist drills need slower speeds, while small cutters run faster. A gearbox with more than one speed, or electronic control, lets you match the speed to the job.

The result is a better finish, less heat and longer life for cutters and tools, and it also lets you use the machine for reaming and tapping, which need slower speeds.

How does the magnet affect safe working?icon-minus-redicon-plus-red

The magnet is what holds the machine in place, and its holding force depends on the steel's thickness, flatness and cleanliness. Thin or uneven material, rust, paint, swarf and air gaps all weaken the hold.

Clean the surface and the magnet face, switch on the magnet, and check it is holding before you start the motor. Use a safety strap where the machine could fall, such as overhead or vertical work, and where required by the instructions.
