Rapid Ref : 72705461

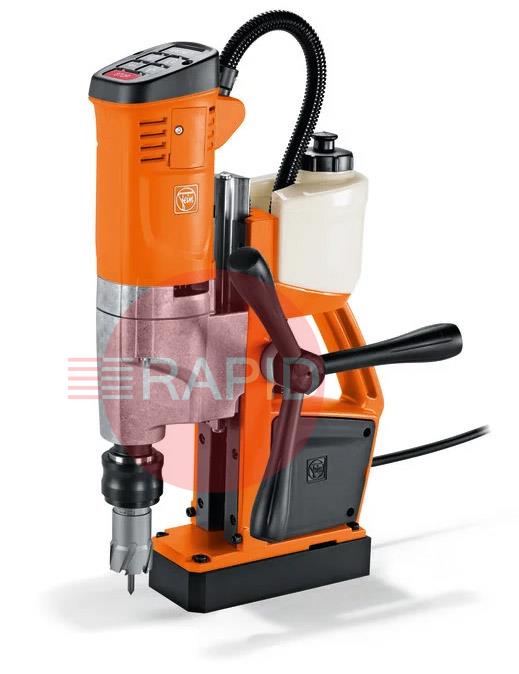

FEIN KBU 35 QW Universal Magnetic Drill Max 35mm
72705461

Select Option
Prices From £1282.00 ex VAT

Universal magnetic core drill for up to 35mm

Small and powerful single-speed universal magnetic core drill with clockwise /anti-clockwise operation and maximum functionality for flexible working on the construction site.

  • Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry and manual trades
  • Perfect power-to-weight ratio thanks to the compact, weight-optimised design and FEIN 1100W high-power motor with tacho electronics for high-speed stability for reliable and economical working
  • With clockwise /anti-clockwise operation, electronic speed setting and a 260mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming
  • Small and lightweight
  • Simple operating concept avoids mix-ups and can be seen by the user
  • Convenient magnetic holding force display helps the user to position the tool reliably
  • High magnetic holding force
  • Tilt sensor
  • Additional magnetic switch in the drill jig
  • Integrated coolant tank delivers long core drill bit life
  • Feed handwheel can be moved from one side to the other
  • Speed saving "memory function"

Product Details

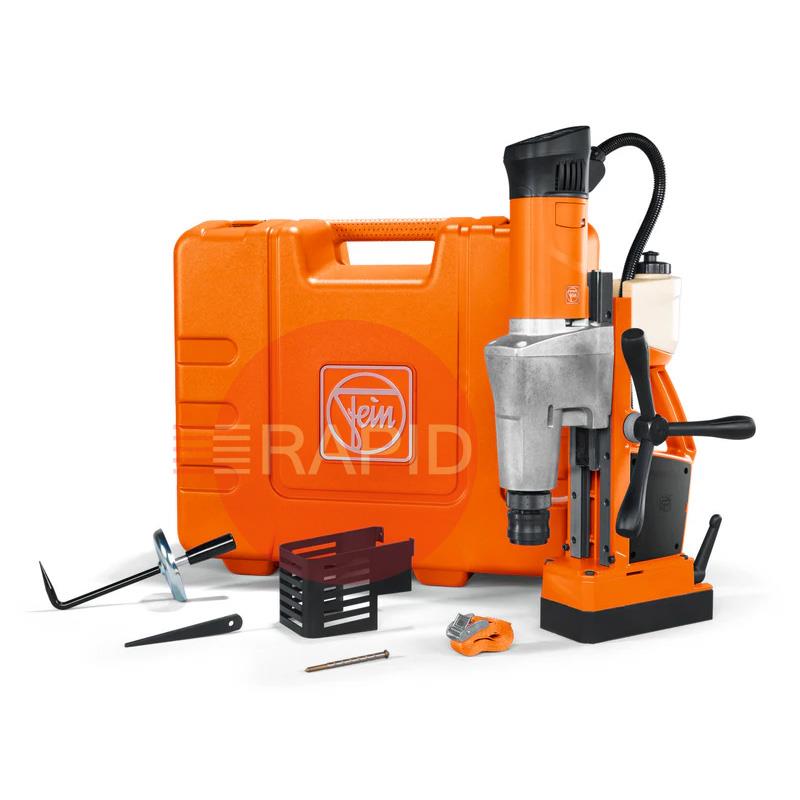

Packages include

1 coolant tank, 1 lashing strap, 1 swarf hook, 1 centring pin, 1 contact guard and 1 case.

Specification

Input: 1,010W
Output: 550W
Speed, full load: 130 - 520rpm
Carbide core drill bit max. Ø: Z5mm
HSS core drill max. Ø: 35mm
Core drill, drilling depth max.: 50mm
Twist drill max. Ø: 16mm
Tapping: M 14
Countersinking max. Ø: 31mm
Reaming max. Ø: 16mm
Core drill holder: 3/4 in Weldon
Changing the core bit: tool-free
Stroke: 135mm
Total stroke range: 260mm
Magnetic holding power: 10,000N
Cable with plug: 4m
Weight according to EPTA: 10.70Kg

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   Fein KBU 35 Manual Instructions

FEIN Universal Mag Drills FAQs

Straight answers to the questions people ask most when choosing and using high-specification universal magnetic drills.

What makes a magnetic drill universal?icon-minus-redicon-plus-red

A universal magnetic drill is built to do more than core drilling. As well as cutting holes with annular cutters, it can usually drive twist drills, and with the right accessories it can also tap, ream and countersink.

It normally has multiple speeds or electronic speed control and a robust guide for the motor, so it can be set up properly for each job. It suits workshops and contractors who do varied work.

How do I choose the right size of universal mag drill?icon-minus-redicon-plus-red

Start with the largest hole you need to cut and the thickest material you will drill, then choose a machine whose core capacity and cutting depth comfortably exceed them. Look at the twist drill capacity too, if you need it.

Bigger machines have larger magnets, more power and a heavier body. If you move the machine a lot, balance capacity against weight, and do not buy more machine than your work needs.

Can a universal mag drill be used for tapping?icon-minus-redicon-plus-red

Many universal models support tapping, with a reversing function and slow speed, together with a suitable tapping attachment. Tapping needs slow, controlled speed and the right tap and lubricant, and the machine must be set up for it.

Check that your machine is designed for tapping before using it this way, and follow the manufacturer's instructions. Taps break easily if forced.

What are the advantages of a two-speed or electronic speed control?icon-minus-redicon-plus-red

Correct speed is the key to cutter life. Large cutters and twist drills need slower speeds, while small cutters run faster. A gearbox with more than one speed, or electronic control, lets you match the speed to the job.

The result is a better finish, less heat and longer life for cutters and tools, and it also lets you use the machine for reaming and tapping, which need slower speeds.
