Rapid Ref : 72707261

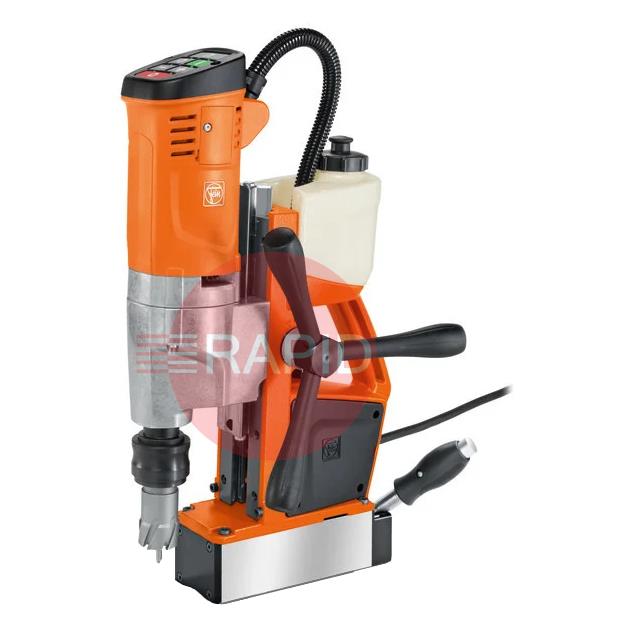

FEIN KBU 35 PQW Universal Magnetic Drill Max 35mm, with Powerful Permanent Magnet
72707261

Select Option
Prices From £1658.00 ex VAT

Universal magnetic core drill for up to 35mm

Small and powerful single-speed universal magnetic core drill with clockwise/anti-clockwise operation, permanent magnet and maximum functionality for very safe and flexible working on the construction site.

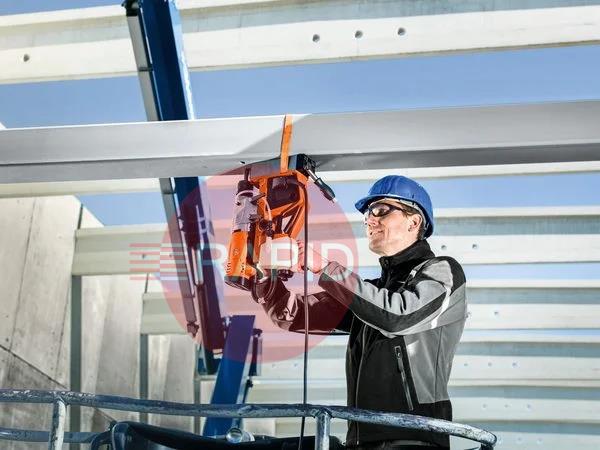

  • Permanent magnet for very safe working at height, swivel-mounted motor cable protective hose and good quality of workmanship for tough use
  • Compact and lightweight tool with high torque for continuously good work progress thanks to FEIN high-power motor with tacho electronics
  • Tool with extra-large stroke range for all drilling work, such as core, twist and tap drilling, countersinking and reaming
  • Extra narrow permanent magnet with magnetic bias
  • Tilt sensor
  • Simple operating concept avoids mix-ups and can be seen by the user
  • Convenient magnetic holding force display helps the user to reliably position the tool
  • Reversible
  • Integrated coolant tank delivers long core drill bit lives
  • Speed saving "memory function"
  • Feed handwheel can be moved from one side to the other
  • Personal safety switch

Product Details

Package Includes

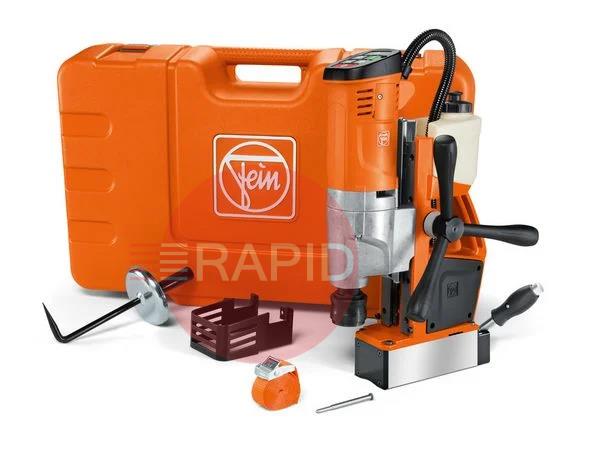

1 coolant tank, 1 centring pin diameter 6.35 x 100mm, 1 lashing strap, 1 contact guard, 1 swarf hook and 1 case.

Specification

Input: 1,010 W
Output: 550 W
Speed, full load: 130 - 520 rpm
Carbide core drill bit max. Ø: 35mm
HSS core drill max. Ø: 35mm
Core drill, drilling depth max.: 50mm
Twist drill max. Ø: 16mm
Tapping: M 14
Countersinking max. Ø: 31mm
Reaming max. Ø: 16mm
Core drill holder: ¾ in Weldon
Changing the core bit: Tool-free
Stroke: 135mm
Total stroke range: 260mm
Magnetic holding power: 9,000 N
Cable with plug: 4m
Weight according to EPTA: 12.50Kg

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   Fein KBU 35 Manual Instructions

FEIN Universal Mag Drills FAQs

Straight answers to the questions people ask most when choosing and using high-specification universal magnetic drills.

How do I choose the right size of universal mag drill?icon-minus-redicon-plus-red

Start with the largest hole you need to cut and the thickest material you will drill, then choose a machine whose core capacity and cutting depth comfortably exceed them. Look at the twist drill capacity too, if you need it.

Bigger machines have larger magnets, more power and a heavier body. If you move the machine a lot, balance capacity against weight, and do not buy more machine than your work needs.

What is the difference between a Morse taper and a quick-change fitting?icon-minus-redicon-plus-red

A Morse taper spindle holds twist drills, reamers and tapping adaptors on a tapered shank, which grips by friction and gives accurate running. A quick-change fitting is the common type for annular cutters, with a shank that locks in place and lets you swap cutters fast.

Some machines combine both, with a fitting for cutters and a taper for other tools. Check the spindle type before buying accessories.

What are the advantages of a two-speed or electronic speed control?icon-minus-redicon-plus-red

Correct speed is the key to cutter life. Large cutters and twist drills need slower speeds, while small cutters run faster. A gearbox with more than one speed, or electronic control, lets you match the speed to the job.

The result is a better finish, less heat and longer life for cutters and tools, and it also lets you use the machine for reaming and tapping, which need slower speeds.

How does the magnet affect safe working?icon-minus-redicon-plus-red

The magnet is what holds the machine in place, and its holding force depends on the steel's thickness, flatness and cleanliness. Thin or uneven material, rust, paint, swarf and air gaps all weaken the hold.

Clean the surface and the magnet face, switch on the magnet, and check it is holding before you start the motor. Use a safety strap where the machine could fall, such as overhead or vertical work, and where required by the instructions.
