Rapid Ref : 72732761000

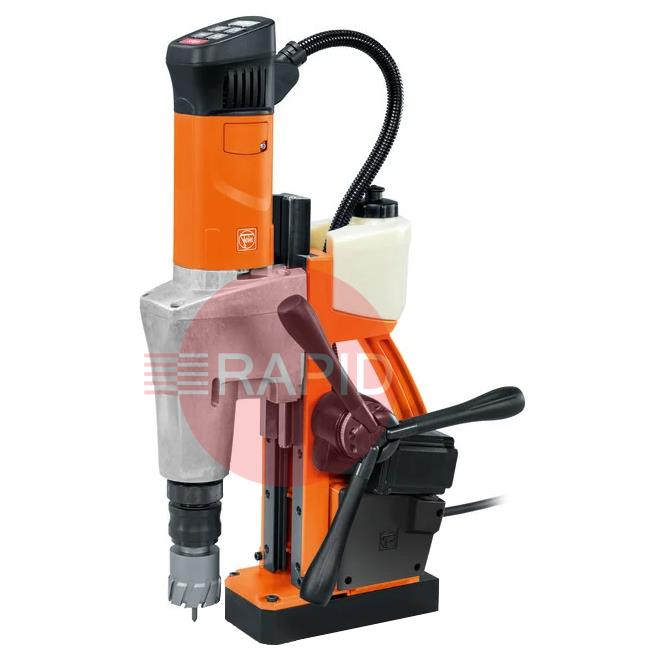

FEIN KBM 50 AUTO QW Universal Automatic Magnetic Drill - 230v
72732761000

£2249.00  EX VAT
SSP Suggested Selling Price = £2453.18  YOU SAVE £204.18
 Buy in 3 easy interest free payments of £749.67† with

Metal core drilling unit up to 50mm

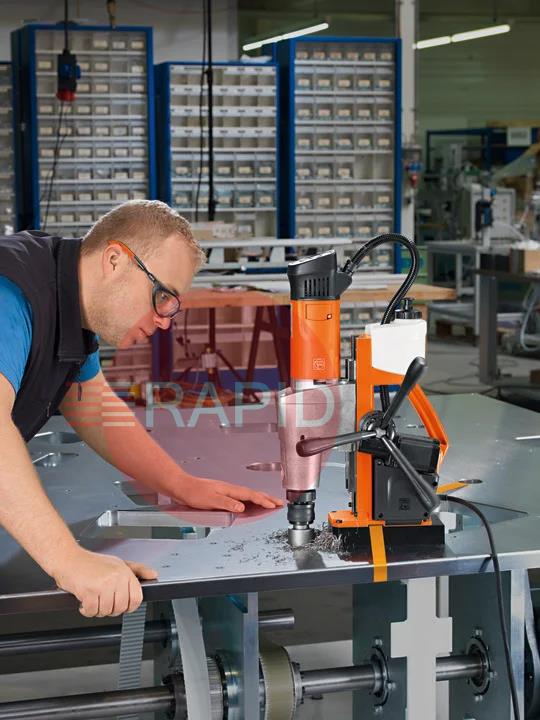

Lightweight, powerful and ingenious 2-speed auto magnetic core drill offering maximum efficiency and minimum physical strain for core drilling in the workshop and on the construction site.

  • Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry and manual trades
  • Saves time and money when producing a large number of holes thanks to the digitally controlled drill feed
  • With clockwise/anti-clockwise operation, electronic speed setting and a 315mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming
  • Thanks to reproducible and timed drilling times, working hours for commissioned and serial work can be planned
  • MT3 tool mounting
  • FEIN high-power motor with stable speed
  • Simple operating concept avoids mix-ups and can be seen by the user
  • High magnetic holding force
  • Convenient magnetic holding force display helps the user to reliably position the tool
  • Integrated coolant tank delivers long core drill bit lives
  • Tilt sensor
  • Speed saving "memory function"
  • Personal safety switch

Product Details

Package Includes

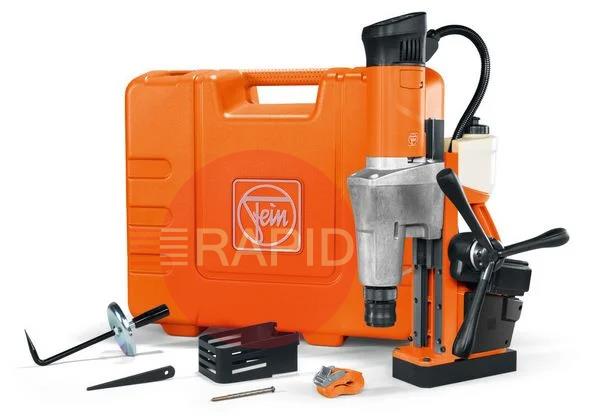

1 coolant tank, 1 centring pin, 1 lashing strap, 1 contact guard, 1 swarf hook, 1 drift key and 1 case.

Specification

* In manual tool mode only

Input: 1,200 W
Output: 610 W
Load speed in speed 1: 130 - 260 rpm
Load speed in speed 2: 260 - 520 rpm
Tool holder: MK 3
Carbide core drill bit max. Ø: 50mm
HSS core drill max. Ø: 40mm
Core drill, drilling depth max.: 50mm
Twist drill max. Ø: 18/23*mm
Tapping: M 16*
Countersinking max. Ø: 50*mm
Reaming max. Ø: 23*mm
Core drill holder: ¾ in Weldon
Changing the core bit: Tool-free
Stroke: 145mm
Total stroke range: 315mm
Cable with plug: 4m

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   FEIN KBM 50 / 65 Manual Instruction

Related Items

  • FEIN-HSS25 FEIN HSS Slugger Cutter, 25mm Depth

    FEIN HSS Slugger Cutter, 25mm Depth

    Rapid ref : FEIN-HSS25



    From £ 10.81 EX VAT


       Expand Options

  • FEIN-HSS50 FEIN HSS Slugger Cutter, 50mm Depth

    FEIN HSS Slugger Cutter, 50mm Depth

    Rapid ref : FEIN-HSS50



    From £ 13.71 EX VAT


       Expand Options

FEIN Universal Mag Drills FAQs

Straight answers to the questions people ask most when choosing and using high-specification universal magnetic drills.

What makes a magnetic drill universal?icon-minus-redicon-plus-red

A universal magnetic drill is built to do more than core drilling. As well as cutting holes with annular cutters, it can usually drive twist drills, and with the right accessories it can also tap, ream and countersink.

It normally has multiple speeds or electronic speed control and a robust guide for the motor, so it can be set up properly for each job. It suits workshops and contractors who do varied work.

What is the difference between a Morse taper and a quick-change fitting?icon-minus-redicon-plus-red

A Morse taper spindle holds twist drills, reamers and tapping adaptors on a tapered shank, which grips by friction and gives accurate running. A quick-change fitting is the common type for annular cutters, with a shank that locks in place and lets you swap cutters fast.

Some machines combine both, with a fitting for cutters and a taper for other tools. Check the spindle type before buying accessories.

Can a universal mag drill be used for tapping?icon-minus-redicon-plus-red

Many universal models support tapping, with a reversing function and slow speed, together with a suitable tapping attachment. Tapping needs slow, controlled speed and the right tap and lubricant, and the machine must be set up for it.

Check that your machine is designed for tapping before using it this way, and follow the manufacturer's instructions. Taps break easily if forced.

What are the advantages of a two-speed or electronic speed control?icon-minus-redicon-plus-red

Correct speed is the key to cutter life. Large cutters and twist drills need slower speeds, while small cutters run faster. A gearbox with more than one speed, or electronic control, lets you match the speed to the job.

The result is a better finish, less heat and longer life for cutters and tools, and it also lets you use the machine for reaming and tapping, which need slower speeds.
