Rapid Ref : 72381661000

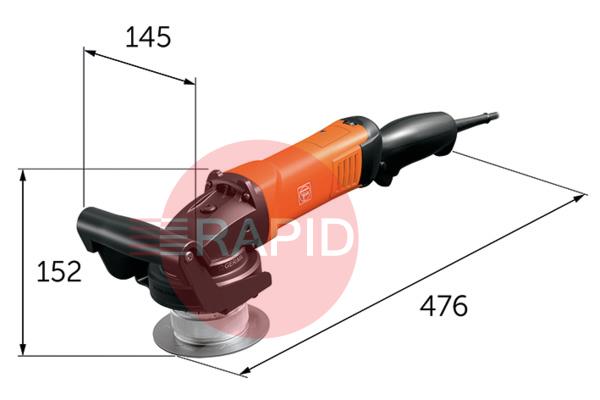

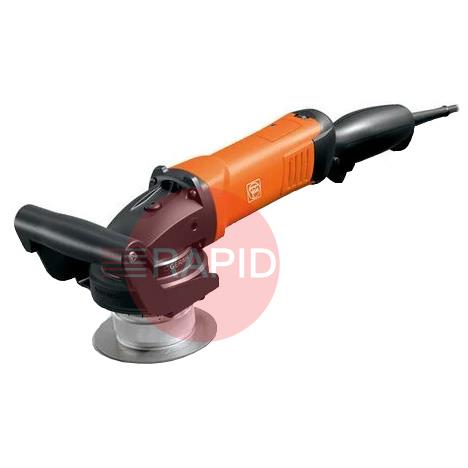

FEIN KFH 17-8 R 1700W 8mm Beveller - 230v
72381661000

£1482.71  EX VAT
SSP Suggested Selling Price = £2180.45  YOU SAVE £697.74
 Buy in 3 easy interest free payments of £494.24† with

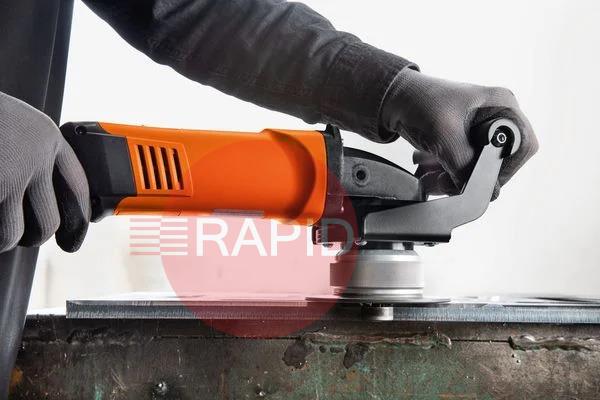

Beveller up to 8mm

Universal beveller with booster technology for perfectly preparing welded seams and preparing subsequent coatings.

  • Milling performance improved by 30 - 80% and vastly reduced vibrations thanks to new booster technology
  • FEIN ErgoGrip: unique, ergonomic concept of two-handed operation for fatigue-free working (patent pending)
  • Efficient quick-change cutter system for minimal interruptions
  • Effective material removal requiring little force
  • Extensive user protection features include soft start, restart protection, jam monitoring and electronic overload protection
  • Extensive range of accessories for various materials such as steel, stainless steel and non-ferrous metals
  • Above-average service life of the indexable inserts due to 8-fold or 16-fold usability

Product Details

Package Includes

1 tool (without milling head, without guide roller, without indexable tips), 3 x clamping screws SX, 1 x copper paste, 1 socket head wrench 5mm, 1 x TX 15 Torx screwdriver, and 1 plastic carrying case.

Specification

Input: 1,700W
Output: 1,000W
Speed, no load: 2,300 - 7,500rpm
Max. bevel length at 45°: 8mm
Max. bevel height at 45°: 5.7mm
Bevel angle: 30° / 37.5° / 45° / 60°
Radius: 2 / 3 / 4mm
Milling head configuration: 3x KX tip
Support plate diameter: 118mm
Cable with plug: 4m
Weight according to EPTA: 4.60Kg

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   FEIN KFH 17-8/15 Manual

FEIN Bevellers FAQs

Answers to common questions about choosing and using bevelling machines for weld preparation and edge finishing.

What bevel angle should I prepare for a butt weld?icon-minus-redicon-plus-red

The angle that matters is the included angle, because it has to allow the correct torch or electrode angle to reach the joint. A single bevel normally needs a wider angle than a double-V joint, where both plates are prepared. Experience has shown that about 45 degrees on a single bevel joint is usually sufficient.

Your weld procedure or drawing may call for a different angle, a root face or a particular gap, so always work to that rather than a general rule. Check which angles your machine can produce on its data plate and in the manual.

How can I reduce hand-arm vibration when using a beveller?icon-minus-redicon-plus-red

Regular exposure to vibration from hand-held power tools can damage the hands and arms. Early signs include tingling and numbness in the fingers, and fingers going white and then red and painful as they recover. Report these early.

To reduce the risk, limit the actual trigger time, service the machine and its cutting tips as the maker recommends, and do not grip harder than needed. The vibration figure in the manual helps your risk assessment, and the right tool for the job usually means less time spent on it.

Do I need hearing and eye protection when bevelling?icon-minus-redicon-plus-red

Hearing protection may well be needed, depending on how loud the work is and for how long. The HSE advises that it should not replace controlling noise at source, and it only works if it is worn throughout the noisy task, because removing it for a few minutes considerably lowers the protection. Avoid protectors that cut noise so far that you cannot hear warnings.

Eye protection is also sensible because swarf chips are thrown from the cutter. It should suit the task and fit the user properly. Gloves suitable for handling hot swarf and sharp edges are worth considering. Follow your risk assessment and the manual.

How should I look after a beveller?icon-minus-redicon-plus-red

Work equipment should be kept in efficient working order and good repair, and the HSE advises following the maker's maintenance instructions. Before each use, check the cable, plug or battery, guards and housing for damage, and make sure the cutting tips are secure and the head is free of packed-in swarf. After use, brush out the swarf and wipe the machine down.

Store it in its case in a dry place. Do not use a machine with damaged parts, and isolate it from the power supply or remove the battery before changing tips or making adjustments. Have faults dealt with by a competent person.
