Rapid Ref : 72704061241

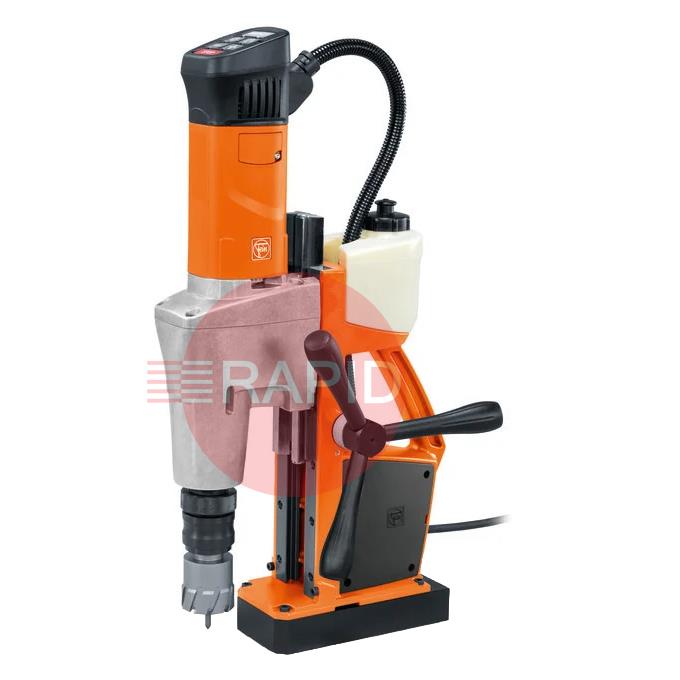

FEIN KBM 50 U Universal Magnetic Drill 50mm, with Morse Taper 3 - 110v
72704061241

£1750.00  EX VAT
SSP Suggested Selling Price = £1907.73  YOU SAVE £157.73
 Buy in 3 easy interest free payments of £583.33† with

Metal core drilling unit up to 50mm

Lightweight and powerful 2-speed universal magnetic core drill with clockwise/anti-clockwise operation, MT3 tool mounting and maximum functionality for flexible working in the workshop and on the construction site.

  • Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry and manual trades
  • Perfect power-to-weight ratio thanks to compact, weight-optimised design and FEIN 1200W high-power motor with tacho electronics for high-speed stability for reliable and economical working
  • With clockwise/anti-clockwise operation, electronic speed setting and a 315mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming
  • MT3 tool mounting
  • Simple operating concept avoids mix-ups and can be clearly seen by the user
  • Convenient magnetic holding force display helps the user to reliably position the tool
  • High magnetic holding force
  • Integrated coolant tank delivers long core drill bit lives
  • Feed handwheel can be moved from one side to the other
  • Speed saving "memory function"
  • Personal safety switch

Product Details

Package Includes

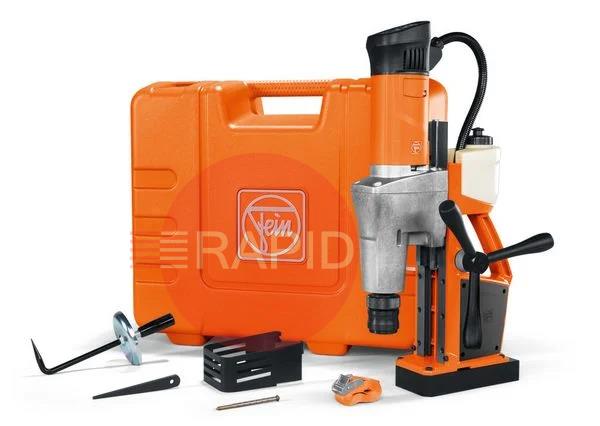

1 coolant tank, 1 centering pin, 1 lashing strap, 1 contact guard, 1 swarf hook, 1 drift key and 1 case.

Specification

Input: 1,200 W
Output: 610 W
Load speed in speed 1: 130 - 260 rpm
Load speed in speed 2: 260 - 520 rpm
Tool holder: MK 3
Carbide core drill bit max. Ø: 50mm
HSS core drill max. Ø: 40mm
Core drill, drilling depth max.: 50mm
Twist drill max. Ø: 23mm
Tapping: M 16
Countersinking max. Ø: 50mm
Reaming max. Ø: 23mm
Core drill holder: ¾ in Weldon
Changing the core bit: Tool-free
Stroke: 145mm
Total stroke range: 315mm
Cable with plug: 4m

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   FEIN KBM 50 / 65 Manual Instruction

Related Items

  • FEIN-HSS25 FEIN HSS Slugger Cutter, 25mm Depth

    FEIN HSS Slugger Cutter, 25mm Depth

    Rapid ref : FEIN-HSS25



    From £ 10.81 EX VAT


       Expand Options

  • FEIN-HSS50 FEIN HSS Slugger Cutter, 50mm Depth

    FEIN HSS Slugger Cutter, 50mm Depth

    Rapid ref : FEIN-HSS50



    From £ 13.71 EX VAT


       Expand Options

FEIN Universal Mag Drills FAQs

Straight answers to the questions people ask most when choosing and using high-specification universal magnetic drills.

What makes a magnetic drill universal?icon-minus-redicon-plus-red

A universal magnetic drill is built to do more than core drilling. As well as cutting holes with annular cutters, it can usually drive twist drills, and with the right accessories it can also tap, ream and countersink.

It normally has multiple speeds or electronic speed control and a robust guide for the motor, so it can be set up properly for each job. It suits workshops and contractors who do varied work.

What is the difference between a Morse taper and a quick-change fitting?icon-minus-redicon-plus-red

A Morse taper spindle holds twist drills, reamers and tapping adaptors on a tapered shank, which grips by friction and gives accurate running. A quick-change fitting is the common type for annular cutters, with a shank that locks in place and lets you swap cutters fast.

Some machines combine both, with a fitting for cutters and a taper for other tools. Check the spindle type before buying accessories.

What are the advantages of a two-speed or electronic speed control?icon-minus-redicon-plus-red

Correct speed is the key to cutter life. Large cutters and twist drills need slower speeds, while small cutters run faster. A gearbox with more than one speed, or electronic control, lets you match the speed to the job.

The result is a better finish, less heat and longer life for cutters and tools, and it also lets you use the machine for reaming and tapping, which need slower speeds.

How does the magnet affect safe working?icon-minus-redicon-plus-red

The magnet is what holds the machine in place, and its holding force depends on the steel's thickness, flatness and cleanliness. Thin or uneven material, rust, paint, swarf and air gaps all weaken the hold.

Clean the surface and the magnet face, switch on the magnet, and check it is holding before you start the motor. Use a safety strap where the machine could fall, such as overhead or vertical work, and where required by the instructions.
