Rapid Ref : 71380561000

FEIN AKFH 18-5 AS 18V Cordless Beveller w/ Basic Chamfer Set (Bare Unit)
71380561000

£1196.19  EX VAT
SSP Suggested Selling Price = £1759.09  YOU SAVE £562.90
 Buy in 3 easy interest free payments of £398.73† with

Cordless bevelling machine up to 5mm with user set

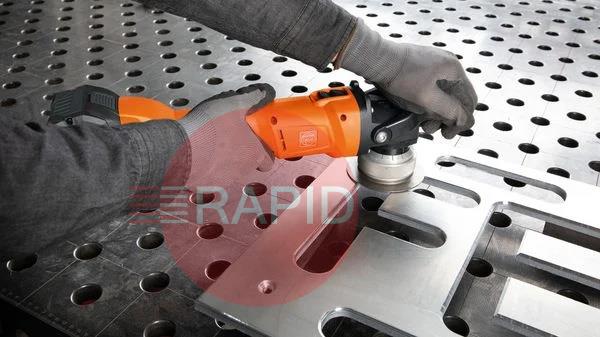

Powerful cordless bevelling machine coupled with optimum accessories to produce a 45° chamfer. For perfectly preparing subsequent coatings for flexible working in the workshop and on the construction site.

  • Unpack the tool and off you go! The set is designed to produce chamfers on flat materials, sheet metals and containers and to produce inner and outer edges as well as contours
  • High sanding capacity requiring little force and infinitely variable speed setting for different materials
  • Ergonomic thanks to low weight and compact design
  • Extensive user protection features include soft start, restart protection, jam monitoring and electronic overload protection
  • FEIN PowerDrive motor delivers good performance and long service life
  • Extensive user protection features include soft start, restart protection, jam monitoring and electronic overload protection
  • Compatible with all 18V AMPShare ProCORE batteries and chargers for even more power and flexibility. Also suitable for 18V Bosch Professional cordless devices
  • ProCORE Li-Ion battery with high-power cells, charge status indicator and “Electronic Cell Protection” (ECP). ECP protects against overload, overheating and total discharge
  • COOLPACK 2.0 technology delivers a 135% longer battery life and therefore makes longer operating times possible
  • Extensive range of accessories for various materials such as steel, stainless steel and non-ferrous metals
  • Above-average service life of the indexable inserts due to 8-fold or 16-fold usability
  • Ideally equipped for every job. Mobile working with the L-BOXX system

Product Details

Package Includes

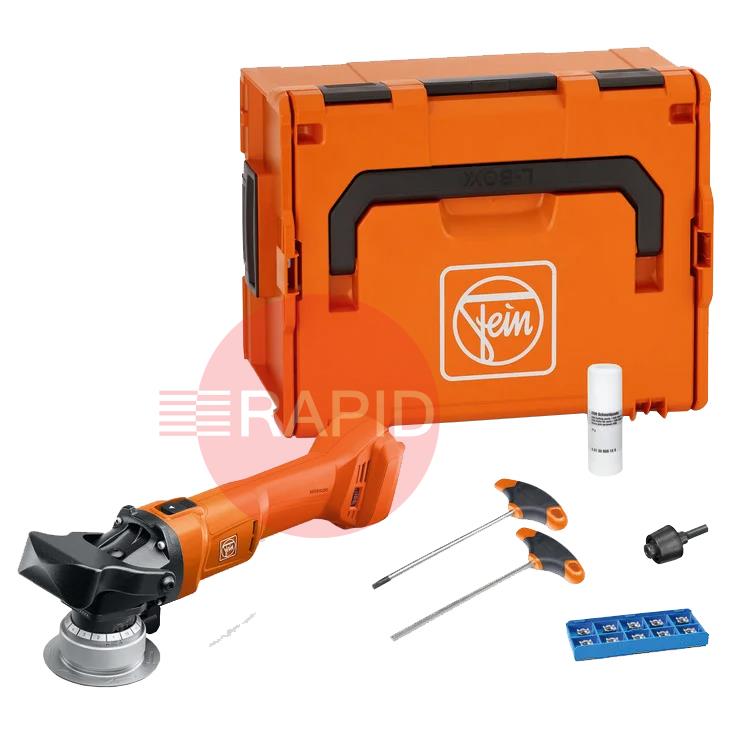

1 AKFH 18-5 AS including 45° milling head, 3 x clamping screws SX, 1 x 4mm socket head wrench, 1 x TX 15 Torx screwdriver, 1 cutting paste, 1 pack of 10 SX indexable tips (chamfer for universal use), 1 guide roller (21.69mm in diameter for 45° chamfers and a radius of 2.5mm), and 1 plastic tool case (L-BOXX 238).

Specification

Battery voltage: 18V
Battery compatibility: Li-ion / ProCORE Li-ion
Battery interface: 18V AMPShare
Speed, no load: 2,400 - 7,500rpm
Max. bevel length at 45°: 5mm
Max. bevel height at 45°: 3.5mm
Bevel angle: 45°
Radius: 1.2 / 2.5mm
Milling head configuration: 3x SX tip
Support plate diameter: 98mm
Weight without storage battery: 2.52Kg

Brochures & Manuals

Related Items

FEIN Bevellers FAQs

Answers to common questions about choosing and using bevelling machines for weld preparation and edge finishing.

Why bevel plate edges before welding?icon-minus-redicon-plus-red

Bevelling the plate edges gives the welder access to all parts of the joint, so good fusion can be achieved right through the weld. Without a bevel on thicker plate, the weld metal may only fuse at the surface and leave the root unwelded.

Whether a bevel is needed at all, and what shape it should be, depends on the plate thickness, the welding process and the weld procedure or drawing you are working to. If in doubt, follow the weld procedure for the job.

What bevel angle should I prepare for a butt weld?icon-minus-redicon-plus-red

The angle that matters is the included angle, because it has to allow the correct torch or electrode angle to reach the joint. A single bevel normally needs a wider angle than a double-V joint, where both plates are prepared. Experience has shown that about 45 degrees on a single bevel joint is usually sufficient.

Your weld procedure or drawing may call for a different angle, a root face or a particular gap, so always work to that rather than a general rule. Check which angles your machine can produce on its data plate and in the manual.

How can I reduce hand-arm vibration when using a beveller?icon-minus-redicon-plus-red

Regular exposure to vibration from hand-held power tools can damage the hands and arms. Early signs include tingling and numbness in the fingers, and fingers going white and then red and painful as they recover. Report these early.

To reduce the risk, limit the actual trigger time, service the machine and its cutting tips as the maker recommends, and do not grip harder than needed. The vibration figure in the manual helps your risk assessment, and the right tool for the job usually means less time spent on it.

How should I look after a beveller?icon-minus-redicon-plus-red

Work equipment should be kept in efficient working order and good repair, and the HSE advises following the maker's maintenance instructions. Before each use, check the cable, plug or battery, guards and housing for damage, and make sure the cutting tips are secure and the head is free of packed-in swarf. After use, brush out the swarf and wipe the machine down.

Store it in its case in a dry place. Do not use a machine with damaged parts, and isolate it from the power supply or remove the battery before changing tips or making adjustments. Have faults dealt with by a competent person.
