Rapid Ref : 71321061000

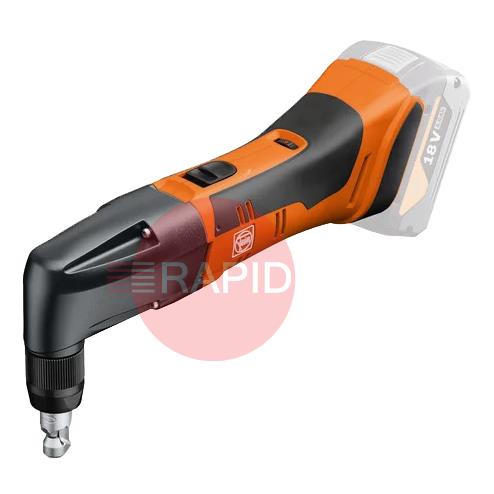

FEIN ABLK 18 1.3 CSE AS Cordless 18V Nibbler (Bare Unit)
71321061000

£433.00  EX VAT
SSP Suggested Selling Price = £590.45  YOU SAVE £157.45
 Buy in 3 easy interest free payments of £144.33† with

Cordless nibbler up to 1.3 mm

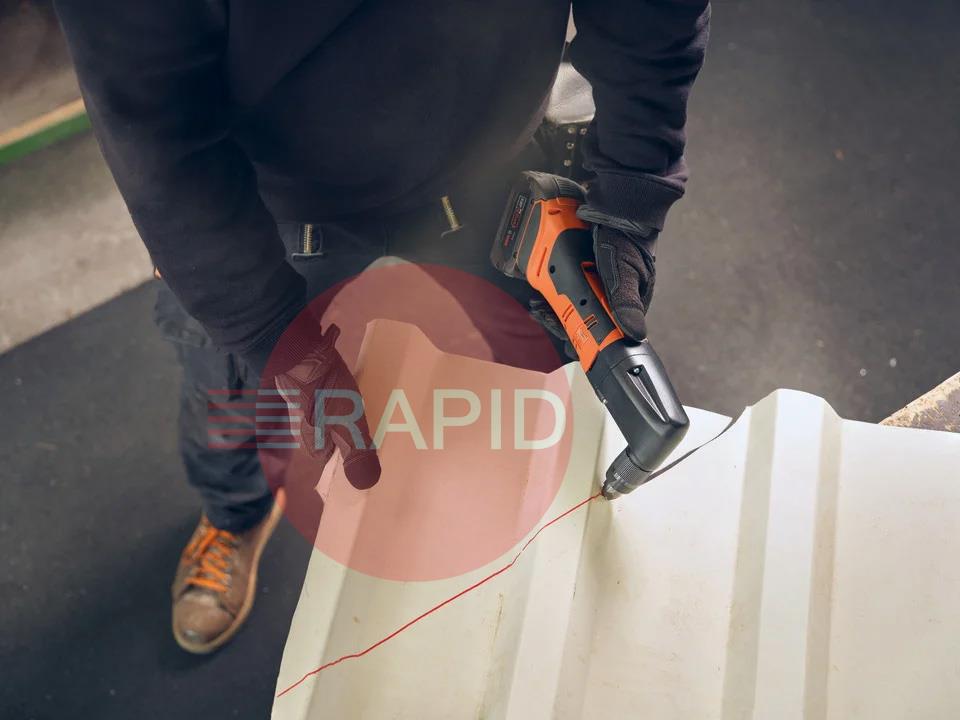

Compact and curve-compatible nibbler for roof and façade construction. Precise cuts in corrugated sheet metal up to 1.3 mm.

  • 66 m cutting capacity (in 0.8 mm sheet metal) with one battery charge (5 Ah).
  • Cutting direction setting can be changed in 45° steps up to 360° using tool-free pivoting cutting head.
  • Optimum handling due to extremely slim gearbox head.
  • 1.9 m/min cutting speed for excellent work progress.
  • Variable cutting speed due to electronically adjustable speed control.
  • Brief overlapping area up to 2.6 mm.
  • Rotating punch for a service life which is now up to 30 % longer.
  • Proven MultiMaster motor with outstanding performance and stability.
  • QuickIN quick change system for die and punch.
  • Low operating costs. Punch and die are replaced independently of one another.
  • Compatible with AMPShare/Bosch Professional 18 V batteries.
  • Maximum work progress with AMPShare 18V storage batteries: COOLPACK 1.0 technology ensures a longer storage battery life compared with batteries without COOLPACK technology and therefore makes longer operating periods possible. ECP protects the storage battery against overload, overheating and total discharge.
  • Ideally equipped for every job. Mobile working with the L-BOXX system.

Product Details

Package Includes

1 die for corrugated sheet metal (30109169009) fitted, 1 punch (63602050000), 1 tool case (L-BOXX 136)

Specification

Battery voltage: 18 V
Battery compatibility: Li-ion / ProCORE Li-ion
Battery interface: 18 V AMPShare
Strokes 1,200 - 6,500 rpm
Cutting speed: 1.9 m/min
Steel up to 400 N/mm²: 1.3mm
Steel up to 600 N/mm²: 0.8mm
Steel up to 800 N/mm²: 0.6mm
Non-ferrous metals up to 250 N/mm²: 2mm
Cutting width: 4mm
Immersion Ø with dire: 19mm
Rad. of smallest curve (inside/outside): 15/20mm
Weight w/o storage battery: 1.68kg

Brochures & Manuals

Related Items

FEIN Nibblers & Shears FAQs

Practical answers on choosing, using and looking after cordless nibblers and sheet metal shears.

Should I choose a nibbler or shears for cutting sheet metal?icon-minus-redicon-plus-red

It depends on the cuts you make most. A nibbler works like a punch and die, removing small chips of metal as it moves, so it copes well with tight curves, cut-outs and profiled or corrugated sheet, and it usually leaves the surrounding sheet flat.

Shears cut with two blades that slide past each other. They are generally quicker for long straight cuts in thinner sheet and make no chips, but some types curl or bend the sheet on one side of the cut. If you do a mix of work, many fabricators keep one of each. Our team can help you choose.

How thick a sheet can a cordless nibbler or shear cut?icon-minus-redicon-plus-red

There is no single figure, because the rated thickness depends on the tensile strength of the material as well as the tool. Harder, stronger steel can only be cut in thinner sheet than mild steel, and soft metals such as aluminium can usually be cut a little thicker.

The maker publishes a capacity table for each model, usually listed against several tensile strength bands. Many nibblers also have a gauge groove on the die holder, and the rule is not to attempt material that will not fit into it. Always work within the table on your tool's data plate or in its manual, and treat the rating as a maximum rather than a target.

Can these tools cut stainless steel and aluminium?icon-minus-redicon-plus-red

Nibblers and shears of this type are normally intended for sheet steel and stainless sheet steel, but stainless is tougher, so the maximum thickness is lower than for mild steel. Check the capacity table for your model and expect more vibration and wear when cutting stainless.

Aluminium and other soft metals can be cut, usually in a greater thickness than steel, but the chips tend to stick to the punch and die. Lubricating the cutting line with oil, as your manual describes, helps reduce this. Keep the cutting area free of other metals so you do not contaminate stainless sheet with steel particles.

How do I cut curves and internal cut-outs with a nibbler?icon-minus-redicon-plus-red

Nibblers are the usual choice for curves because the cutting head is compact and the sheet is not forced to one side. Every model has a minimum cutting radius, so check the manual for the tightest curve it will follow, and move the tool gently in the cutting direction rather than pushing hard.

For an internal cut-out you normally cannot start at an edge. Drill or punch a starting hole large enough for the cutting head to fit into, then nibble outwards to your marked line. Mark the line clearly and use the notch or cutting line indicator on the die holder to follow it.
