Rapid Ref : 71161461000

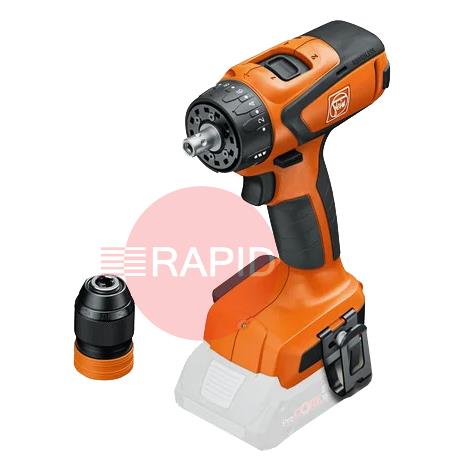

FEIN ASCM 18 QSW AS Cordless 4-Speed Drill/Driver (Bare Unit)
71161461000

£198.65  EX VAT
SSP Suggested Selling Price = £285.00  YOU SAVE £86.35
 Buy in 3 easy interest free payments of £66.22† with

4-speed cordless drill/driver

Small and light 4-speed cordless drill/driver with brushless motor and QuickIN interface. Perfectly suited to universal drilling and screwdriving.

  • 4-speed solid metal gearbox for optimum cutting speeds for drilling in metal and self-drilling screws up to 6mm
  • Enjoy the greatest versatility with the FEIN QuickIN system. Work at speed in metal and timber with just one tool
  • With the compact and lightweight design, weighing 1.3Kg, the ASCM 18 QSW is the lightest 4-speed drill/driver in its sector
  • Brushless FEIN PowerDrive motor with 30% higher efficiency and long service life
  • QuickIN solid metal drill chuck (120Nm) with carbide-tipped clamping jaws and high clamping forces
  • Mechanical torque setting
  • The AMPShare interface makes almost 100% more screw connections (approx. 1100, diameter of 5 x 40mm in timber) possible per battery charge with the same level of FEIN quality. (ProCORE 4 Ah)
  • Extensive user protection features include restart protection, electronic overload protection and brake
  • Bit and belt holder on the side for ergonomic and flexible handling
  • Compatible with Bosch Professional 18V batteries (available since 2008) and AMPShare batteries
  • Maximum work progress with AMPShare 18V ProCORE batteries: COOLPACK 2.0 technology delivers a 135% longer battery life. State-of-the-art cell technology and intelligent battery management deliver 87% more power than conventional batteries. “Electronic Cell Protection” (ECP) protects the battery from overload, overheating and total discharge
  • Ideally equipped for every form of use. Mobile working with the L-BOXX system

Product Details

Package includes

1 QuickIN drill chuck (120Nm), 1 belt clip, 1 magnetic bit storage, and 1 tool case (L-Boxx 136).

Specification

Battery voltage: 18V
Battery compatibility: Li-ion/ProCORE Li-ion
Battery interface: 18V AMPShare
Motor: Brushless
Gearbox: 4-speed
Accessory interface: QuickIN
Speed, no load: 400 / 700 / 1,400 / 2,500rpm
Max. torque (hard/soft): 40 / 30Nm
Torque levels: 20 + 1

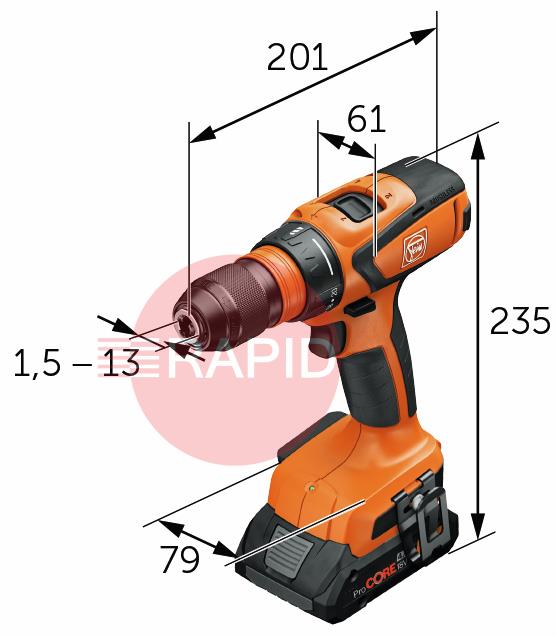

Drill chuck clamping width: 1.5 - 13mm
Fastening: 8 x 200mm
Capacity in steel Ø: 13mm
Capacity in wood Ø: 40mm
Tapping: M 8
Weight without storage battery: 1.30Kg

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   FEIN ABS18 Q AS Manual Instruction

Related Items

FEIN Drill/Drivers FAQs

Practical answers on choosing and using 18 V cordless drill/drivers for metalwork, tapping and screwdriving.

What does the clutch do, and how do I set it?icon-minus-redicon-plus-red

The clutch is the numbered collar behind the chuck. In screwdriving mode it limits the torque applied, and the drive disengages with a clicking sound once the set torque is reached, which helps prevent overdriving screws or snapping small fasteners. Lower numbers give less torque and higher numbers give more.

A sensible method is to start low and work upwards on a scrap piece until the fastener seats properly. The drill symbol on the collar bypasses the clutch so the tool gives its full torque, which is the setting for drilling holes. Remember the clutch is a guide rather than a precision torque tool, so use a proper torque wrench where a specified tightening torque matters.

What do the different gears or speed ranges mean?icon-minus-redicon-plus-red

Multi-speed drill/drivers have a gearbox that trades speed for torque. The lowest gear gives high torque at low speed and suits heavy-duty work such as large drill bits, hole saws, tapping and driving big fasteners. Higher gears give faster rotation and lower torque for smaller drill bits and light work.

As a rule, bigger diameters need slower speeds, and tough materials such as stainless steel need slower speeds than mild steel. Only operate the gear selector when the tool is not running, because shifting while it turns can damage the gearbox, and push the selector fully home. The manual and data plate give the speed ranges for your tool.

How should I charge and look after the battery?icon-minus-redicon-plus-red

Use the charger supplied with the battery or one the manufacturer recommends. The wrong charger can overload a battery and raise the risk of overheating and fire. Unplug the charger once the battery is full rather than leaving it on continuous charge, and do not leave batteries charging unattended or overnight.

If a battery has been dropped, or shows overheating, swelling or other damage, stop using it, do not charge it, and dispose of it safely. Keep charging areas clear of escape routes and flammable materials. Your risk assessment and the manufacturer's instructions cover storage and transport rules for your workplace.

How do I drill stainless steel without ruining the bits?icon-minus-redicon-plus-red

Stainless steel work hardens when heat builds up from the wrong speed or from rubbing, so the aim is to keep the bit cutting. Use a sharp bit made for tough metals (cobalt bits are commonly used because the cobalt runs right through the bit), a low speed, steady feed so you see continuous chips, and plenty of cutting oil or coolant. Do not let the bit dwell or rub in the hole, and stop regularly to re-apply oil if you cannot keep it flooded.

For larger holes it often helps to start with a smaller hole and step up. A blunt bit pushes you to press harder and generate more heat, so replace or resharpen bits as soon as they stop cutting freely. Exact speeds depend on the grade and bit size, so check the bit maker's guidance.
