Rapid Ref : 08800X-T45V

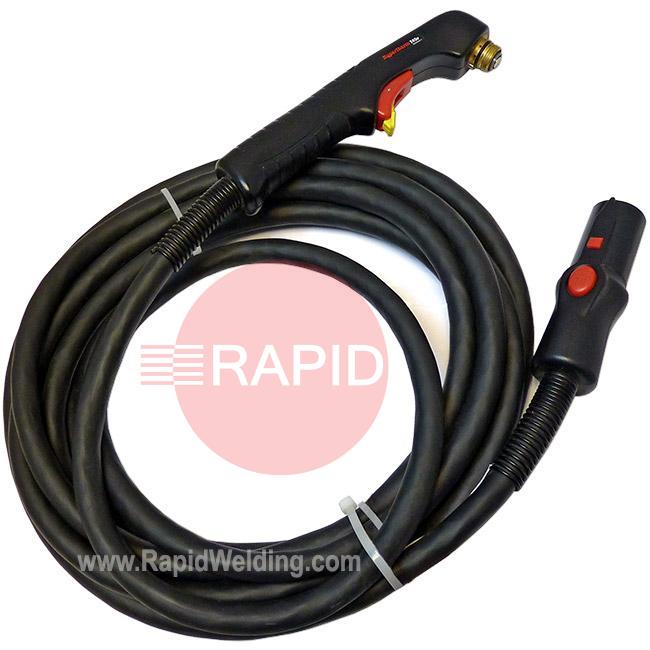

Hypertherm T45V Hand Torch Assembly, for Powermax 45
08800X-T45V

Name: Hypertherm T45V Hand Torch Assembly, for Powermax 45
SKU: 08800X-T45V

Select Option

Prices From £621.25 ex VAT

Shop Parts

Powermax 125 Machine Systems FAQs

Straight answers to the questions people ask most when choosing a top-end plasma system for mechanised cutting.

What do the connections on a machine plasma system do?

A machine plasma system usually has a control connection for the table or robot controller. It lets the controller start and stop the arc and receive signals such as arc transfer. Many systems can also supply a reduced arc voltage signal for a height controller, and some have a serial or network connection for digital control and status information. Some provide remote on/off.

The connections and signals provided differ between makers and models, so check the manual for your machine and confirm that your controller expects the same signals and cables before you buy.

How does torch height control work?

A height controller reads the arc voltage and raises or lowers the torch to keep a constant gap between torch and plate. This keeps cut quality and bevel angle consistent as plate warps, and extends consumable life.

It needs a stable voltage signal from the plasma system, so check that your system and controller support each other, and test on scrap plate first.

What supply and air do I need?

The data plate and manual give the input voltage, number of phases and current drawn. Higher-power machine systems commonly need a three-phase supply, but this varies, so do not assume. The supply, protective device and cabling must suit the figures on the plate and should be installed or checked by a qualified electrician.

The system also needs a good flow of clean, dry compressed air at the pressure and flow rate stated in the manual. Use a properly sized compressor, filter and moisture separator, with a dryer for heavy use, and check pressure with air flowing.

How do I get a clean, square edge?

Edge quality depends on current, travel speed, stand-off height, consumable condition and air quality. Use the maker's cut chart as a starting point, then adjust on scrap plate. Slow speeds leave dross and fast speeds leave it trailing behind.

Remember that plasma edges have a natural slight angle, and worn consumables make it worse. Replace them early.

See all 6 questions for this category
