Rapid Ref : 420135

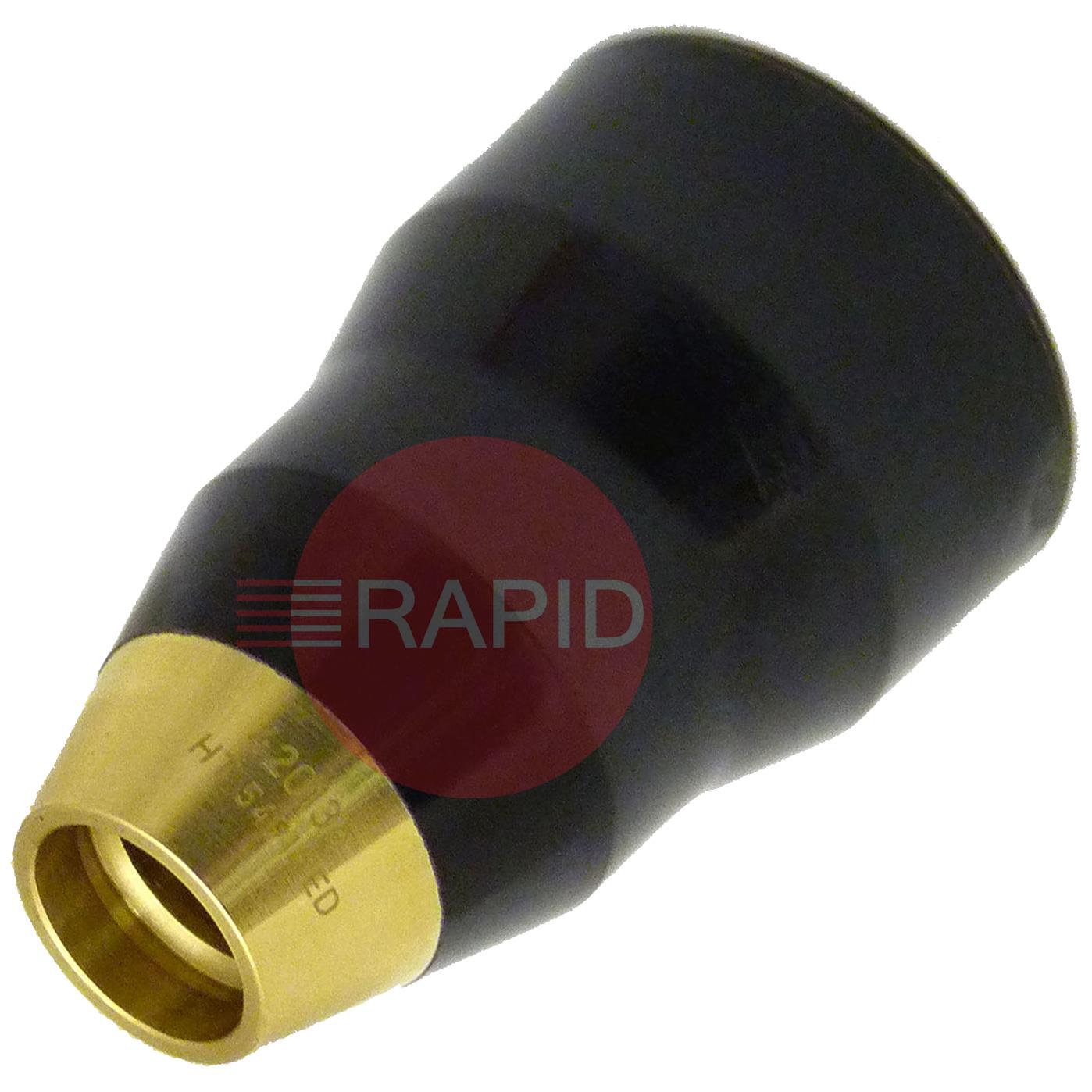

Hypertherm Retaining Cap, for Powermax AIR T30 (30A)
420135

Name: Hypertherm Retaining Cap, for Powermax AIR T30 (30A)
SKU: 420135
Price: 31.20 GBP

£31.20 EX VAT

SSP Suggested Selling Price = £39.00 YOU SAVE £7.80

Buy in 3 easy interest free payments of £10.40^† with

Powermax 30 AIR / AIR T30 FAQs

Answers to common questions about the consumable parts used in a 30 amp air plasma hand torch.

What do the different torch consumables actually do?

The electrode carries the current and starts the arc, and the nozzle focuses the arc and gas into a narrow cutting stream. The swirl ring spins the gas around the arc, which helps keep the arc stable and cools the nozzle. The retaining cap holds the set together and helps direct the gas, and a shield or deflector protects the front end from molten metal thrown back during the cut.

The exact parts and how they fit vary by torch, so check your torch's manual for the correct set.

How do I know when to replace the electrode?

Look at the tip of the electrode. Over time the small insert in the centre erodes and leaves a pit. Makers give a pit-depth limit for each electrode type, so use the figure in your manual. A pit that is deep, uneven or wider than the insert means the electrode and nozzle should be replaced. Running on past that point can damage the nozzle and torch.

Poor starting, a drop in cut quality or a green-tinged arc can also point to worn parts or to moisture and oil in the air supply, so inspect the parts and check the air. The maker's manual gives the wear limit for your torch.

Why should I change the electrode and nozzle together?

They work as a pair and wear together, and a new electrode in a worn nozzle often gives inconsistent results. Many guides say to replace both as soon as either is worn, rather than waiting for the other to fail.

It is also worth inspecting the swirl ring and retaining cap at the same time, since a cracked or damaged part there can spoil the cut. If cut quality drops, change the electrode and nozzle as a set before looking for other causes.

How can I tell if the nozzle is worn out?

Cut quality is usually the first clue: a wider kerf, more dross and a less focused arc. Inspect the nozzle itself. An orifice that is enlarged, irregular or out of round needs replacing, as does one with oxide residue or gouging inside or outside the nozzle.

Nozzles wear faster if the tip is touched to the work, the material is too thick for the machine, or the air is wet. Hand cutting often wears the nozzle first, though this varies, so check both parts regularly.

See all 6 questions for this category
