Rapid Ref : 75340800000

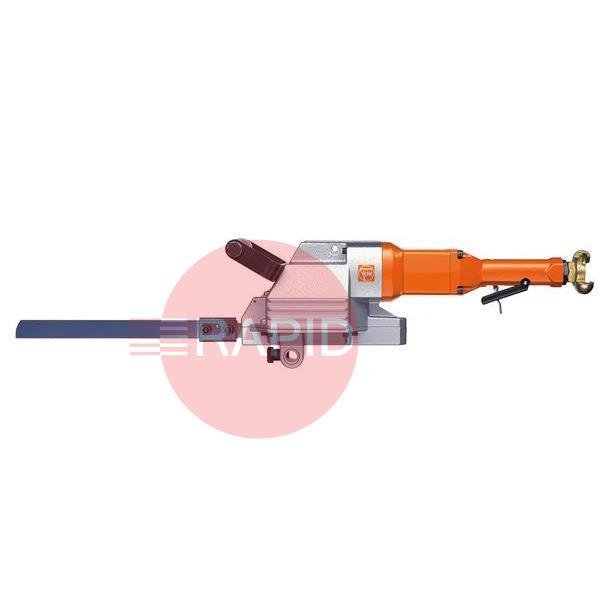

FEIN STS 325 R Pipe Saw (Up to Ø 440mm) - 6.0 Bar Pneumatic
75340800000

£2890.00  EX VAT
SSP Suggested Selling Price = £3940.91  YOU SAVE £1050.91
 Buy in 3 easy interest free payments of £963.33† with

Hacksaws for pipes up to Ø 440mm

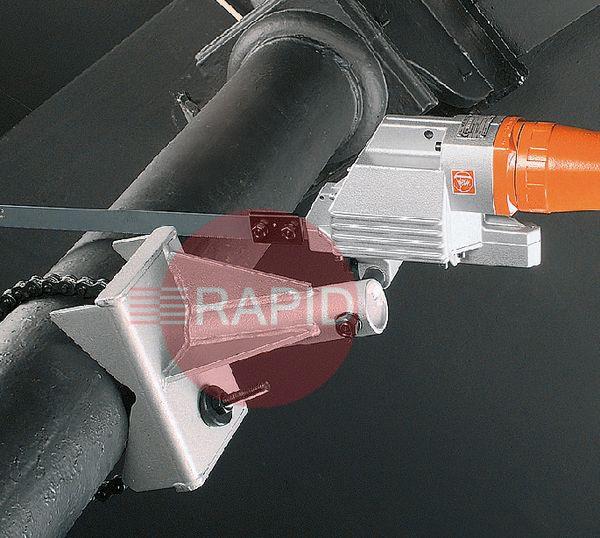

Compressed air hacksaw for pipes and profiled sections.

  • Ideally suited for trimming pipes and shaped sections made of steel, cast iron, autoclaved aerated concrete and plastics
  • Clamp and feed device available for profiles and pipes from Ø 80mm to Ø 400mm
  • Adjustable clamping devices permit mitre cuts up to 45° as well
  • Clamp and feed device
  • Adjustable clamping fixtures

Product Details

Package Includes

2 saw blades, 1 set of keys, 1 additional handle, and 1 hose coupling.

Specification

Operating pressure: 6 bar
Air consumption: 1.5 m³/min
Output: 1,100W
Strokes: 330rpm
Stroke of blade: 60mm
Pipes up to Ø: 440 *mm
Profiles up to W x H: 290x500mm
Weight according to EPTA: 7.20Kg

* With chain extension.

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   FEIN STS 325 R Manual Instructions

Related Items

FEIN Pipe Saws FAQs

Answers to common questions about air-powered pipe saws for cutting pipe and tube to length on site or in the workshop.

How do I get a square cut and make the blade last longer?icon-minus-redicon-plus-red

Support and guide the blade. A blade guide that spans the pipe steadies the blade so it does not whip or vibrate, and makers of air saws say this extends blade life, squares the cut and helps avoid accidental blade breakage. A chain or clamp that locates the saw on the pipe helps keep the cut at right angles.

Clamp the pipe or the tool securely, let the blade cut at its own pace rather than forcing it, and support the pipe so the cut does not pinch the blade near the end. A pinched or twisted blade wears quickly and can break.

Why is my air saw running slowly or losing power?icon-minus-redicon-plus-red

The usual cause is not enough air reaching the tool while it is working. A hose with too small a bore or too great a length loses pressure through friction, and kinks, restrictive couplings, filters and other accessories each add to the loss. Pressure read with the tool idle can look correct and then fall sharply once the saw is running, so it is better to judge it at the tool inlet under load.

Also consider a compressor that cannot keep up with the tool's air consumption, a regulator set too low, or water and dirt in the filter. If the supply is sound, a worn blade or a tool that needs servicing may be the cause. Check the manual for the air pressure and flow the tool needs.

Does an air saw need a filter, regulator and lubricator?icon-minus-redicon-plus-red

Air tool makers generally recommend all three. A filter keeps water and particles out of the air motor, which reduces wear and helps the tool hold its power and speed over time. A regulator lets you set the working pressure, and one regulator per tool is a common recommendation. A lubricator meters a little oil into the air to protect the motor.

They are normally fitted in that order, close to the tool. Not every tool needs added oil, so use the lubrication method and the oil type given in the tool's manual, and follow the maker's service instructions.

Can an air-powered pipe saw cut stainless steel, and how do I get the best result?icon-minus-redicon-plus-red

Many are used on stainless steel pipe, provided the blade is suitable for stainless and the maker's wall thickness and diameter limits are respected. Stainless is difficult to saw: trade guidance says it usually calls for a lower blade speed with a firm, steady feed so the teeth bite and cut instead of rubbing, and a rubbing blade work-hardens the surface and dulls quickly.

Change the blade as soon as it stops cutting freely rather than pushing harder. To avoid contaminating the stainless and harming its corrosion resistance, do not use tools, brushes or discs that have been used on carbon steel, and keep carbon steel dust and offcuts away from the stainless.
