Rapid Ref : 72232460000

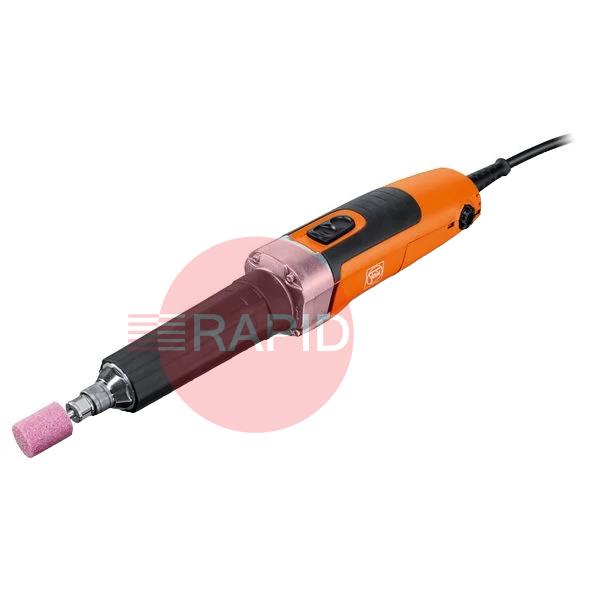

FEIN GSZ 4-280 EL 170W Long Neck Die Grinder, for Light Grinding & Deburring - 230v
72232460000

£239.00  EX VAT
SSP Suggested Selling Price = £325.91  YOU SAVE £86.91
 Buy in 3 easy interest free payments of £79.67† with

Straight grinder 28,000/min

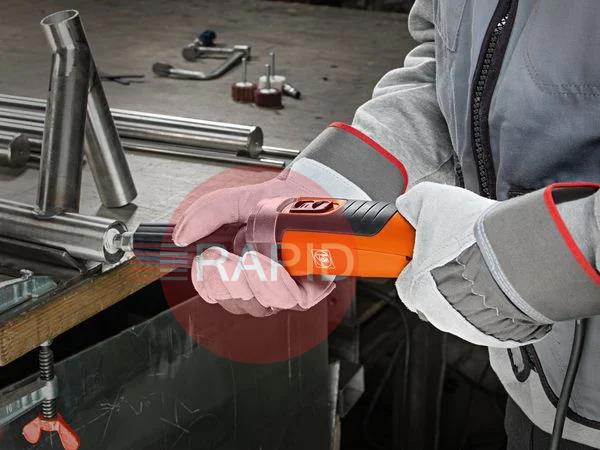

Extremely ergonomic die grinder with high plunge depth for light grinding and deburring in difficult-to-reach spots.

  • Long narrow neck and a maximum diameter of 210mm allow the tool to plunge a long way into workpieces (e.g. grinding inside pipes)
  • Innovative collets with all-round flange to protect the workpiece and prevent the wrench from sliding off during tool changes
  • Variable speed allows different tools to be used
  • Motor and electronics protected against metal dust
  • Variable speed allows different tools to be used

Product Details

Package Includes

1 collet Ø 6 mm, Jaw spanner SW13 and Jaw spanner SW17.

Specification

Input: 350 W
Output: 170 W
Speed, no load: 13,000 - 28,000 rpm
Grinding wheel for max. Ø: 20mm
Collet for max. Ø: 6mm
Collar Ø: 43mm
Max. cutter diameter: 12mm
Cable with plug: 5m
Weight according to EPTA: 1.50Kg

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   Fein GSZ 4/8/11 Manual Instructions

Related Items

FEIN Long Neck Die Grinders FAQs

Answers to common questions about choosing and using long neck die grinders for deep, internal and hard-to-reach grinding work.

Which accessories can I fit, and how do I choose between wheels, burrs and cutters?icon-minus-redicon-plus-red

Die grinders take small mounted grinding points, rotary burrs and cutters, abrasive sleeves, flap wheels and polishing accessories, up to the maximum sizes in the maker's data. The accessory must suit the tool, so check its shank and its speed rating before you fit it.

As a general guide, grinding wheels and points are used on hard materials such as steel, while rotary cutters suit softer materials such as aluminium, brass, copper and wood. Using a grinding wheel on a soft material can overload it and may cause it to break up. Use each accessory only for the jobs its maker recommends.

How do I match the collet to the accessory shank?icon-minus-redicon-plus-red

The collet size must match the shank of the accessory, so check the collet size marked on the grinder or given in the manual and buy shanks to suit. Metric and imperial sizes that look alike are not the same, and some grinders take more than one collet size with a change of collet.

A shank that does not match the collet will wobble and vibrate and can lead to loss of control. Push the shank fully into the collet as the manual instructs, tighten the nut firmly without over-tightening it (too much force can damage the collet or the accessory), and always disconnect the power or remove the battery before changing anything.

What is overhang on a mounted point, and why does it matter on a long neck grinder?icon-minus-redicon-plus-red

Overhang is the length of spindle that sticks out between the collet and the abrasive point. The safe speed for a mounted point depends on its shape and size, the spindle diameter and the overhang. A long exposed spindle can bend, and an overspeed or bent spindle can throw the point, which has caused serious eye and face injuries.

Keep the overhang as short as practical, and do not exceed the maximum speed the maker gives for that point and overhang. A long neck grinder does not change this rule: it only moves the collet further from the motor. If you need unusually long spindles, ask the accessory maker for guidance.

Does the speed rating on the accessory matter, and how does variable speed help?icon-minus-redicon-plus-red

Yes. The speed marked on the accessory should be at least as high as the no-load speed of the grinder, otherwise the accessory can shatter in use. Never fit an accessory with a lower rating than the maximum speed of the tool.

Variable speed lets you bring the grinder down to a speed that suits the accessory and the material, which gives you more control and helps limit heat. Lower speeds are generally used for larger wheels, polishing accessories and heat-sensitive materials, higher speeds for small burrs. Follow the speed guidance for each accessory and the grinder's manual.
