Rapid Ref : KP14016-1.2A

Lincoln Drive Roll for 2 Roll Powertec Machines
KP14016-1.2A

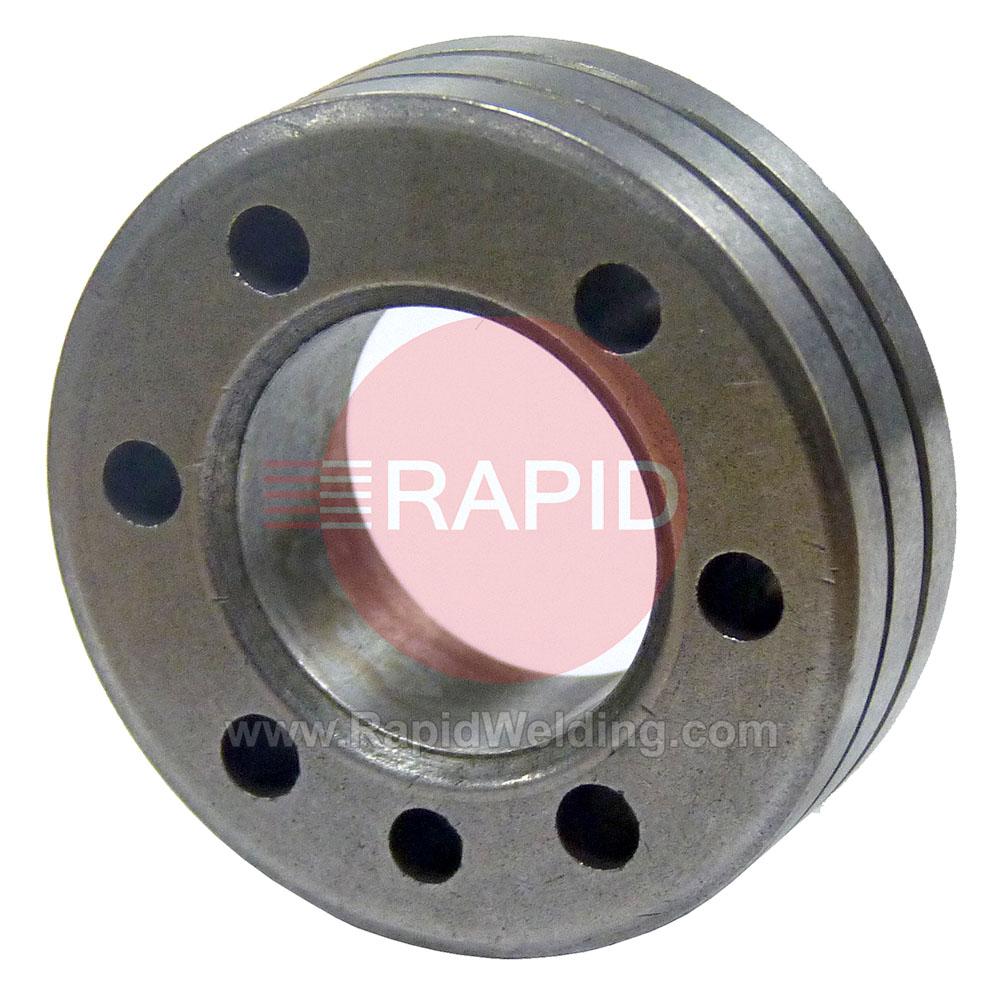

Name: Lincoln Powertec Drive roll kit (2 roll drive) 1.0-1.2 mm alu wire
SKU: KP14016-1.2A
Price: 31.30 GBP

Select Option

£31.30 EX VAT

SSP Suggested Selling Price = £34.75 YOU SAVE £3.45

Buy in 3 easy interest free payments of £10.43^† with

Lincoln Bester 215MP Parts FAQs

Practical answers on the torch consumables, wire feed parts and holder spares used with a multi-process MIG welder, and how to match them to your machine.

Why must the contact tip match the wire size?

The bore is made only slightly larger than the wire so that the wire makes good electrical contact as it passes through. Running a smaller wire through an oversize tip limits current transfer and causes constant micro-arcing inside the tip, which wears it out early. An oversize bore also hurts current pick-up, so tips should be replaced when wear is excessive.

So check the wire diameter on the spool and use a tip marked for that diameter, and the thread and length your torch takes. Look at the markings on the tip and in the torch manual.

How tight should a contact tip be, and does it matter?

It matters a lot. A tip that is loose, or not sitting flat on its holder, gives a poor electrical connection, which makes it overheat and wear quickly. The tip should sit flat on the tip holder with the threads in full contact, tightened with a suitable tool.

As a rule, screw it in by hand and then snug it with the correct tip tool; over-tightening can damage the tip or the holder. Do this with the torch cold and the machine isolated, and make sure the tip, holder and diffuser are all clean and fully seated before you start welding.

When should I clean or replace the gas nozzle?

The nozzle directs the shielding gas over the weld, so spatter inside it can restrict the gas flow or make it turbulent, which can cause porosity in the weld. Clean it regularly for this reason. Replace the nozzle if it is bent, damaged or has spatter that can no longer be removed.

Clean it with the machine off and the torch cold, using an anti-spatter product or a soft wire brush rather than scraping with pliers, and do not hit it to knock spatter off, as that can deform it and damage the parts behind it. Use a nozzle rated for the current you weld at, because a nozzle used above its rating can break down from overheating.

How do I choose the right liner for my wire?

The liner guides the wire from the feeder to the contact tip and must suit both the wire material and its diameter. Hard wires such as steel and stainless generally use a spirally wound steel liner, while soft wires such as aluminium and copper generally use a PTFE liner. A liner with too large a bore gives the wire too little support, so it can fold and tangle in the feeder.

So choose by wire type first, then by the diameter range printed on the liner, and make sure it is long enough for your torch. Do not rely on colour codes alone, as these can differ between makers. Check the torch manual for the liner type it takes.

See all 6 questions for this category
