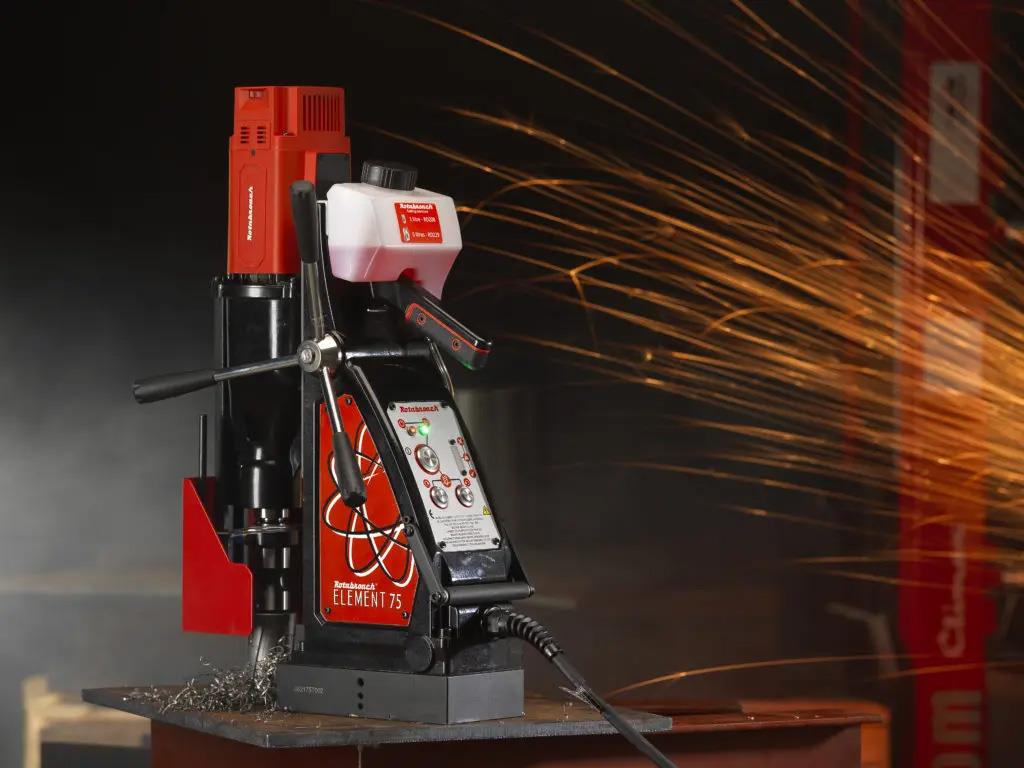

The Element 75 is a heavy duty machine for the drilling of larger holes, it is compact, durable and more portable than other larger machines. It is suitable for drilling up to 75mm diameter by 75mm depth. The Element 75 offers forward and reverse functionality. The range also features a unique dual motor protction system prolonging the machines life and preventing unwanted wear.
Specification
Motor specification: 230v 1800W
No load RPM: Low gear 70 - 80 RPM / High Gear 200 - 500 RPM
Max Hole Cutting Capacity: 75 x 75mm Deep - 26mm with 3MT drill
Dimensions: Height 545mm Width 230mm (with capstan) Length 460mm with Guard
Weight: 23.8kg
Magnetic Adhesion: 18,500N
Magnet Size: 220mm x 114mm
