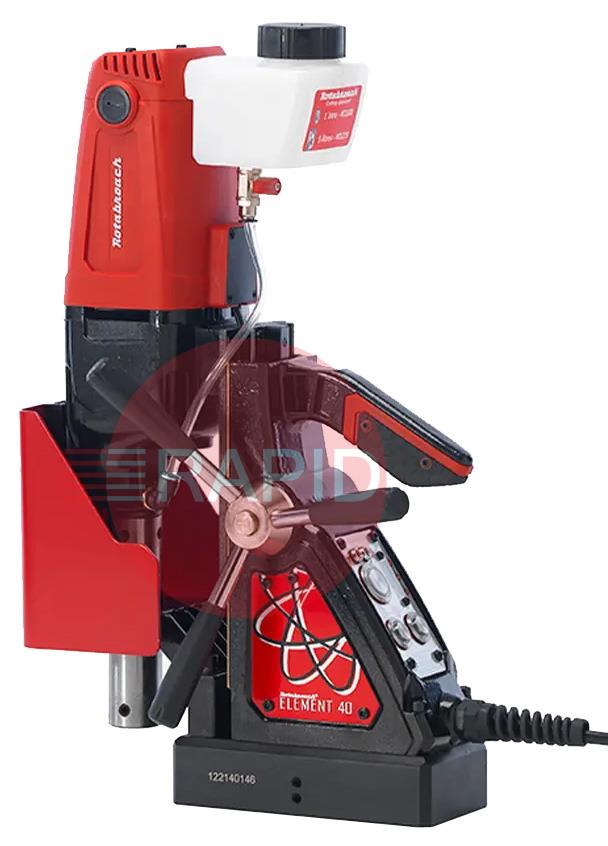

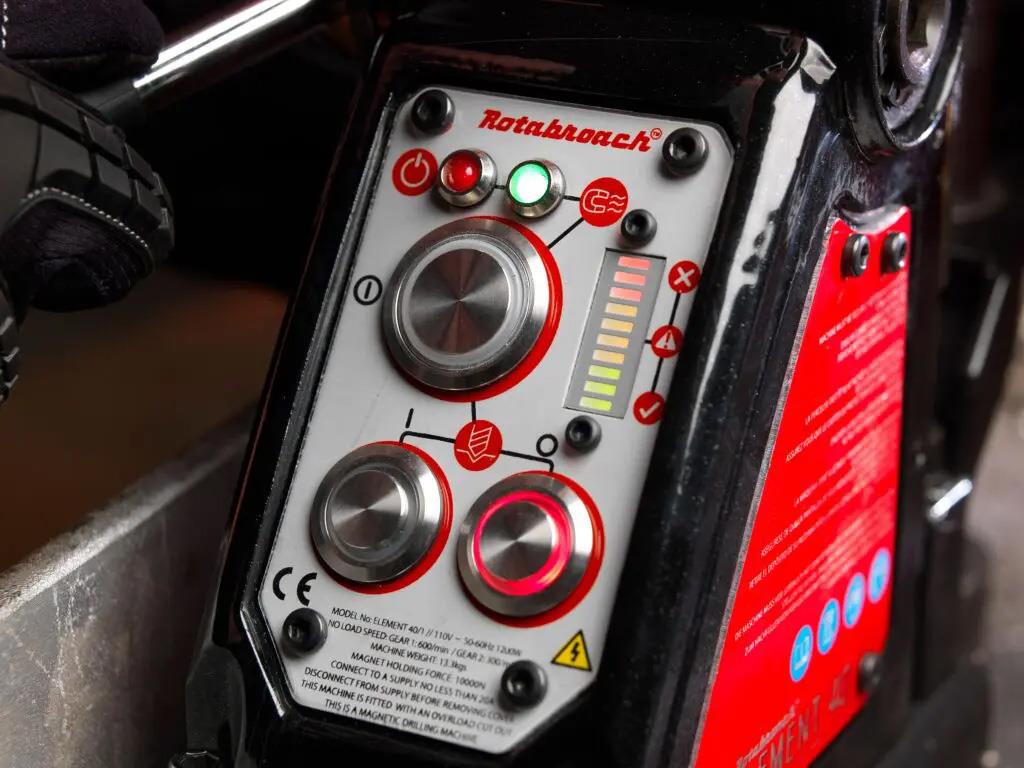

The new Rotabroach Element 40 magnetic drill is a combination of power and portability. The Element 40 is manufactured with a powerful, two speed mechanical gear box, optimising the machines performance throughout its capacity range. Although small in size and weight the Element 40 revels in heavy duty industrial and fabrication work in the harshest of environments.New features include a user fiendly control panel and a lightweight aluminium body weighing just 12kg in total. The capstan has a quick release design allowing the easy transfer, for operation from the other side of the machine.
Features
- Powerful Motor - increased 1200W motor power for greater efficiency
- Mounted bottle - In line bottle to save space when operating in small areas
- Ergonomic carry handle
- Two Speed Gearbox
- ?40 x 50mm hole cutting capacity

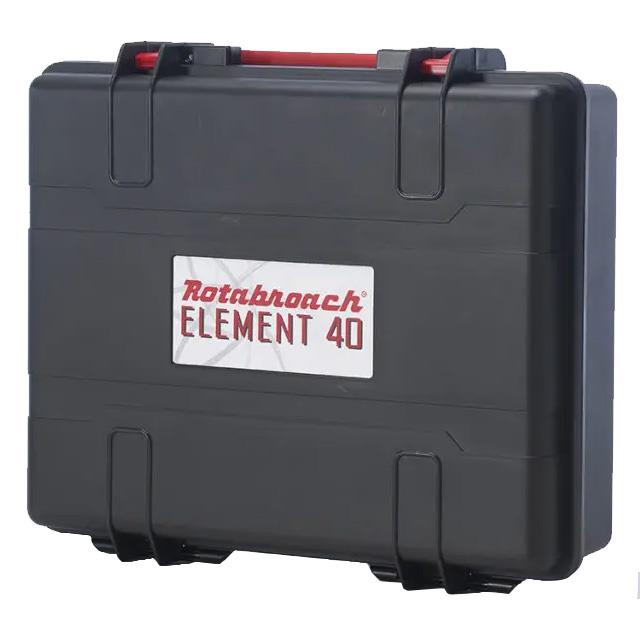

- Comes complete with carry case and accessories
Specification
Motor Specification: 230v full load 6 amps 1200W
No Load RPM: Gear one 600 RPM, Gear two 300 RPM
Max hole cuting capacity: 40mm dia x 50mm Deep
Overall dimensions: 510mm H x 175mm W x 285mm L
Weight: 12.2kg
Magnetic adhesion: 8000N
Safety Features: Cutsmart ™ Technology, Fixed Guard, Interal cable, Flush switches, Mechanical clutch
