Rapid Ref : 71400361000

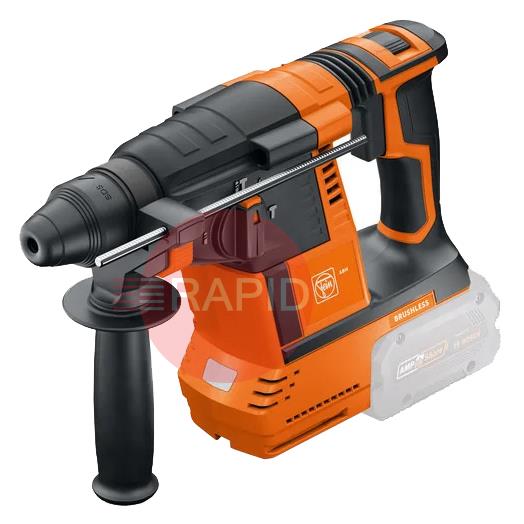

FEIN ABH 18-26 AS Cordless 18V Rotary Hammer Drill
71400361000

£269.00  EX VAT
SSP Suggested Selling Price = £366.82  YOU SAVE £97.82
 Buy in 3 easy interest free payments of £89.67† with

Cordless rotary hammer drill

With SDS plus and an impact energy of 2.6 joules for drilling up to 26 mm in concrete.

  • The powerful, brushless motor delivers 2.6 joules of impact energy and ensures rapid drilling progress as well as high chisel grinding capacity.
  • Kickback monitoring with intelligent rapid shutdown should the hammer drill kick back suddenly for optimum user protection.
  • Electronic Precision Control (EPC) slowly ramps up the working speed for perfect handling and control when working with sensitive materials and challenging surfaces.
  • Simple and precise speed control using the throttle.
  • Fatigue-free working thanks to compact design and few vibrations.
  • Change the chisel position (Vario-Lock) – lock the chisel in 36 positions for the optimum working position every time.
  • Bright working area thanks to integrated LED light.
  • Clamps or hooks the bit if the drive to the drill spindle is interrupted.
  • Compatible with Bosch Professional 18 V batteries and AMPShare batteries.
  • Maximum work progress with AMPShare 18V ProCORE batteries: COOLPACK 2.0 technology delivers a 135% longer battery life. State-of-the-art cell technology and intelligent battery management deliver 87% more power than with conventional batteries. “Electronic Cell Protection” (ECP) protects the battery from overload, overheating and total discharge.
  • ProCORE Li-Ion battery with high-power cells, charge status indicator and “Electronic Cell Protection” (ECP). ECP protects against overload, overheating and total discharge.
  • Ideally equipped for every form of use. Mobile working with the L-BOXX system.

Product Details

Package includes

1 handle, 1 depth stop, 1 tool cloth and 1 tool case (L-Boxx 136).

Specification

Battery voltage: 18 V
Battery compatibility: Li-ion / ProCORE Li-ion
Battery interface: 18 V AMPShare
Motor: Brushless
Speed, no load: 0 - 980 rpm
Impacts: 0 - 4,350 rpm
Impact energy: 2.6 J
Tool holder: SDS-PLUS
Hole diameter, concrete: 26mm
Hole diameter, masonry: 68mm
Capacity in steel Ø: 13mm
Capacity in woodØ: 30mm
Weight without storage battery: 3.20Kg

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   FEIN ABH 18-26 AS Manual Instruction

Related Items

FEIN Rotary Hammer Drills FAQs

Straight answers on choosing, using and looking after a rotary hammer drill for drilling concrete and masonry.

What is the difference between a rotary hammer and an ordinary hammer drill?icon-minus-redicon-plus-red

A hammer drill gets its hammering from two ridged discs that ratchet against each other, giving very fast, shallow blows. A rotary hammer uses a piston that drives a striker onto the back of the bit, so the blows are slower but much heavier. That is why a rotary hammer is the usual choice for larger holes in concrete, for drilling through reinforcing bar and for light breaking work.

A hammer drill is lighter and fine for small holes and occasional jobs, and many can have the hammering switched off for wood or metal.

What does SDS-plus mean, and how do I choose between SDS-plus and SDS-max?icon-minus-redicon-plus-red

SDS is a type of bit shank. The bit slides into a spring-loaded chuck and locks in place without a chuck key, and it is free to move back and forth so the hammer blows reach the cutting end. The tool and the bits have to match: SDS-plus is the lighter system for small to medium holes, while SDS-max is the larger system for bigger holes and heavier work.

A compact machine that takes SDS-plus bits is normally the right size for anchor holes and general drilling in concrete and brick. Check the hole sizes the maker lists for your model.

Why is drilling concrete a dust hazard, and what should I do about it?icon-minus-redicon-plus-red

Concrete and similar materials can contain silica, and the dust from drilling can contain very fine crystalline silica. Breathing it in can cause serious and permanent lung diseases, including silicosis, chronic obstructive pulmonary disease and lung cancer. The HSE treats drilling concrete with hand-held rotary tools as work that needs good dust control.

Control the dust at the source with a dust collector or extraction attached to the drill, wear suitable respiratory protective equipment where your risk assessment calls for it, and limit who is nearby. Ask the HSE or your safety adviser for the guidance that applies to your job.

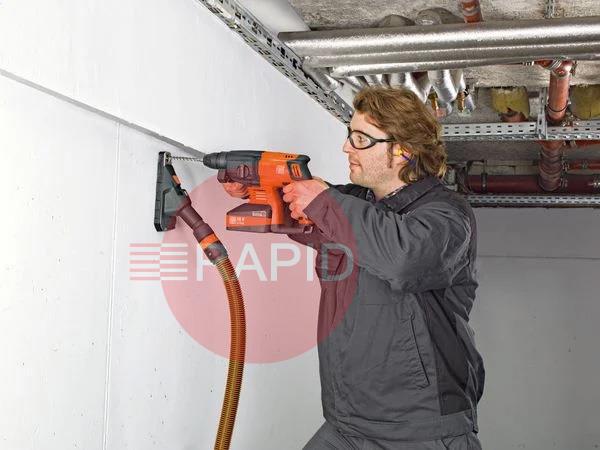

How should dust extraction be used with a drill like this?icon-minus-redicon-plus-red

Dust extraction works best when it is part of the setup, not an afterthought. For short or occasional drilling, a dust collector that fits over or onto the drill can capture dust at the hole. For regular drilling, an on-tool hood connected to a suitable industrial extractor with the correct hoses and connections is normally expected.

Check that the extraction is switched on and working, that hose connections are tight, and that the collection bag or container is emptied regularly. The larger the hole, the better the capture needs to be. Use extraction equipment of the class your risk assessment requires.
