Rapid Ref : 71161566000

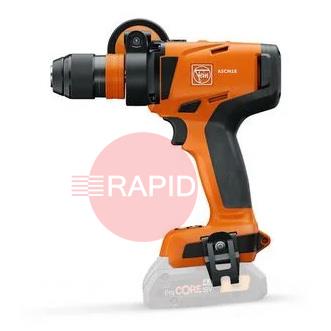

FEIN ASCM 18-4 QM AS 4-Speed Drill/Driver QUICKIN Set
71161566000

£583.25  EX VAT
SSP Suggested Selling Price = £857.73  YOU SAVE £274.48
 Buy in 3 easy interest free payments of £194.42† with

Cordless drill/driver in user set.

The omnipotent ASCM 18-4 QM AS with 7 quick-change QuickIN attachments for maximum efficiency and application versatility when drilling, tapping and screwing. Everything is stored in a clear, tidy and secure way in the i-BOXX.

  • 4-speed solid metal gearbox. With speeds of up to 4000 rpm for optimum cutting speeds in metal for any holes between 1.5 and 80 mm.

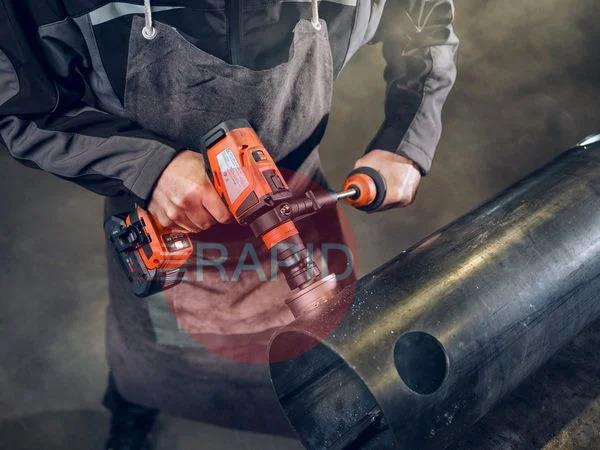

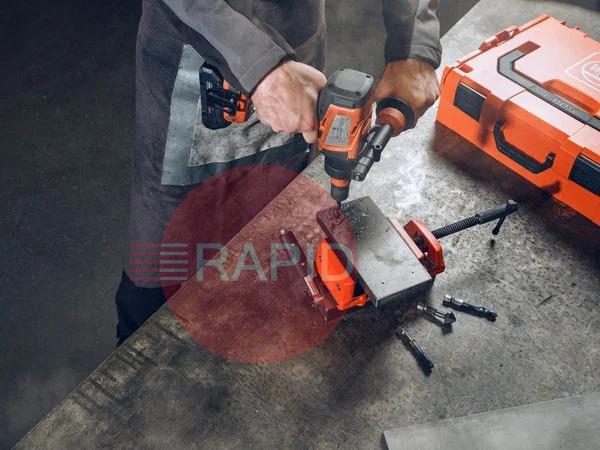

  • Enjoy the greatest versatility with the FEIN QuickIN system for multi-functional use on all drilling, core drilling, tapping, countersinking and screwdriving jobs.
  • The QuickIN headers can be changed in a matter of seconds and without the need for tools when users switch between applications in metal and timber and have just one tool.
  • Very safe working. Kickback monitoring stops the tool.

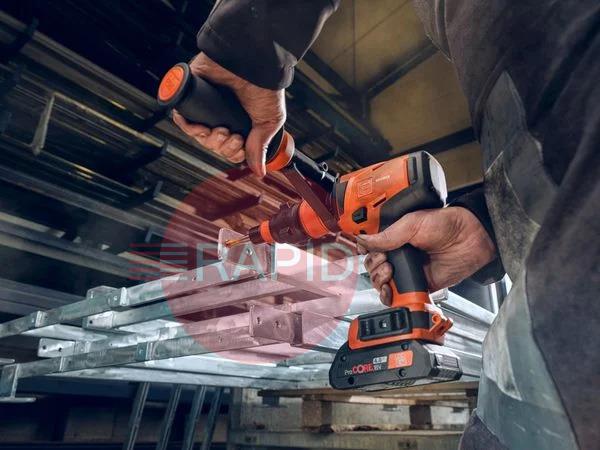

  • Extendible extra handle for more control.
  • The brushless, powerful FEIN PowerDrive motor is up to 30% more efficient and makes a longer service life possible.
  • High torques up to a maximum of 130 Nm.
  • QuickIN solid metal drill chuck (120 Nm) with carbide-tipped clamping jaws and high clamping forces.
  • Electronic torque setting (15+1).
  • Intuitive operating panel with LED which can be dimmed for perfectly illuminating the workplace to suit the material.
  • Bit and belt holder on the side for ergonomic and flexible handling.
  • QuickIN accessory set in the i-BOXX consisting of 7 QuickIN accessories: 1 bit holder 1/4", 1 socket adapter 1/2", 1 tapping attachment, tapping collets 1 x 4.5 mm, 1 x 6 mm, 1 eccentric attachment, 1 angle head. The case inlay of the i-BOXX offers additional space for further QuickIN accessories.
  • Fixes 10 x 400 mm screws without pre-drilling
  • AMPShare interface makes 1400 screw connections (5 x 40 mm in timber) possible per battery charge (ProCORE 4 Ah).
  • Extensive user protection features include restart protection, electronic overload protection and brake.
  • The innovative adjustment function enables screw connections to be made in timber at a reduced speed for perfect results.
  • Compatible with Bosch Professional 18 V batteries (available since 2008) and AMPShare batteries.
  • Maximum work progress with AMPShare 18V ProCORE batteries: COOLPACK 2.0 technology delivers a 135% longer battery life. State-of-the-art cell technology and intelligent battery management deliver 87% more power than with conventional batteries. “Electronic Cell Protection” (ECP) protects the battery from overload, overheating and total discharge.
  • Ideally equipped for every job. Mobile working with the L-BOXX system.

Product Details

Package includes

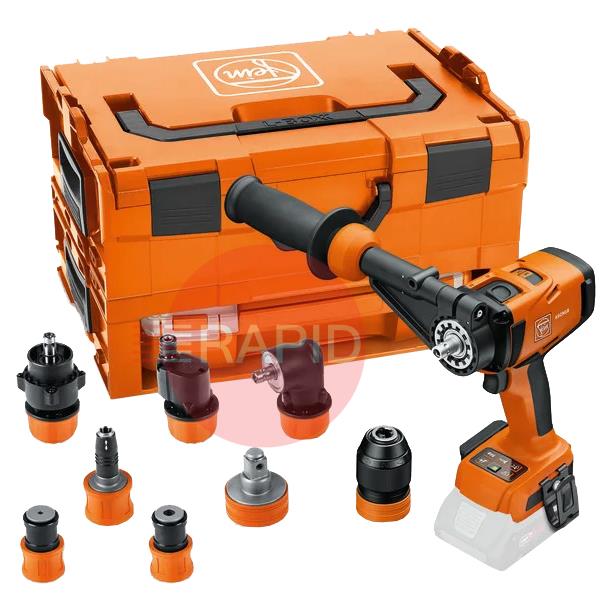

1 ASCM 18-4 QM AS (incl. handle, belt clip, bit holder), 1 QuickIN Accessory Set 7 pieces, 1 tool case (L-BOXX 136), 1 iBOXX 72, 1 iBOXX Rack

Specification

Battery voltage: 18 V
Battery compatibility: Li-ion / ProCORE Li-ion
Battery interface: 18 V AMPShare
Motor: Brushless
Gearbox: 4-speed
Accessory interface: QuickIN MAX
Speed, no load: 430 / 850 / 2 000 / 4 000 rpm
Max. torque (hard/soft): 130 (70 / 50) Nm
Torque levels: 15 + 1

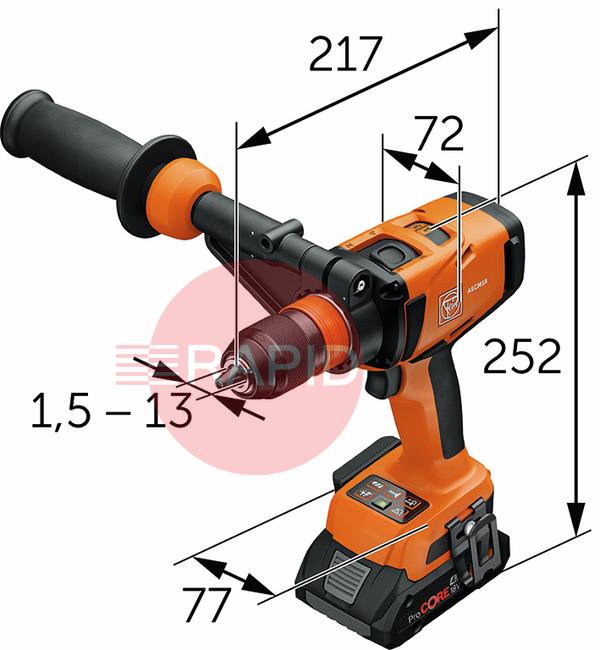

Drill chuck clamping width: 1.5 - 13mm
Fastening: 10 x 400mm
Drill Ø steel twist drill: 13mm
Drilling diameter in steel, core drill bit: 30mm
Drilling diameter in steel, hole saws: 80mm
Capacity in wood Ø: 60 mm
Tapping: M 14
Weight without storage battery: 1.30Kg

Brochures & Manuals

Related Items

FEIN Drill/Drivers FAQs

Practical answers on choosing and using 18 V cordless drill/drivers for metalwork, tapping and screwdriving.

What does the clutch do, and how do I set it?icon-minus-redicon-plus-red

The clutch is the numbered collar behind the chuck. In screwdriving mode it limits the torque applied, and the drive disengages with a clicking sound once the set torque is reached, which helps prevent overdriving screws or snapping small fasteners. Lower numbers give less torque and higher numbers give more.

A sensible method is to start low and work upwards on a scrap piece until the fastener seats properly. The drill symbol on the collar bypasses the clutch so the tool gives its full torque, which is the setting for drilling holes. Remember the clutch is a guide rather than a precision torque tool, so use a proper torque wrench where a specified tightening torque matters.

What do the different gears or speed ranges mean?icon-minus-redicon-plus-red

Multi-speed drill/drivers have a gearbox that trades speed for torque. The lowest gear gives high torque at low speed and suits heavy-duty work such as large drill bits, hole saws, tapping and driving big fasteners. Higher gears give faster rotation and lower torque for smaller drill bits and light work.

As a rule, bigger diameters need slower speeds, and tough materials such as stainless steel need slower speeds than mild steel. Only operate the gear selector when the tool is not running, because shifting while it turns can damage the gearbox, and push the selector fully home. The manual and data plate give the speed ranges for your tool.

Can a cordless drill/driver cause hand-arm vibration problems?icon-minus-redicon-plus-red

Any hand-held power tool can contribute to hand-arm vibration if it is used for long periods, and drills are among the tools the HSE covers. Your employer should assess the risk, so choose lower-vibration tools where they suit the job and compare the declared vibration figures in the instruction manual.

Good habits help: keep the tool and bits in good condition, avoid awkward postures that make you grip harder, take the weight of the tool where you can, and limit the time with your finger on the trigger. Warm gloves help keep hands warm but are not a vibration control. Report tingling, numbness or fingers turning white to your employer.

How should I charge and look after the battery?icon-minus-redicon-plus-red

Use the charger supplied with the battery or one the manufacturer recommends. The wrong charger can overload a battery and raise the risk of overheating and fire. Unplug the charger once the battery is full rather than leaving it on continuous charge, and do not leave batteries charging unattended or overnight.

If a battery has been dropped, or shows overheating, swelling or other damage, stop using it, do not charge it, and dispose of it safely. Keep charging areas clear of escape routes and flammable materials. Your risk assessment and the manufacturer's instructions cover storage and transport rules for your workplace.
