Rapid Ref : 71161564000

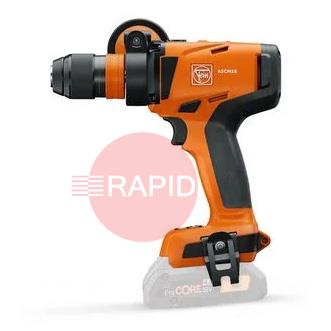

FEIN ASCM 18-4 QM AS 4-Speed Drill/Driver Metal Set
71161564000

£539.00  EX VAT
SSP Suggested Selling Price = £735.00  YOU SAVE £196.00
 Buy in 3 easy interest free payments of £179.67† with

Cordless drill/driver in user set.

The all-rounder ASCM 18-4 QM AS with 8-piece bit set, QuickIN bit holder 1/4", QuickIN tapping collets 4.5 mm and 6 mm, HSS cobalt 5% twist drill set 6-piece and HSS tap set 7-piece.

  • 4-speed solid metal gearbox. With speeds of up to 4000 rpm for optimum cutting speeds in metal for any holes between 1.5 and 80 mm.
  • Enjoy the greatest versatility with the FEIN QuickIN system for multi-functional use on all drilling, core drilling, tapping, countersinking and screwdriving jobs.
  • The QuickIN headers can be changed in a matter of seconds and without the need for tools when users switch between applications in metal and timber and have just one tool.
  • Very safe working. Kickback monitoring stops the tool.
  • Extendible extra handle for more control.
  • The brushless, powerful FEIN PowerDrive motor is up to 30% more efficient and makes a longer service life possible.
  • High torques up to a maximum of 130 Nm.
  • QuickIN solid metal drill chuck (120 Nm) with carbide-tipped clamping jaws and high clamping forces.
  • Electronic torque setting (15+1).
  • Intuitive operating panel with LED which can be dimmed for perfectly illuminating the workplace to suit the material.
  • Bit and belt holder on the side for ergonomic and flexible handling.
  • Bit set 8-piece. Bit holder and 7 bits (PZ2, PZ3, T15, T20, T25, T30, T40, 60-1/4).
  • HSS cobalt 5% twist drill set 6-piece (2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm).
  • HSS tap set 7-piece (M3, M4, M5, M6, M8, M10, M12).
  • QuickIN bit holder, QuickIN tapping collets 4.5 mm and 6 mm.
  • Fixes 10 x 400 mm screws without pre-drilling
  • AMPShare interface makes 1400 screw connections (5 x 40 mm in timber) possible per battery charge (ProCORE 4 Ah).
  • Extensive user protection features include restart protection, electronic overload protection and brake.
  • The innovative adjustment function enables screw connections to be made in timber at a reduced speed for perfect results.
  • Compatible with Bosch Professional 18 V batteries (available since 2008) and AMPShare batteries.
  • Maximum work progress with AMPShare 18V ProCORE batteries: COOLPACK 2.0 technology delivers a 135% longer battery life. State-of-the-art cell technology and intelligent battery management deliver 87% more power than with conventional batteries. “Electronic Cell Protection” (ECP) protects the battery from overload, overheating and total discharge.
  • Ideally equipped for every job. Mobile working with the L-BOXX system.

Product Details

Package includes

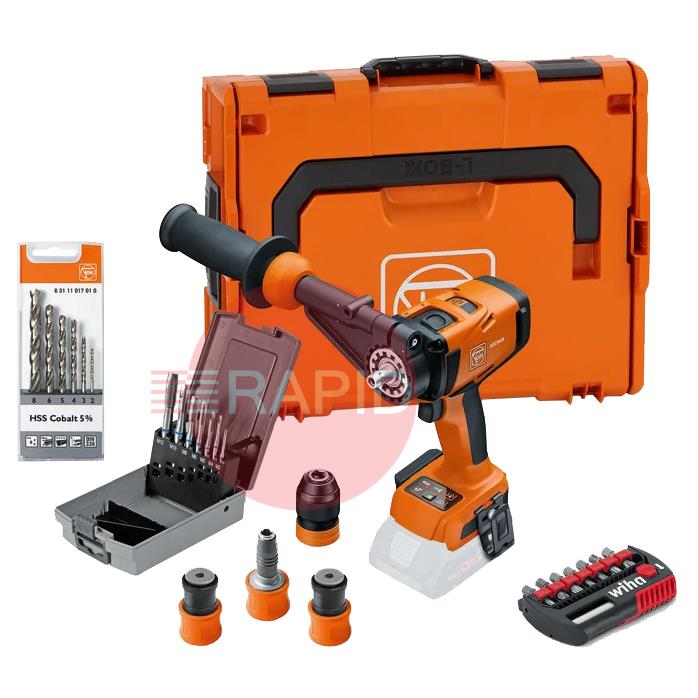

1 ASCM 18-4 QM AS (incl. handle, belt clip, bit holder), 1 QuickIN tapping collet 4.5 mm, 1 HSS tap set 7-piece, 1 8-piece bit set, 1 QuickIN tapping collet 6 mm, 1 tool case (L-Boxx 136), 1 QuickIN bit holder and 1 HSS cobalt 5% twist drill set 6 pieces

Specification

Battery voltage: 18 V
Battery compatibility: Li-ion / ProCORE Li-ion
Battery interface: 18 V AMPShare
Motor: Brushless
Gearbox: 4-speed
Accessory interface: QuickIN
Speed, no load: 430 / 850 / 2 000 / 4 000 rpm
Max. torque (hard/soft): 130 (70 / 50) Nm
Torque levels: 15 + 1

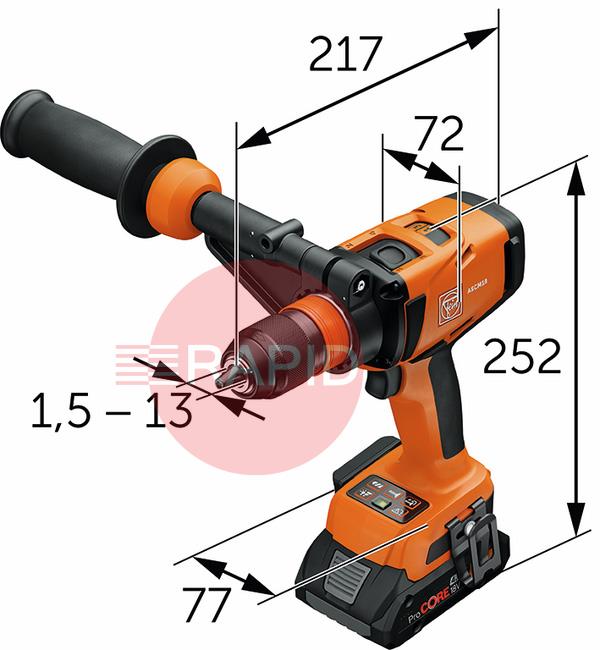

Drill chuck clamping width: 1.5 - 13mm
Fastening: 10 x 400mm
Drill Ø steel twist drill: 13mm
Drilling diameter in steel, core drill bit: 30mm

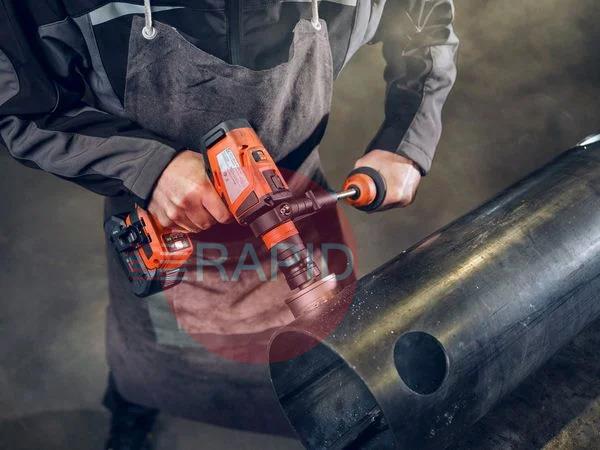

Drilling diameter in steel, hole saws: 80mm
Capacity in wood Ø: 60 mm

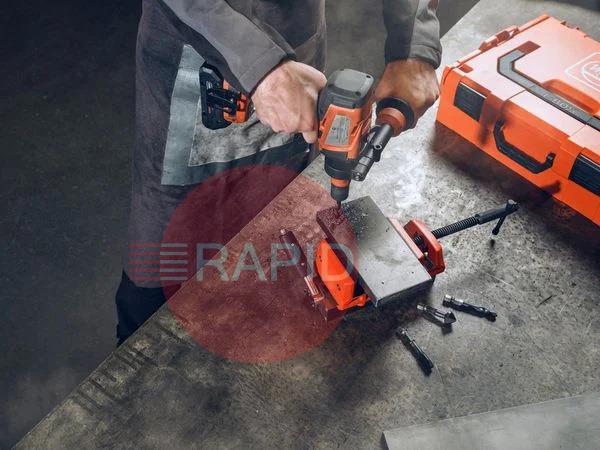

Tapping: M 14
Weight without storage battery: 1.30Kg

Brochures & Manuals

Related Items

FEIN Drill/Drivers FAQs

Practical answers on choosing and using 18 V cordless drill/drivers for metalwork, tapping and screwdriving.

What do the different gears or speed ranges mean?icon-minus-redicon-plus-red

Multi-speed drill/drivers have a gearbox that trades speed for torque. The lowest gear gives high torque at low speed and suits heavy-duty work such as large drill bits, hole saws, tapping and driving big fasteners. Higher gears give faster rotation and lower torque for smaller drill bits and light work.

As a rule, bigger diameters need slower speeds, and tough materials such as stainless steel need slower speeds than mild steel. Only operate the gear selector when the tool is not running, because shifting while it turns can damage the gearbox, and push the selector fully home. The manual and data plate give the speed ranges for your tool.

Can a cordless drill/driver cause hand-arm vibration problems?icon-minus-redicon-plus-red

Any hand-held power tool can contribute to hand-arm vibration if it is used for long periods, and drills are among the tools the HSE covers. Your employer should assess the risk, so choose lower-vibration tools where they suit the job and compare the declared vibration figures in the instruction manual.

Good habits help: keep the tool and bits in good condition, avoid awkward postures that make you grip harder, take the weight of the tool where you can, and limit the time with your finger on the trigger. Warm gloves help keep hands warm but are not a vibration control. Report tingling, numbness or fingers turning white to your employer.

How should I charge and look after the battery?icon-minus-redicon-plus-red

Use the charger supplied with the battery or one the manufacturer recommends. The wrong charger can overload a battery and raise the risk of overheating and fire. Unplug the charger once the battery is full rather than leaving it on continuous charge, and do not leave batteries charging unattended or overnight.

If a battery has been dropped, or shows overheating, swelling or other damage, stop using it, do not charge it, and dispose of it safely. Keep charging areas clear of escape routes and flammable materials. Your risk assessment and the manufacturer's instructions cover storage and transport rules for your workplace.

How do I drill stainless steel without ruining the bits?icon-minus-redicon-plus-red

Stainless steel work hardens when heat builds up from the wrong speed or from rubbing, so the aim is to keep the bit cutting. Use a sharp bit made for tough metals (cobalt bits are commonly used because the cobalt runs right through the bit), a low speed, steady feed so you see continuous chips, and plenty of cutting oil or coolant. Do not let the bit dwell or rub in the hole, and stop regularly to re-apply oil if you cannot keep it flooded.

For larger holes it often helps to start with a smaller hole and step up. A blunt bit pushes you to press harder and generate more heat, so replace or resharpen bits as soon as they stop cutting freely. Exact speeds depend on the grade and bit size, so check the bit maker's guidance.
