Rapid Ref : 71161561000

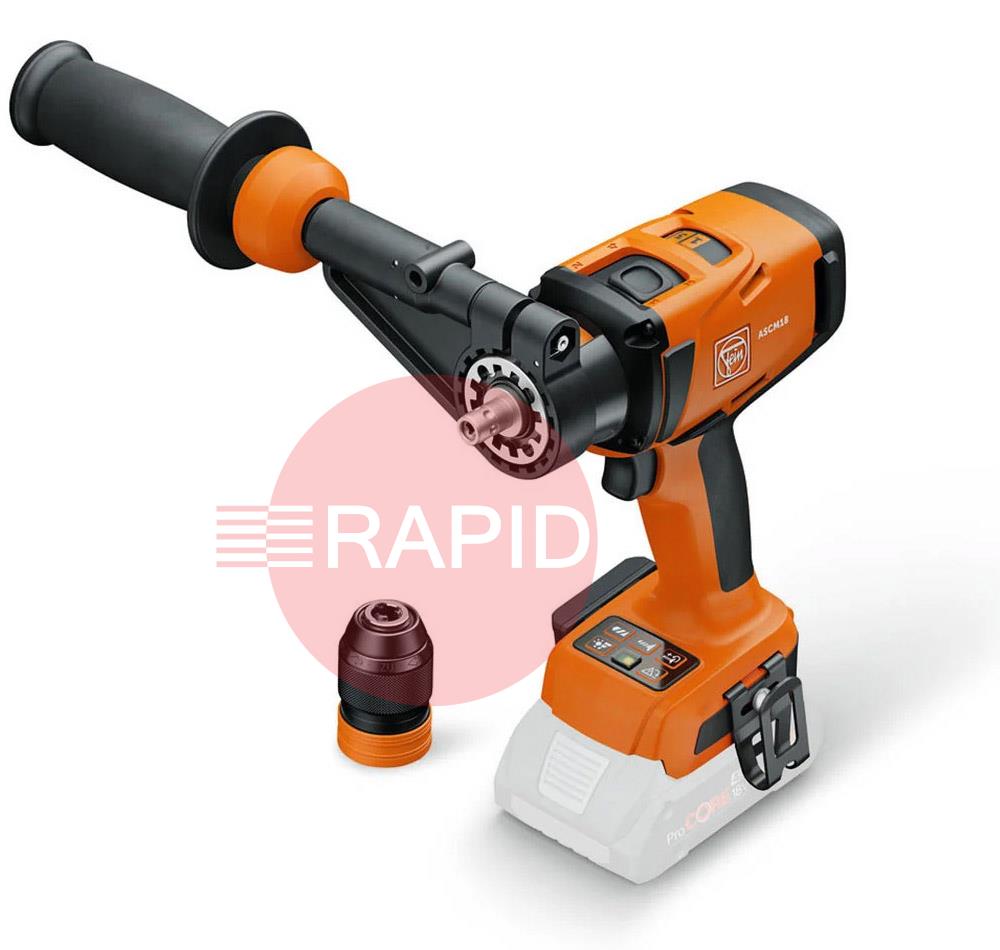

FEIN ASCM 18-4 QM AS Cordless 4-Speed Drill/Driver (Bare Unit)
71161561000

£277.25  EX VAT
SSP Suggested Selling Price = £407.73  YOU SAVE £130.48
 Buy in 3 easy interest free payments of £92.42† with

4-speed cordless hammer drill/driver

With brushless motor and QuickIN interface. No compromise on performance for tapping up to M14 and drilling with carbide hole saws up to 80mm.

  • 4-speed solid metal gearbox. With speeds of up to 4000rpm for optimum cutting speeds in metal for any holes between 1.5 and 80mm
  • Enjoy the greatest versatility with the FEIN QuickIN system for multi-functional use on all drilling, core drilling, tapping, countersinking and screwdriving jobs
  • Very safe working. Kickback monitoring stops the tool
  • The QuickIN headers can be changed in a matter of seconds and without the need for tools when users switch between applications in metal and timber and have just one tool
  • Extendible extra handle for more control
  • The brushless, powerful FEIN PowerDrive motor is up to 30% more efficient and makes a longer service life possible
  • High torques up to a maximum of 130Nm
  • QuickIN solid metal drill chuck (120Nm) with carbide-tipped clamping jaws and high clamping forces
  • Electronic torque setting (15+1)
  • Intuitive operating panel with LED which can be dimmed for perfectly illuminating the workplace to suit the material
  • Bit and belt holder on the side for ergonomic and flexible handling
  • Fixes 10 x 400 mm screws without pre-drilling
  • AMPShare interface makes 1400 screw connections (5 x 40mm in timber) possible per battery charge (ProCORE 4Ah)
  • Extensive user protection features include restart protection, electronic overload protection and brake
  • The innovative adjustment function enables screw connections to be made in timber at a reduced speed for perfect results
  • Compatible with Bosch Professional 18V batteries (available since 2008) and AMPShare batteries
  • Maximum work progress with AMPShare 18V ProCORE batteries: COOLPACK 2.0 technology delivers a 135% longer battery life. State-of-the-art cell technology and intelligent battery management deliver 87% more power than conventional batteries. “Electronic Cell Protection” (ECP) protects the battery from overload, overheating and total discharge
  • Ideally equipped for every job. Mobile working with the L-BOXX system

Product Details

Package includes

1 QuickIN drill chuck (120Nm), 1 belt clip, 1 magnetic bit storage, 1 telescopic handle and 1 tool case (L-Boxx 136).

Specification

Battery voltage: 18V
Battery compatibility: Li-ion / ProCORE Li-ion
Battery interface: 18V AMPShare
Motor: Brushless
Gearbox: 4-speed
Accessory interface: QuickIN MAX
Speed, no load: 430 / 850 / 2,000 / 4,000 rpm
Max. torque (hard/soft): 130 (70 / 50) Nm
Torque levels: 15 + 1

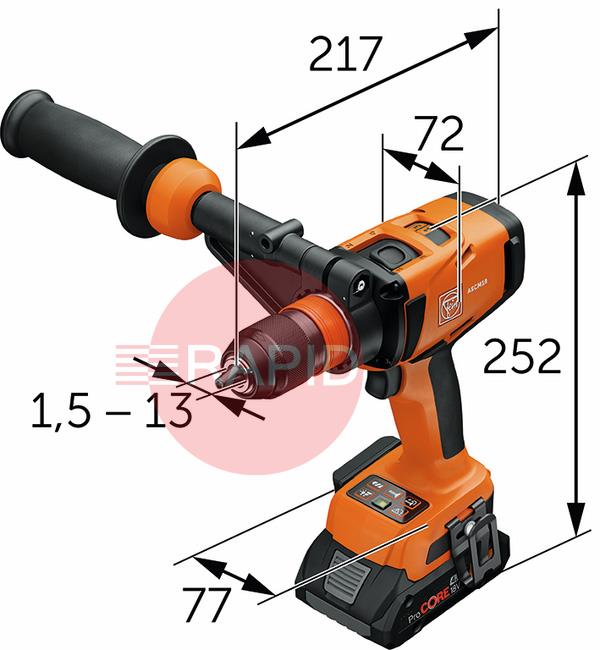

Drill chuck clamping width: 1.5 - 13mm
Fastening: 10 x 400mm
Drill Ø steel twist drill: 13mm
Drilling diameter in steel, core drill bit: 30mm

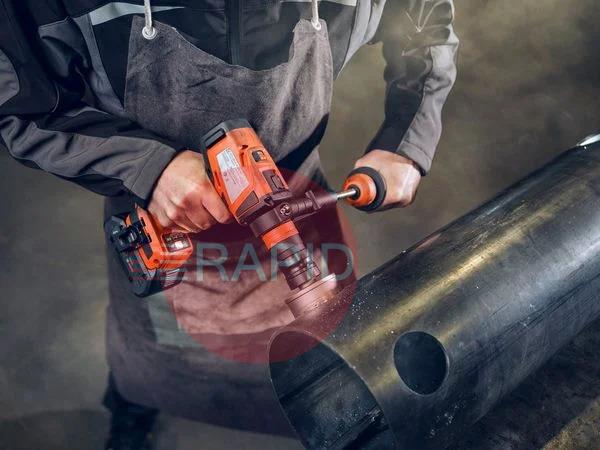

Drilling diameter in steel, hole saws: 80mm
Capacity in wood Ø: 60 mm
Tapping: M 14
Weight without storage battery: 1.30Kg

Brochures & Manuals

Related Items

FEIN Drill/Drivers FAQs

Practical answers on choosing and using 18 V cordless drill/drivers for metalwork, tapping and screwdriving.

Can I tap threads with a cordless drill/driver?icon-minus-redicon-plus-red

Yes, provided the drill has a low-speed gear and you take care. Drill the core hole to the size given in a thread table for your thread, use a good quality tap suited to the material (HSS taps are normally used for steel, copper and aluminium), and apply cutting oil or a thread cutting oil to cut friction and heat.

Start at low speed with even pressure and let the tap do the work rather than forcing it. Larger threads generally call for the lowest gear, and tapping heads or similar accessories can make the job easier and more controlled. Back the tap out now and then to clear swarf, and check the maker's manual for the largest thread your drill is intended to tap.

What does the clutch do, and how do I set it?icon-minus-redicon-plus-red

The clutch is the numbered collar behind the chuck. In screwdriving mode it limits the torque applied, and the drive disengages with a clicking sound once the set torque is reached, which helps prevent overdriving screws or snapping small fasteners. Lower numbers give less torque and higher numbers give more.

A sensible method is to start low and work upwards on a scrap piece until the fastener seats properly. The drill symbol on the collar bypasses the clutch so the tool gives its full torque, which is the setting for drilling holes. Remember the clutch is a guide rather than a precision torque tool, so use a proper torque wrench where a specified tightening torque matters.

What do the different gears or speed ranges mean?icon-minus-redicon-plus-red

Multi-speed drill/drivers have a gearbox that trades speed for torque. The lowest gear gives high torque at low speed and suits heavy-duty work such as large drill bits, hole saws, tapping and driving big fasteners. Higher gears give faster rotation and lower torque for smaller drill bits and light work.

As a rule, bigger diameters need slower speeds, and tough materials such as stainless steel need slower speeds than mild steel. Only operate the gear selector when the tool is not running, because shifting while it turns can damage the gearbox, and push the selector fully home. The manual and data plate give the speed ranges for your tool.

How should I charge and look after the battery?icon-minus-redicon-plus-red

Use the charger supplied with the battery or one the manufacturer recommends. The wrong charger can overload a battery and raise the risk of overheating and fire. Unplug the charger once the battery is full rather than leaving it on continuous charge, and do not leave batteries charging unattended or overnight.

If a battery has been dropped, or shows overheating, swelling or other damage, stop using it, do not charge it, and dispose of it safely. Keep charging areas clear of escape routes and flammable materials. Your risk assessment and the manufacturer's instructions cover storage and transport rules for your workplace.
