Rapid Ref : 71040761000

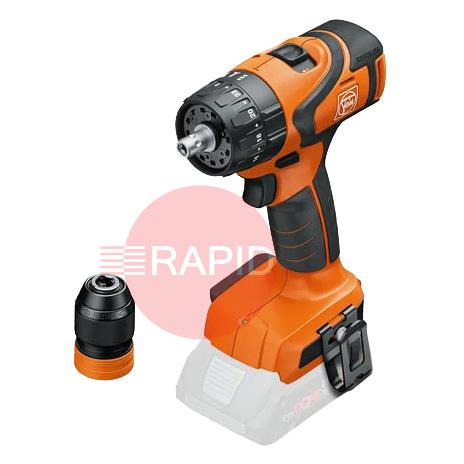

FEIN ASB 18 Q AS Cordless 2-Speed Combi Drill (Bare Unit)
71040761000

£221.61  EX VAT
SSP Suggested Selling Price = £325.91  YOU SAVE £104.30
 Buy in 3 easy interest free payments of £73.87† with

2-speed cordless combi drill

With brushless motor and QuickIN interface. Perfectly suited to drilling up to 13mm in metal, stone and masonry.

  • 2-speed solid metal gearbox and switchable striking mechanism for optimum drilling in metal, stone and masonry
  • Enjoy the greatest versatility with the FEIN QuickIN system. Work at speed in metal and timber with just one tool
  • QuickIN solid metal drill chuck (120Nm) with carbide-tipped clamping jaws and high clamping forces
  • Brushless FEIN PowerDrive motor with 30% higher efficiency and long service life
  • Mechanical torque setting
  • Compact design
  • The AMPShare interface makes almost 50% more screw connections (approx. 1300 screw connections, diameter of 5 x 40mm in timber) possible per battery charge with the same level of FEIN quality. (ProCORE 4Ah)
  • Bit and belt holder on the side for ergonomic and flexible handling
  • Compatible with all 18V AMPShare ProCORE batteries and chargers for even more power and flexibility. Also suitable for 18V Bosch Professional cordless devices
  • Compatible with Bosch Professional 18V batteries (available since 2008) and AMPShare batteries
  • Maximum work progress with AMPShare 18V ProCORE batteries: COOLPACK 2.0 technology delivers a 135% longer battery life. State-of-the-art cell technology and intelligent battery management deliver 87% more power than conventional batteries. “Electronic Cell Protection” (ECP) protects the battery from overload, overheating and total discharge
  • Ideally equipped for every form of use. Mobile working with the L-BOXX system

Product Details

Package includes

1 QuickIN drill chuck (120Nm), 1 belt clip, 1 magnetic bit storage, and 1 tool case (L-Boxx 136).

Specification

Battery voltage: 18V
Battery compatibility: Li-ion/ProCORE Li-ion
Battery interface: 18V AMPShare
Motor: Brushless
Gearbox: 2-speed
Accessory interface: QuickIN
Speed, no load: 450 / 2,000rpm
Impacts: 7,360 / 32,000rpm
Max. torque (hard/soft): 60 / 38Nm
Torque levels: 22 + 1
Drill chuck clamping width: 1.5 - 13mm
Fastening: 8 x 300mm
Capacity in steel Ø: 13mm
Capacity in wood Ø: 50mm
Capacity in stone Ø: 13mm
Tapping: M 10
Weight without storage battery: 1.50Kg

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   FEIN ABS18 Q AS Manual Instruction

Related Items

FEIN Drill/Drivers FAQs

Practical answers on choosing and using 18 V cordless drill/drivers for metalwork, tapping and screwdriving.

Can I tap threads with a cordless drill/driver?icon-minus-redicon-plus-red

Yes, provided the drill has a low-speed gear and you take care. Drill the core hole to the size given in a thread table for your thread, use a good quality tap suited to the material (HSS taps are normally used for steel, copper and aluminium), and apply cutting oil or a thread cutting oil to cut friction and heat.

Start at low speed with even pressure and let the tap do the work rather than forcing it. Larger threads generally call for the lowest gear, and tapping heads or similar accessories can make the job easier and more controlled. Back the tap out now and then to clear swarf, and check the maker's manual for the largest thread your drill is intended to tap.

What does the clutch do, and how do I set it?icon-minus-redicon-plus-red

The clutch is the numbered collar behind the chuck. In screwdriving mode it limits the torque applied, and the drive disengages with a clicking sound once the set torque is reached, which helps prevent overdriving screws or snapping small fasteners. Lower numbers give less torque and higher numbers give more.

A sensible method is to start low and work upwards on a scrap piece until the fastener seats properly. The drill symbol on the collar bypasses the clutch so the tool gives its full torque, which is the setting for drilling holes. Remember the clutch is a guide rather than a precision torque tool, so use a proper torque wrench where a specified tightening torque matters.

What do the different gears or speed ranges mean?icon-minus-redicon-plus-red

Multi-speed drill/drivers have a gearbox that trades speed for torque. The lowest gear gives high torque at low speed and suits heavy-duty work such as large drill bits, hole saws, tapping and driving big fasteners. Higher gears give faster rotation and lower torque for smaller drill bits and light work.

As a rule, bigger diameters need slower speeds, and tough materials such as stainless steel need slower speeds than mild steel. Only operate the gear selector when the tool is not running, because shifting while it turns can damage the gearbox, and push the selector fully home. The manual and data plate give the speed ranges for your tool.

How should I charge and look after the battery?icon-minus-redicon-plus-red

Use the charger supplied with the battery or one the manufacturer recommends. The wrong charger can overload a battery and raise the risk of overheating and fire. Unplug the charger once the battery is full rather than leaving it on continuous charge, and do not leave batteries charging unattended or overnight.

If a battery has been dropped, or shows overheating, swelling or other damage, stop using it, do not charge it, and dispose of it safely. Keep charging areas clear of escape routes and flammable materials. Your risk assessment and the manufacturer's instructions cover storage and transport rules for your workplace.
