MOSA TS 200 DES/CF Diesel Welder Generator - 190A, 110V / 230V 35.27273Y

£4473.00  EX VAT
SSP Suggested Selling Price = £6390.00  YOU SAVE £1917.00
 Buy in 3 easy interest free payments of £1491.00 with
Please note, this product does not qualify for our standard shipping rates outside of the UK Mainland. Please contact us for shipping rates for this product.

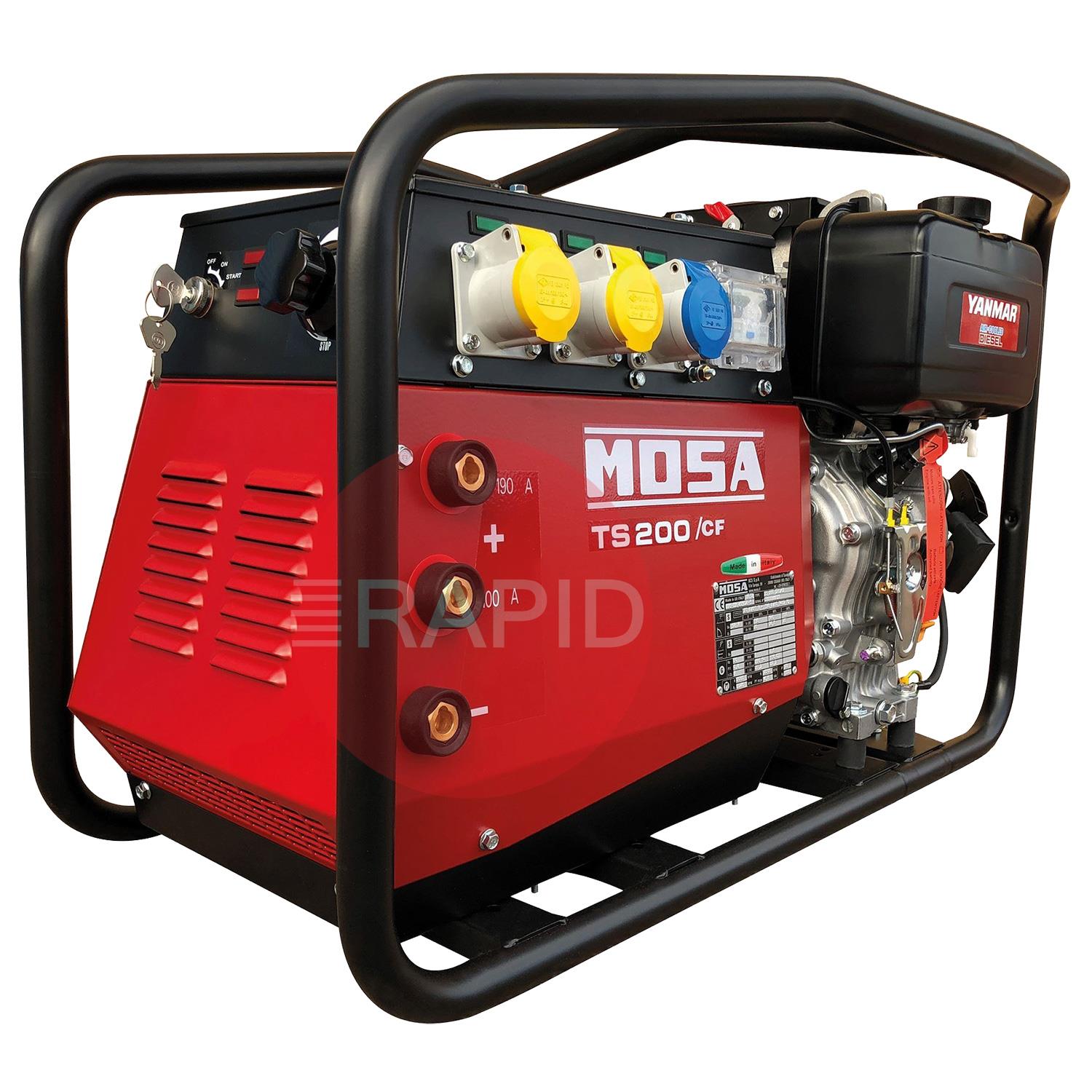

The MOSA TS 200 DES/CF is a lightweight machine without electronics where the welding current is adjusted by altering the rpm of the engine. This machine is equipped with a YANMAR L100N diesel engine with electrical start-up and an asynchronous alternator, also this can be used as a welder or as a three-phase and single-phase electrical generator up to 6 kVA. The welding current is continuous with two welding scales (20-100A / 90-190A) that can be selected by connecting to two different welding sockets. Operators can weld with electrodes up to 4mm in diameter. An engine-driven welder is suitable for a wide range of uses from maintenance to site welding and pipe fabrication.

Features

  • Arc welding source in DC welding
  • Welds any type of electrode, including cellulosic
  • AC generator, single-phase and three-phase
  • Ground fault interrupter
  • Electric starter
  • Protective frame
  • Meet EC directives

Product Details

Specifications

  • Current range: 20 – 100A, 90 – 190A
  • Duty cycle: 190A – 35%, 160A – 60%, 120A – 100%
  • Open circuit voltage: 98V
  • Engine: Yanmar L 100 N
  • Output: 6.5 kW (8.8 HP)
  • Speed: 3000 rpm
  • Fuel Consumption (welding 60%): 1 l/h
  • Tank Capacity: 5.5L
  • Running time (welding 60%): 5.5 hours
  • Protection: IP23
  • Dimensions: 900mm x 550mm x 620mm
  • Dry weight (Machine Only): 150Kg

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   Mosa TS 200 DS-DES/CF User Manual
