Rapid Ref : 9873202 Mfr Ref : 60432

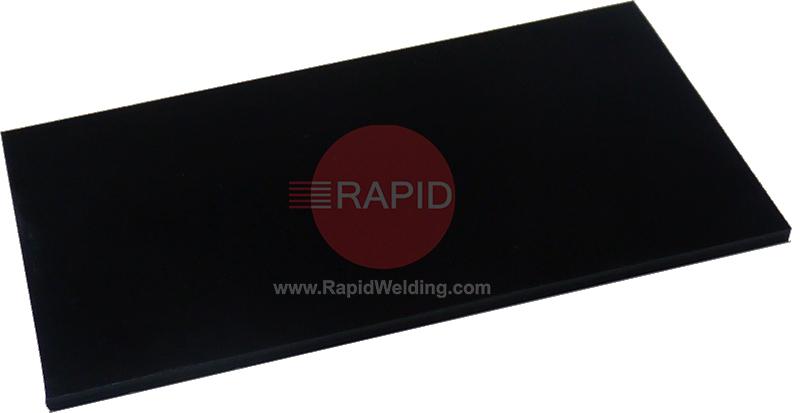

Shade 12 Filter Lens - 60mm x 110mm
60432 9873202

Name: Shade 12 Filter Lens - 60mm x 110mm
SKU: 9873202
Price: 0.74 GBP

£0.74 EX VAT

SSP Suggested Selling Price = £2.20 YOU SAVE £1.46

Lens dimensions: 60mm x 110mm.

Alfa e60P Helmet Parts FAQs

Replacement lenses, fittings and comfort parts for a passive welding helmet, and how to work out the right one.

Why must the filter and protection plates match my helmet, and how does the HSE see eye protection?

The HSE says welders need eye protection with filters to guard against arc eye, a painful injury to the front of the eye caused by welding radiation, which usually shows up a few hours after exposure. It says the filters should meet relevant British and European standards.

So never fit a filter or plate that is not made for your helmet and process. Makers say not to use any filter without its shade number and approval marking, and never to use a protection glass in place of the inner plastic safety plate. Do not use a cracked or loose part. Check the manual or ask your supplier if you are unsure which part is right.

How do I clean the helmet and lenses without damaging them?

Blow loose dirt and dust off first, then wipe the helmet with a damp cloth wetted with mild soapy water, and dry it with a clean cloth. Maker instructions say not to use solvents or strong cleaning solutions. Plastic plates scratch easily, so handle them carefully.

Inspect the shell, headband, filter and plates for cracks, pitting or scratches each time you use the helmet, and replace anything damaged, because a damaged part reduces protection. Do not put the helmet down on a hot surface such as a hot weld, and keep it somewhere clean and dry. Follow the manual for your model.

How should I set up the headband so the helmet sits comfortably?

Adjust the height and girth of the headband for comfort. Set the band fairly low so the helmet stays firmly in place, with the sweatband a little above your eyebrows and ears, and tighten it with the adjusting wheel to suit your head.

Then set the helmet angle so that its lower edge is near your chest while welding, where protection is best, and adjust the pivot tightness so a raised helmet stays up but drops when you nod. If it strikes your chest as it falls, it is too loose or set too close to your face. Replace the headband if it is cracked or no longer holds its setting.

What do small fittings such as springs and adjuster sets do?

A filter retaining spring holds the filter and protection glass in the helmet's hatch frame, so a bent, weak or lost one can let parts shift. How it is released and refitted depends on the helmet, so follow the manual and make sure it is seated properly before use.

Adjuster sets are the parts, such as the adjustment plate and screws, that set the helmet angle and how tightly it pivots against the headband. They wear with use, so replace them when they are loose, cracked or no longer hold their setting. These parts are specific to a helmet family, so identify the right one from the manual's parts list or the old part rather than by appearance.
