Rapid Ref : 9873181

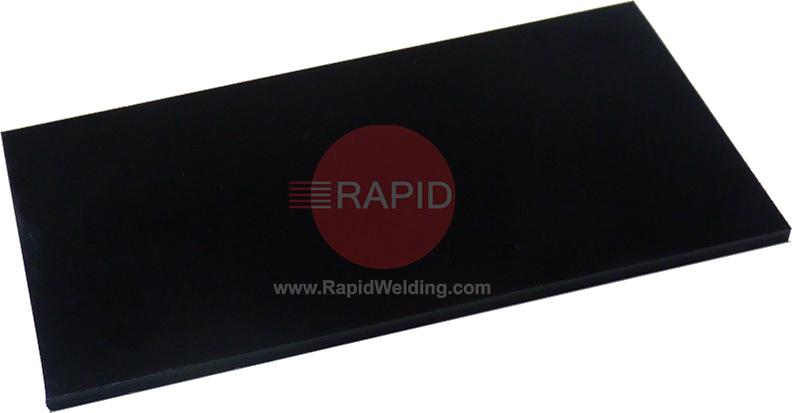

Shade 10 Filter Lens - 60mm x 110mm
9873181

Name: Shade 10 Filter Lens - 60mm x 110mm
SKU: 9873181
Price: 0.74 GBP

£0.74 EX VAT

SSP Suggested Selling Price = £2.20 YOU SAVE £1.46

Lens dimensions: 60mm x 110mm.

Alfa e60P Helmet Parts FAQs

Replacement lenses, fittings and comfort parts for a passive welding helmet, and how to work out the right one.

Does a welding helmet protect me from welding fume?

No. A standard helmet protects the eyes, head and neck from arc radiation and spatter. It is designed for use where ventilation is sufficient, and a fresh-air helmet is recommended where ventilation is poor. The HSE says the best option for arc welders is a powered or supplied-air respirator that combines respiratory, eye and face protection.

Where fume controls such as local exhaust do not give adequate control, suitable respiratory equipment should be added, and it must work with the other protective equipment, such as the helmet. Ask your supplier or safety adviser, and follow your risk assessment.

When should I replace the cover plates in front of and behind the filter?

Check them before every use. Maker instructions say to replace protection plates straight away if they are scratched, damaged or built up with spatter so that vision is reduced, and to replace any cracked, pitted or scratched part.

Plastic plates scratch easily, so handle them carefully, and only fit the type of plate your helmet manual specifies. Sizes and fittings differ between helmets, so match the part to your helmet from the manual or the old part.

How do I clean the helmet and lenses without damaging them?

Blow loose dirt and dust off first, then wipe the helmet with a damp cloth wetted with mild soapy water, and dry it with a clean cloth. Maker instructions say not to use solvents or strong cleaning solutions. Plastic plates scratch easily, so handle them carefully.

Inspect the shell, headband, filter and plates for cracks, pitting or scratches each time you use the helmet, and replace anything damaged, because a damaged part reduces protection. Do not put the helmet down on a hot surface such as a hot weld, and keep it somewhere clean and dry. Follow the manual for your model.

What do small fittings such as springs and adjuster sets do?

A filter retaining spring holds the filter and protection glass in the helmet's hatch frame, so a bent, weak or lost one can let parts shift. How it is released and refitted depends on the helmet, so follow the manual and make sure it is seated properly before use.

Adjuster sets are the parts, such as the adjustment plate and screws, that set the helmet angle and how tightly it pivots against the headband. They wear with use, so replace them when they are loose, cracked or no longer hold their setting. These parts are specific to a helmet family, so identify the right one from the manual's parts list or the old part rather than by appearance.
