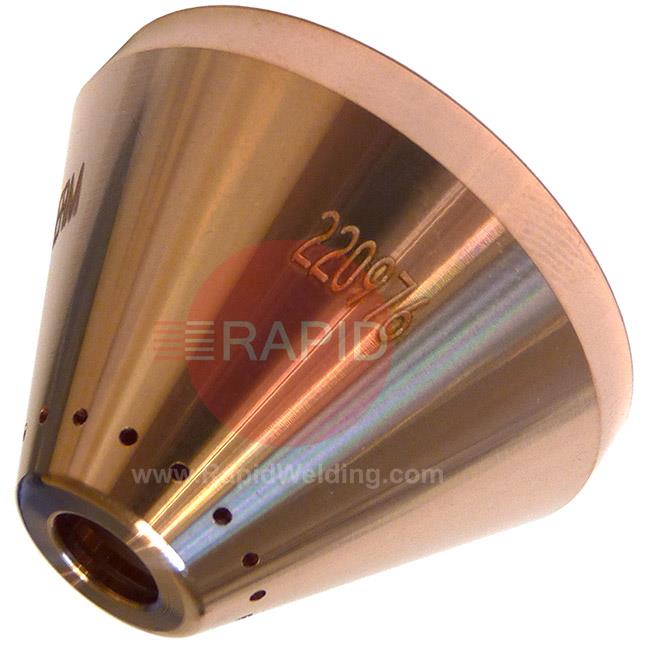

Hypertherm Mechanised Shield, for Duramax Hyamp Torch (105 - 125A)
220976

Name: Hypertherm Mechanised Shield, for Duramax Hyamp Torch (105 - 125A)
SKU: 220976
Price: 23.60 GBP

£23.60 EX VAT

SSP Suggested Selling Price = £29.50 YOU SAVE £5.90

Powermax 125 / Duramax Hyamp Parts FAQs

Practical answers on the consumable parts for a high-current air plasma torch: gouging, fine-cut and drag-cut sets, wear checks and fitting.

How are gouging consumables different from cutting consumables?

Gouging is a variation of cutting in which the arc is deliberately defocused, mainly by changing the nozzle orifice size, so the torch removes metal in a wide, shallow groove instead of cutting through. Gouging therefore uses its own nozzle and shield, designed for that job, rather than the parts you fit for cutting.

Fit the set that matches the gouge you want, and check whether your machine has a gouging mode that adjusts the gas pressure before you start. Your manual's consumable chart shows which nozzle and shield belong in each mode.

What is the difference between control-type and removal-type gouging shields?

Makers usually split gouging sets into two styles. The control style is intended for precise metal removal, light washing and shallow gouges, and is generally the better choice while you are learning. The removal style is intended for aggressive metal removal, deep profiles and heavy washing.

Torch angle, travel speed and current also change the gouge: moving faster gives a shallower, narrower groove, and moving slower gives a deeper, wider one. Match the shield to the work, and check the part description and your manual to confirm that the set suits your torch type and current range.

What does a worn nozzle look like?

A new nozzle has a sharp, round orifice. Replace the nozzle if the orifice is nicked or notched, has gone oval or out of round, or has rounded-off edges. Slight enlargement of the hole is normal wear, but it shows up in the cut as more bevel, more dross on the underside and a wider kerf.

Most makers advise changing the electrode and nozzle together, because a worn electrode quickly damages a new nozzle. Never refit a nozzle you have already judged to be worn, and keep it clear of slag.

What are fine-cut consumables for?

Fine-cut sets are made for intricate, fine-featured shapes in thin sheet. They are designed to give squarer edges, tighter tolerances and a narrower kerf than standard parts, and they are normally used at the lower end of the machine's current range on mild and stainless steel.

They are made for both hand and machine torches. On a machine table the result also depends on a rigid torch mount, good height control and a suitable cut speed. Maker guidance recommends a shield rather than a deflector for consistency and nozzle life, and expects small adjustments from one sheet to the next.
