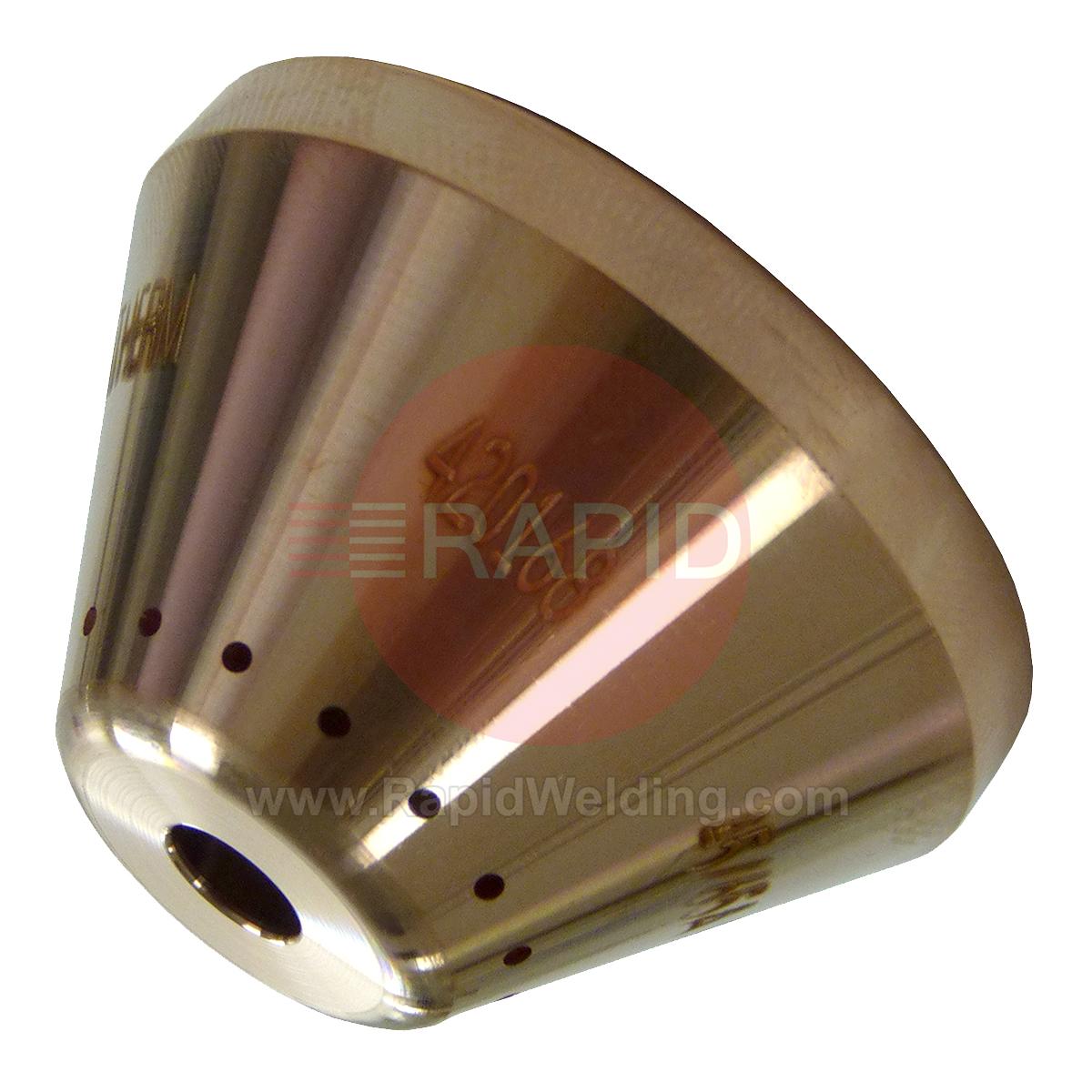

Hypertherm Mechanised Shield, for Duramax Hyamp Torch (45 - 65A)
420168

Name: Hypertherm Mechanised Shield, for Duramax Hyamp Torch (45 - 65A)
SKU: 420168
Price: 24.40 GBP

£24.40 EX VAT

SSP Suggested Selling Price = £30.50 YOU SAVE £6.10

Powermax 125 / Duramax Hyamp Parts FAQs

Practical answers on the consumable parts for a high-current air plasma torch: gouging, fine-cut and drag-cut sets, wear checks and fitting.

How are gouging consumables different from cutting consumables?

Gouging is a variation of cutting in which the arc is deliberately defocused, mainly by changing the nozzle orifice size, so the torch removes metal in a wide, shallow groove instead of cutting through. Gouging therefore uses its own nozzle and shield, designed for that job, rather than the parts you fit for cutting.

Fit the set that matches the gouge you want, and check whether your machine has a gouging mode that adjusts the gas pressure before you start. Your manual's consumable chart shows which nozzle and shield belong in each mode.

What does a worn nozzle look like?

A new nozzle has a sharp, round orifice. Replace the nozzle if the orifice is nicked or notched, has gone oval or out of round, or has rounded-off edges. Slight enlargement of the hole is normal wear, but it shows up in the cut as more bevel, more dross on the underside and a wider kerf.

Most makers advise changing the electrode and nozzle together, because a worn electrode quickly damages a new nozzle. Never refit a nozzle you have already judged to be worn, and keep it clear of slag.

Should I inspect the retaining cap and its threads before cutting?

Yes. Before use, look over the retaining cap for cracks, burn marks, deformation and excessive wear, and check the threads on both the cap and the torch body for dirt or damage. Replace the cap if it is cracked, has stripped threads, is badly pitted by spatter or no longer holds the consumables firmly in place.

Tighten it by hand only, to the point the manual describes, and do not force it. A loose or damaged cap can let gas escape or the parts sit out of line, which shows up as poor cuts or sparking at the torch head.

What are fine-cut consumables for?

Fine-cut sets are made for intricate, fine-featured shapes in thin sheet. They are designed to give squarer edges, tighter tolerances and a narrower kerf than standard parts, and they are normally used at the lower end of the machine's current range on mild and stainless steel.

They are made for both hand and machine torches. On a machine table the result also depends on a rigid torch mount, good height control and a suitable cut speed. Maker guidance recommends a shield rather than a deflector for consistency and nozzle life, and expects small adjustments from one sheet to the next.
