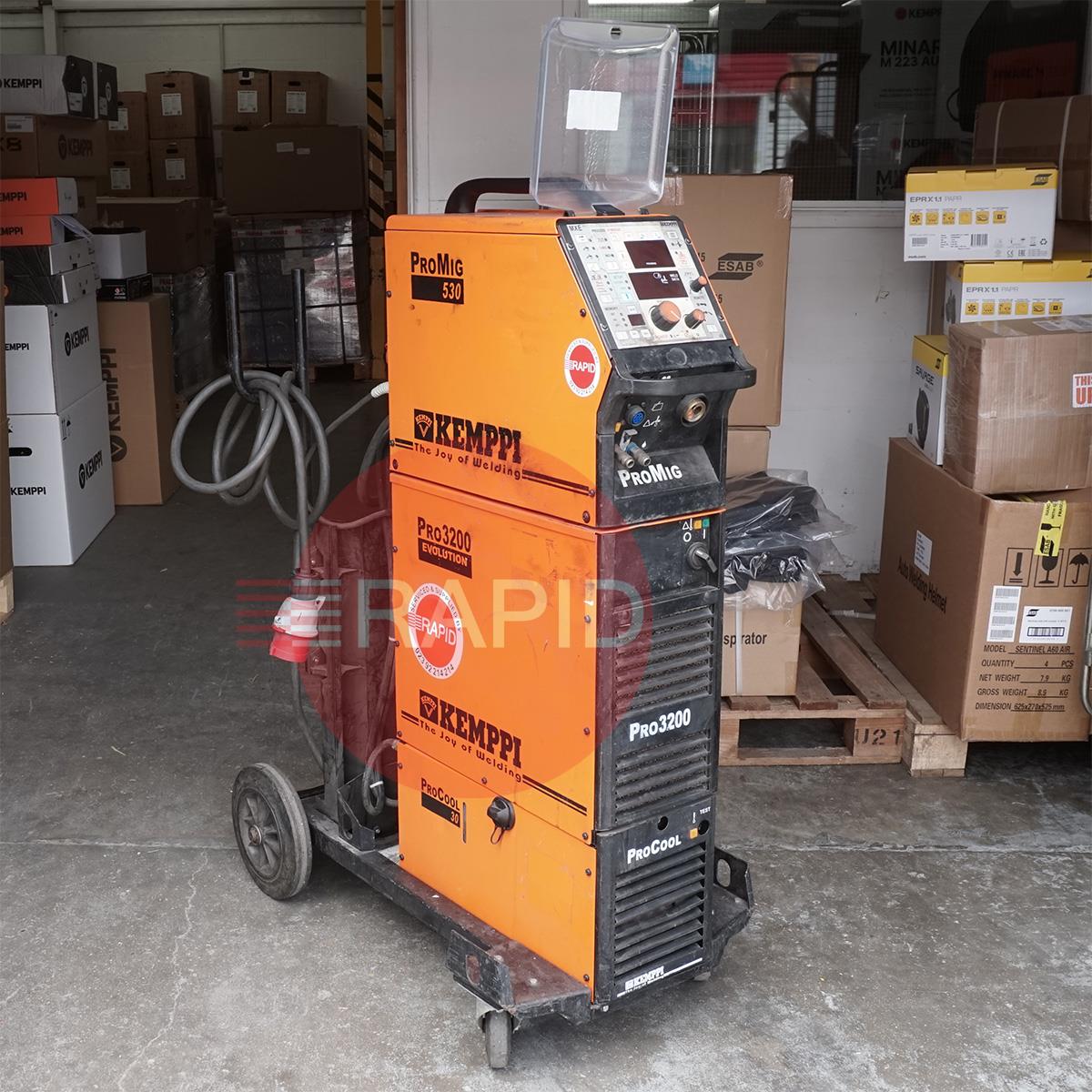

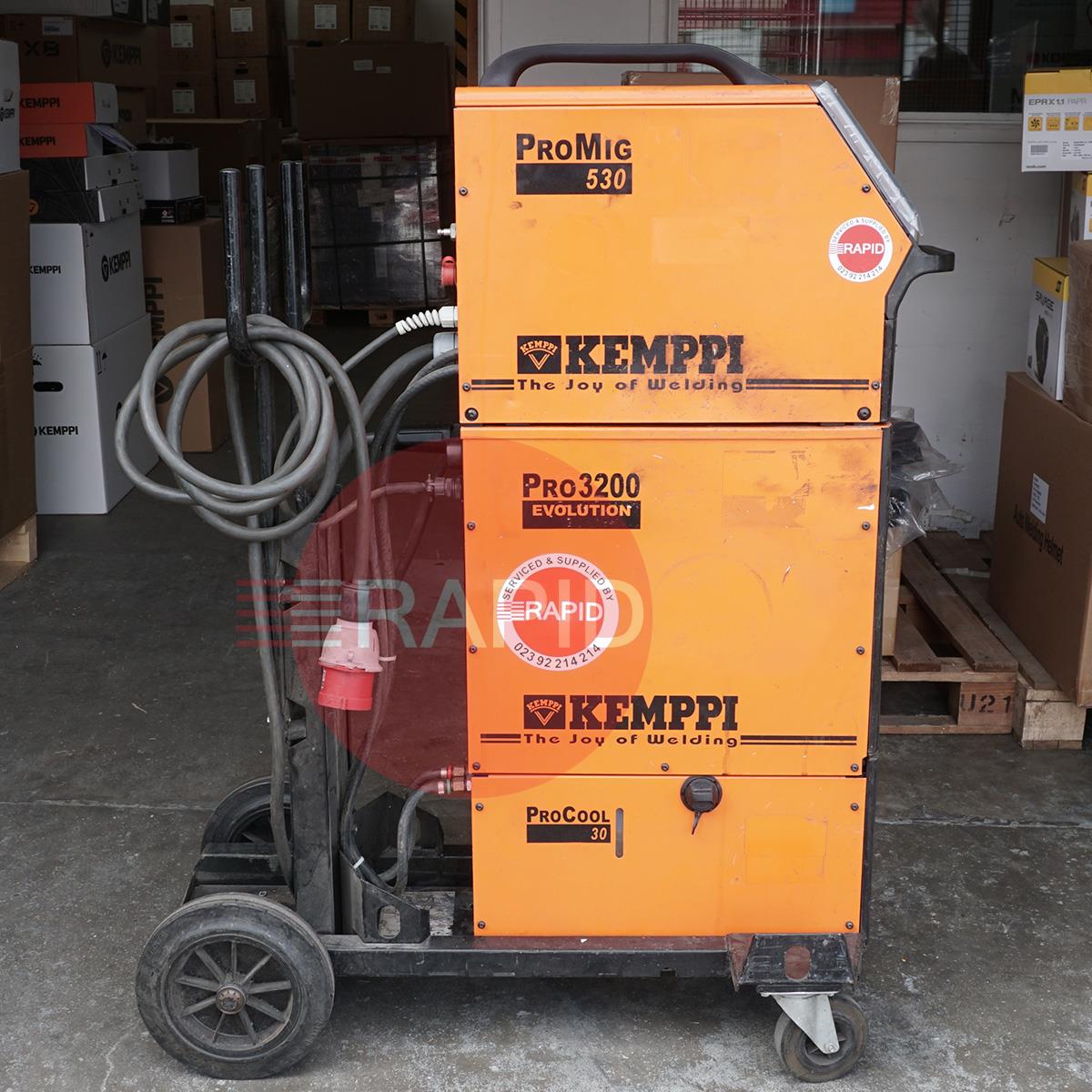

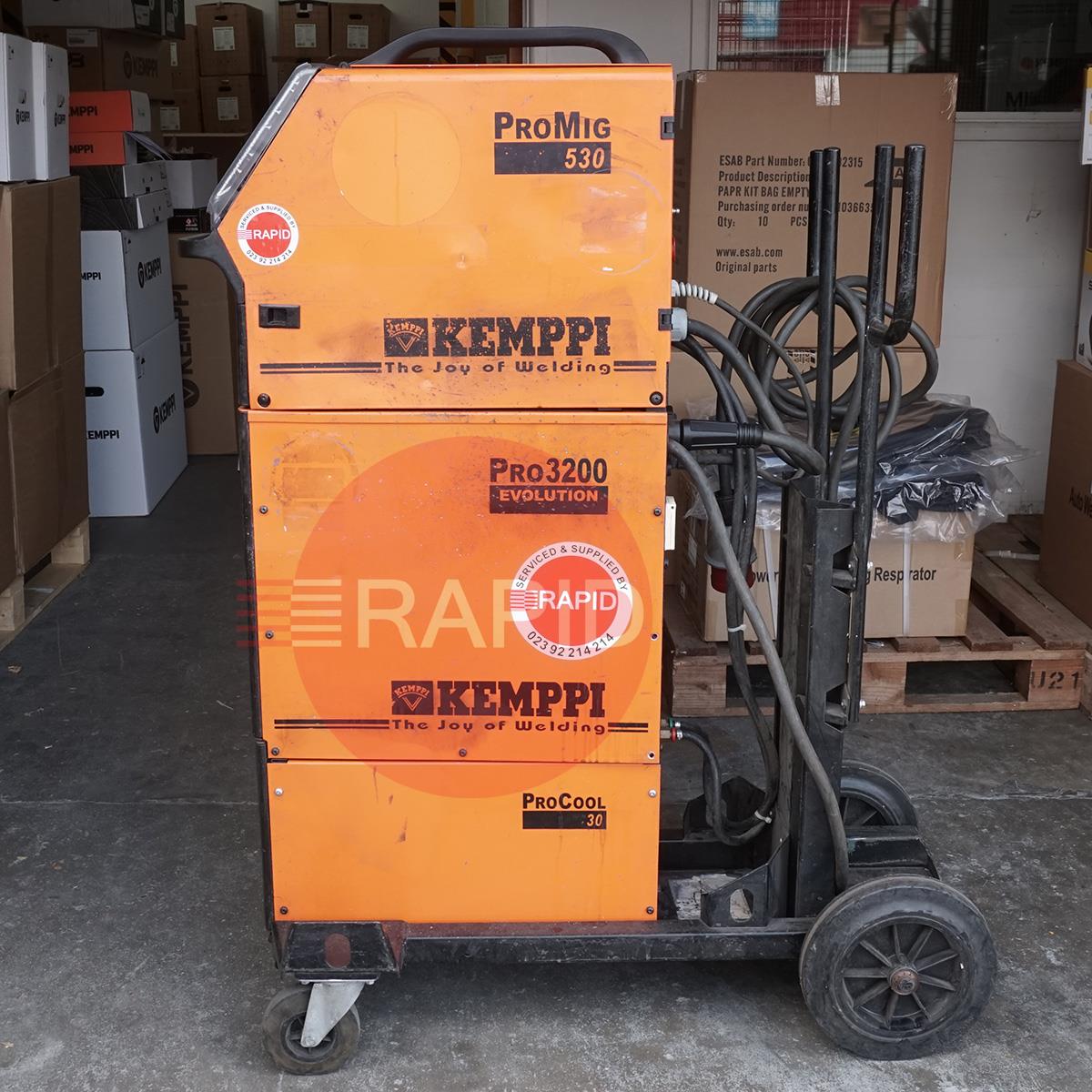

This used water cooled package includes the 3200 Power Source, ProMig 530 wire feeder with 1.0mm drive rolls, MXE control panel, Pro Cool 30 water cooler, earth return lead, gas hose and power lead with 400v plug. No Mig torch is included but this can be supplied at extra cost if required.

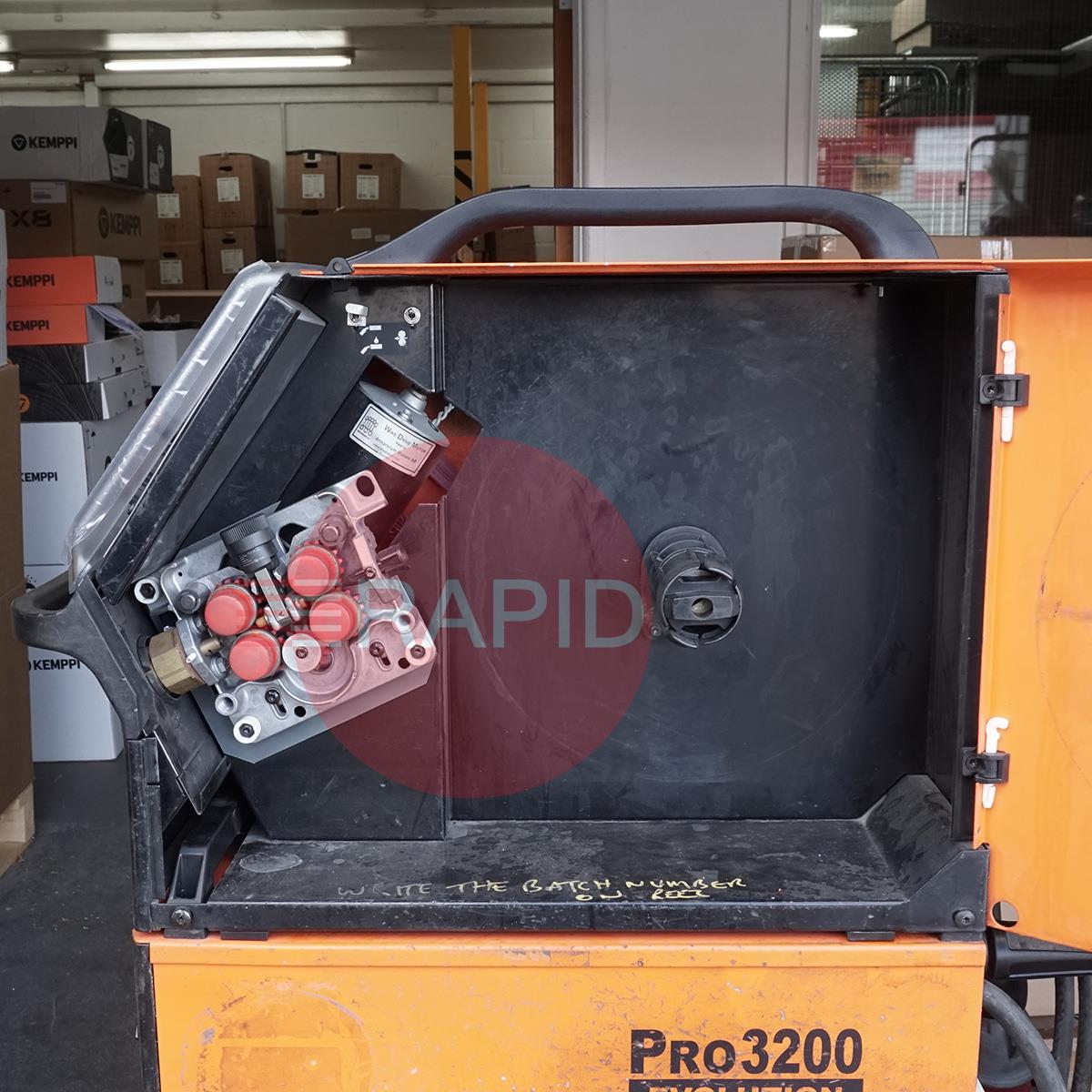

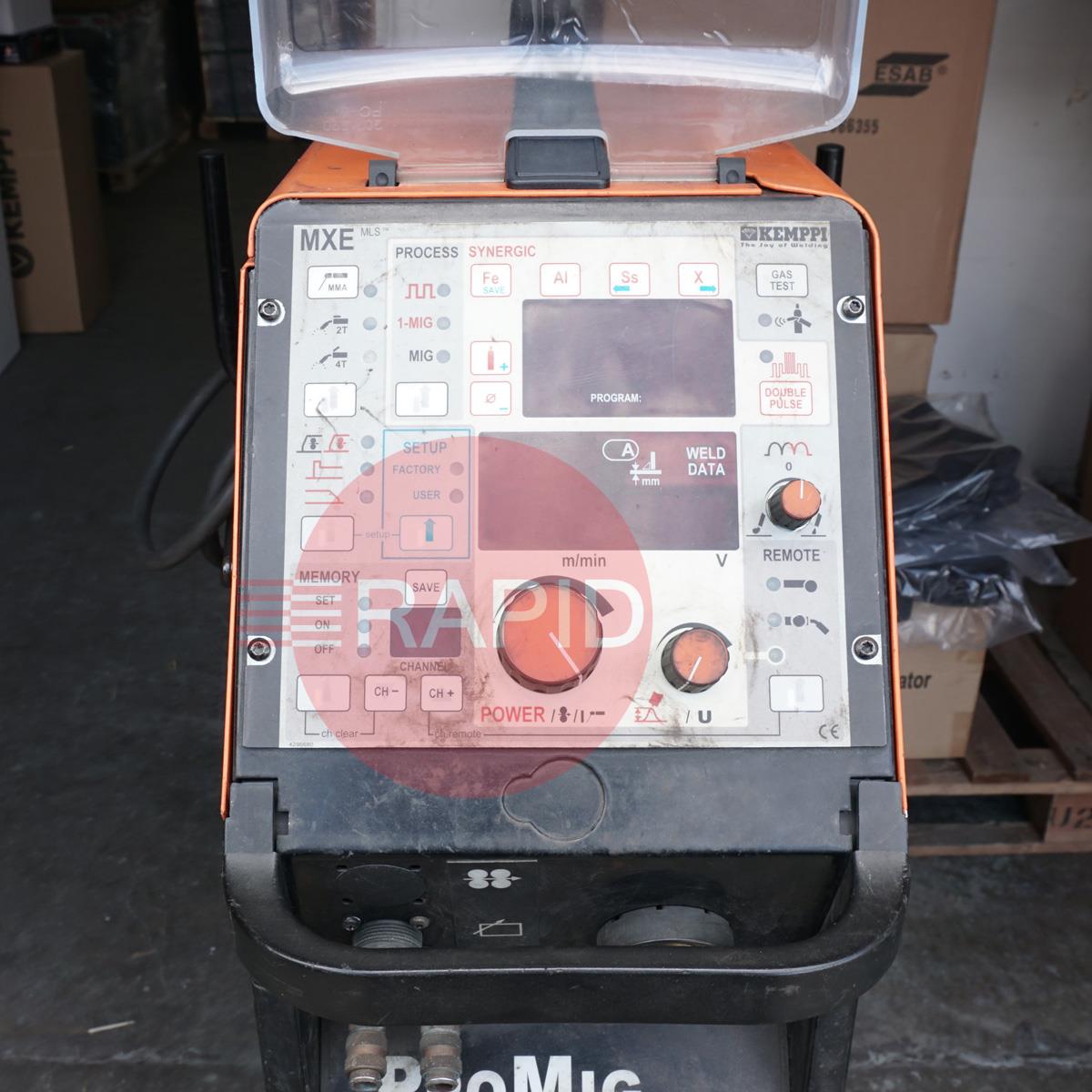

The Pro Evolution 3200 is a sophisticated digitally controlled pulse Mig with a 320A output. The feeder features 4 roll drive and is fitted with the MXE control panel which features the below.
- Pulse MIG / double pulse MIG
- MMA, MIG/MAG, synergic 1-knob MIG, and pulse MIG welding
- Gas test
- 20 channel memory
- Arc start and user tailored set-up options
Technical Specifications
- Connection voltage: 400 V, 50/60 HZ, 3 phase
- Rated power at maximum current: 13.3 kVA
- Connection cable: 4G6 H07RN-F 5 m
- Fuse, delayed: 25 A
- Load capacity 40° C: 320A / 32.8 V (100% ED)
- Welding range: 10A / 20V - 320A / 33V
- Open circuit voltage: 65 V
- Power factor at maximum current: 0.93
- Efficiency at maximum current: 0.85
- External dimensions: 530 x 230 x 520 mm
- Weight: 37 kg
