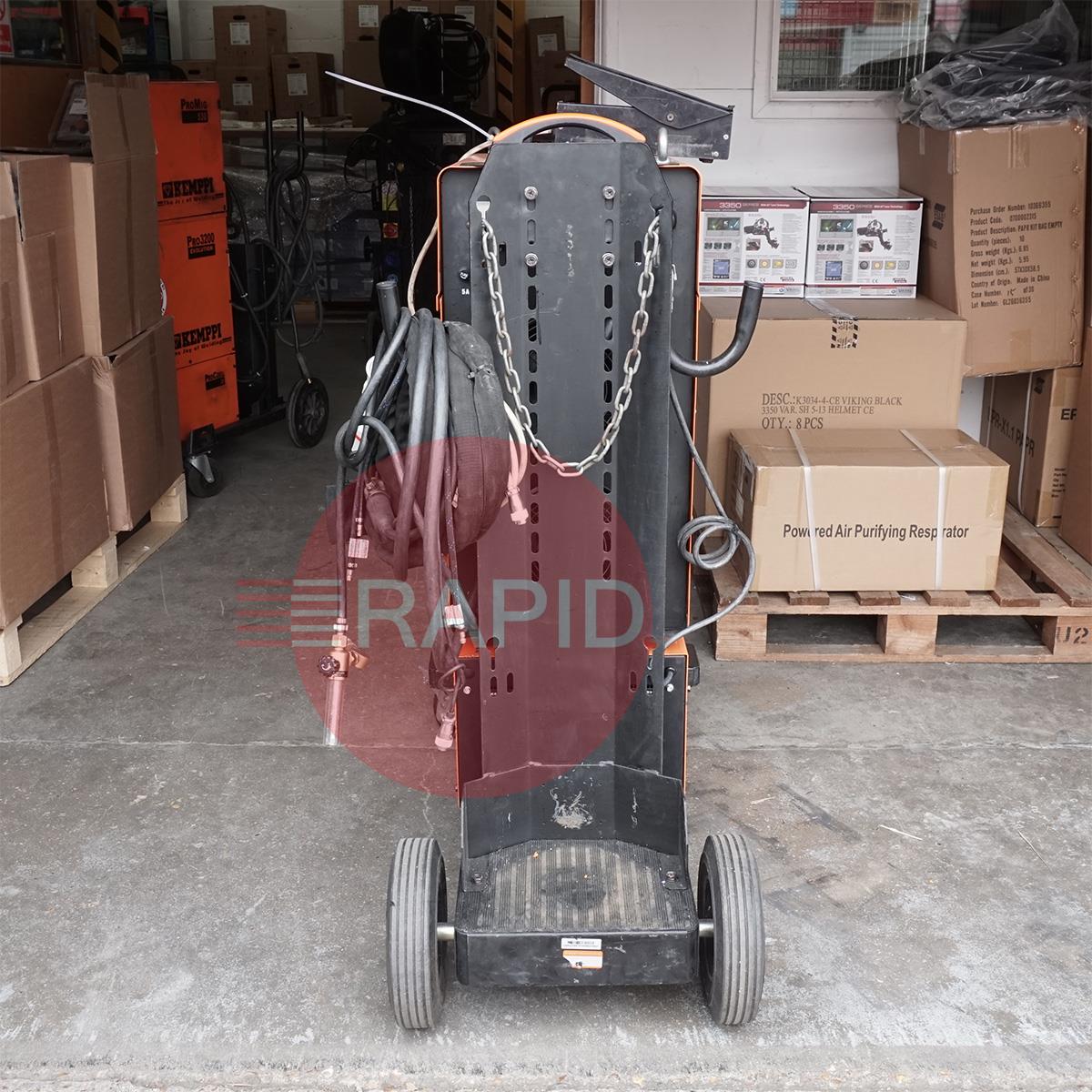

This package includes, Inverter Power Source, Water Cooler, Trolley, SR18 Tig Torch, Foot Pedal, Gas Hose, Earth Return and power lead with 5pin 400v Plug

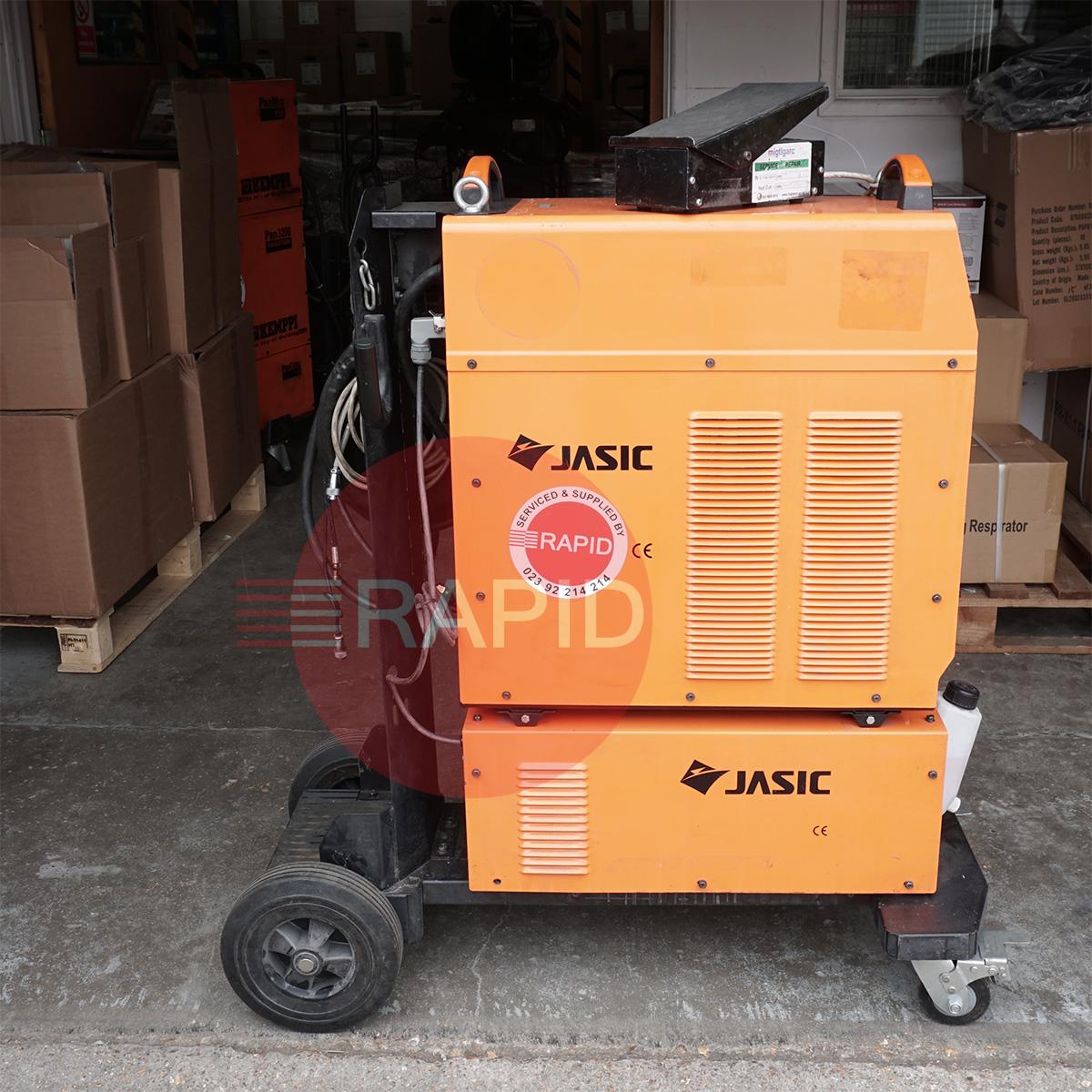

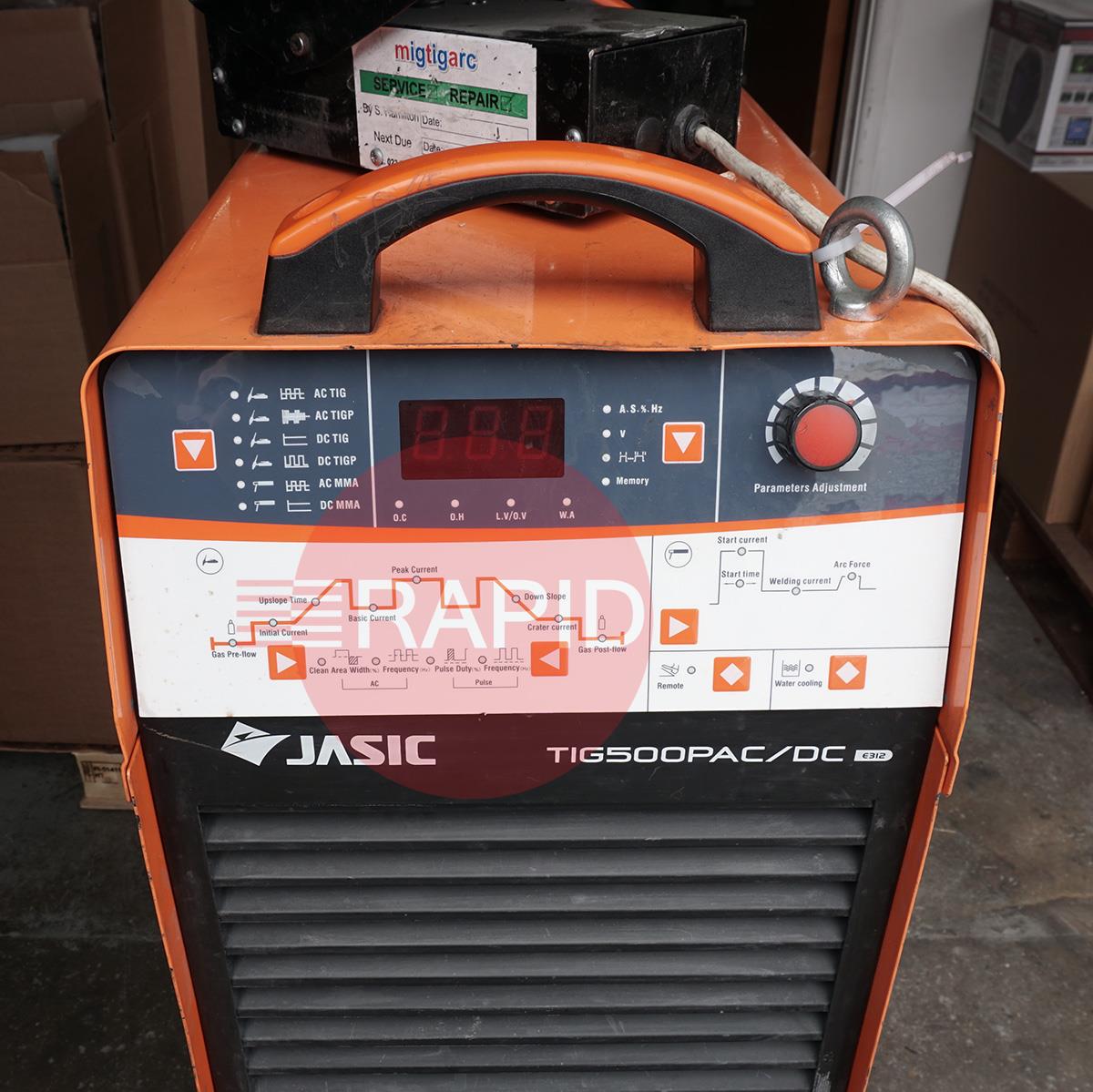

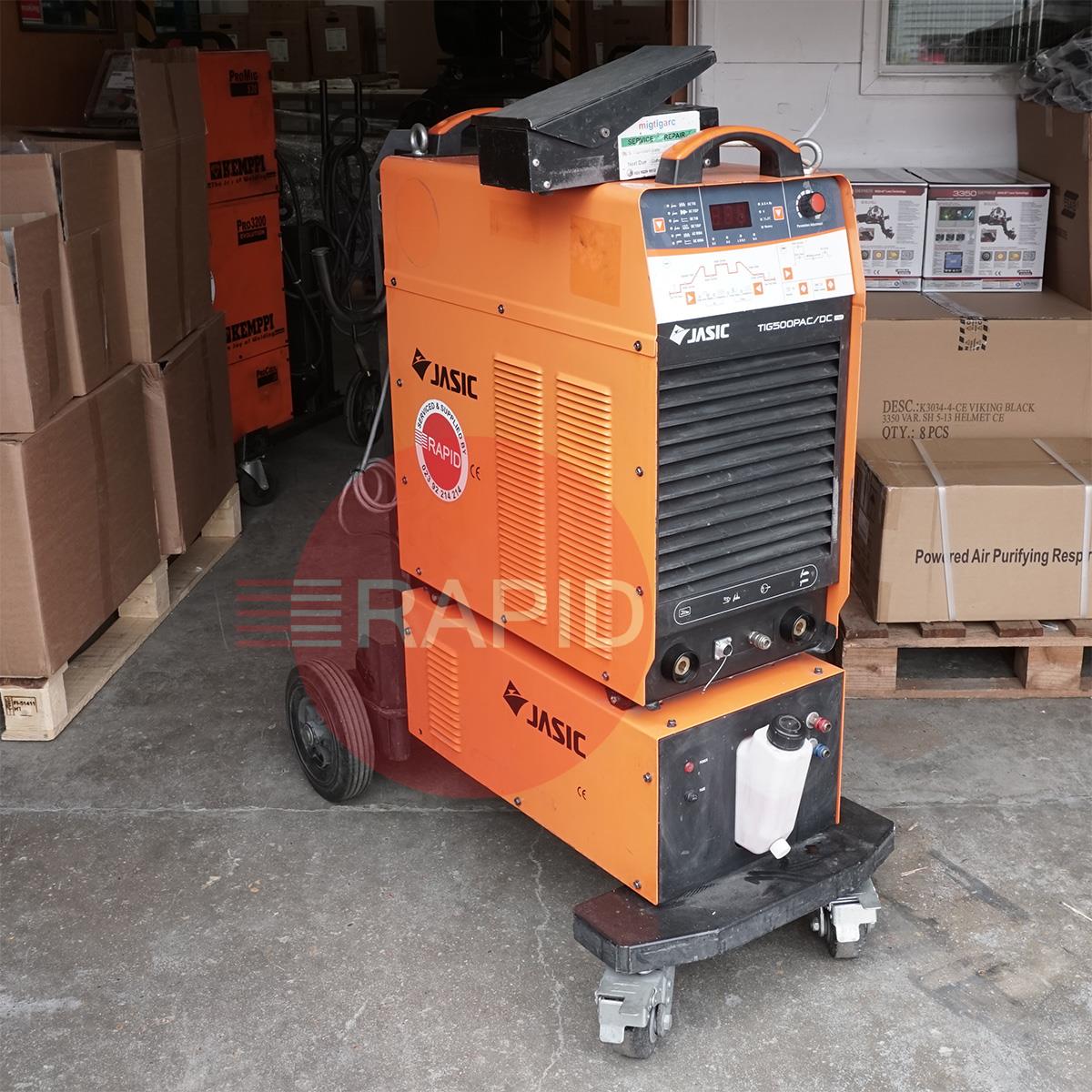

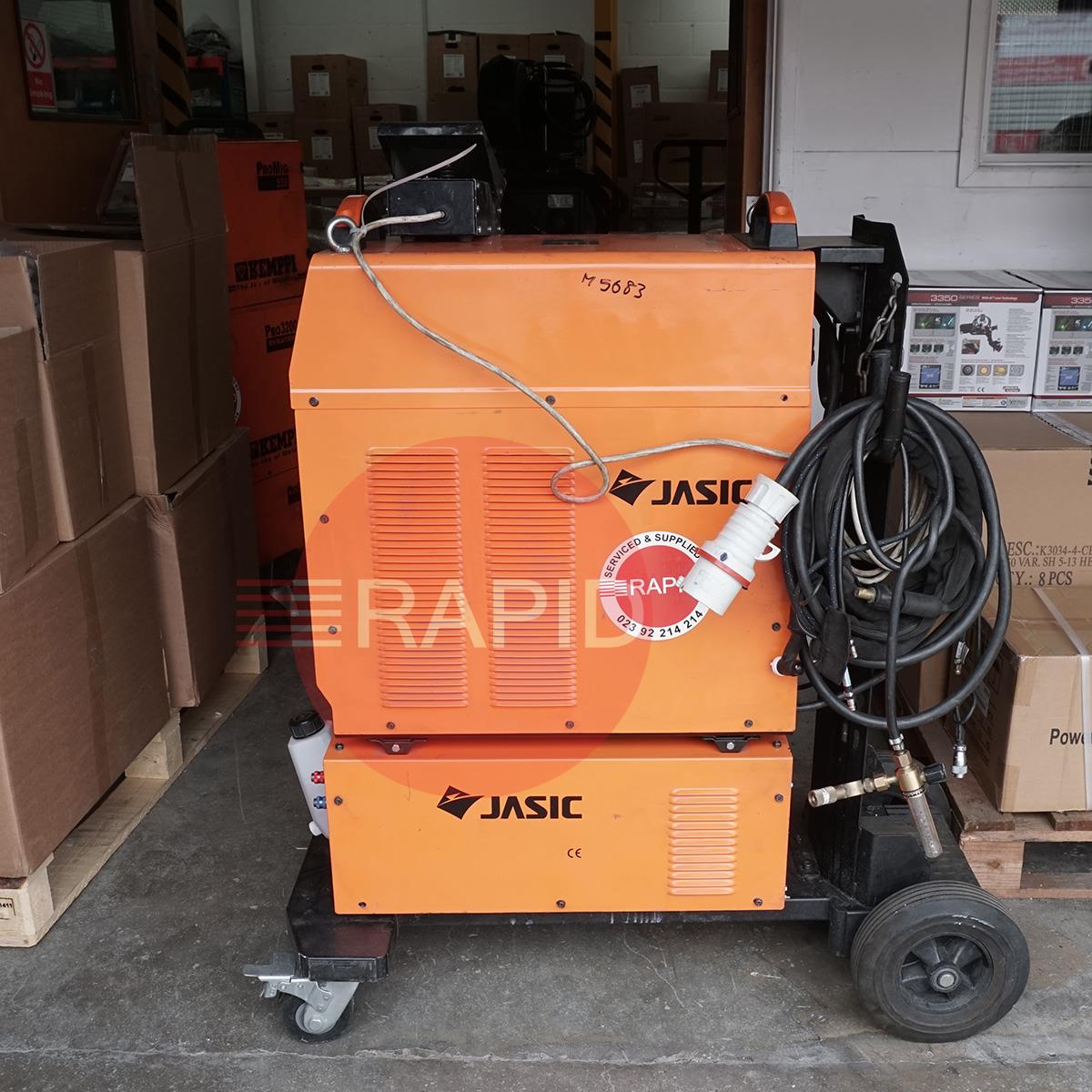

The JASIC TIG 500 Pulse AC/DC (Water cooled) is a technologically advanced three-phase inverter power source is suitable for medium to large production work. The innovative and user-friendly digital panel allows full control of the welding parameters. The excellent technical characteristics of the 500 AC/DC make it an ideal choice for professionally qualified TIG welders that require precise and reliable performance.
- Input Voltage: AC 400V, 50/60 HZ
- Ieff (A): 23
- Input Power (kVa): 21.5
- Currant Range (A): TIG 10 – 500 / MMA: 10 – 400
- Duty Cycle @ 40°C: 500A @ 60%
- No-Load Voltage (V): 74
- Pulse Frequency (Hz): AC 70 / DC 200
- Protection/Insulation Class: IP21S/F
- Dimension: 1080 x 510 x 1180mm
- Weight: 128kg
