Rapid Ref : HM100-2T

JEI MagBeast HM100 Magnetic Drill HM100-2T

£1253.07  EX VAT
SSP Suggested Selling Price = £1690.00  YOU SAVE £436.93
 Buy in 3 easy interest free payments of £417.69 with
Select Option

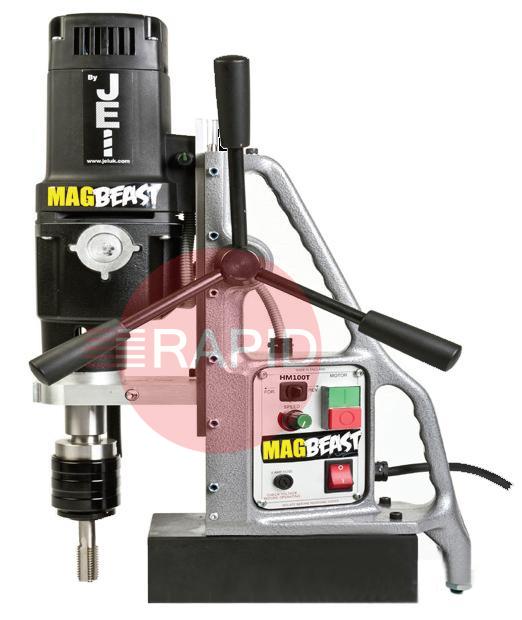

The MagBeast HM100 is a durable, heavy-duty, 3-morse taper drilling machine. A heavy-duty 1800-watt motor enables a large 100mm cutter capacity. Even with this large cutter capacity the HM100 weighs only 21Kg, offering an unrivalled weight-to-cutting capacity ratio. The HM100 has 250mm total drill travel allowing the use of 150mm (6") long cutters. This HM100T model includes a 2-speed variable gearbox, built-in forward /reverse operation and the ability to tap pre-drilled holes up to M30.

Product Details


Specification
Model: HM100T
Spindle: MT3
Weight: 21Kg
Max. Stroke: 250mm
Cutter Capacity: 100mm x 6" depth of cut
Tapping Capacity: M30
Twist Drill Capacity: 19mm with 3MT chuck 32mm with 3MT twist drill
Countersink Capacity: 55mm
RPM: 2 fixed speeds: 60 - 140 RPM, 200 - 470 RPM
Height: 480mm
Length: 360mm
Width: 130mm
Magnetic Base Dimensions: 102mm x 212mm
Magnet Base: Fixed
Voltage: 220v
