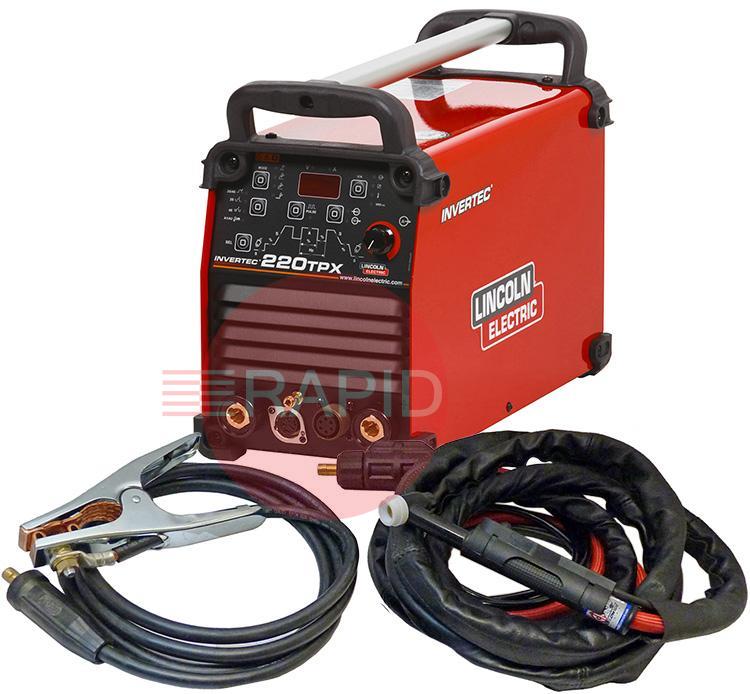

The Invertec 220 TPX is a compact DC Tig Pulse and Stick Inverter, combining a rugged industrial construction with excellent arc characteristics. Designed not only as a DC Tig welder, but also to operate as a stick welder with a variety of popular stick electrodes. Its portable rugged design makes it ideal for both shop or field use. The 220 TPX also features Power Factor Correction circuitry and is generator ready. This ready to weld CK Tig package includes, power source, CK TrimLine 26 4m Tig Torch with Switch & Sheath, 5m Ground Cable, gas connection kit & Gas Regulator (UK orders only).
Features
- Full function user friendly control panel with graph and numeric display makes it easy to set all welding parameters
- Perfect Tig HF starting with pre settable stating mode
- Complete Tig parameters setting: Pulse Tig with variable frequency that allows the welder to adjust the arc focus to suit the applications, 10 memory location for personalised weld setting, and Tig spot welding function.
- 3 Year Warranty
Includes CK's TrimLine 26 Torch
Trim-Line™ torches offer the same current ratings as the standard models they replace while providing a smaller, lighter design for greater comfort and ease of use.
Specification
Input Voltage: 115/230v 1ph
Current Range: 2 - 220A
Rated Output (TIG): 220A/18.6V/25%, 150A/16V/100%
Weight: 13kg
Dimensions: H 328mm x 212mm W x 465mm D
Protection Class: IP23
