DRAGON-110 Steelbeast Dragon Cutting & Bevelling Track Carriage For Oxy-Fuel - 110v
  • DRAGON-110 Steelbeast Dragon Cutting & Bevelling Track Carriage For Oxy-Fuel - 110v
  • DRAGON-110 Steelbeast Dragon Cutting & Bevelling Track Carriage For Oxy-Fuel - 110v
  • DRAGON-110 Steelbeast Dragon Cutting & Bevelling Track Carriage For Oxy-Fuel - 110v
  • DRAGON-110 Steelbeast Dragon Cutting & Bevelling Track Carriage For Oxy-Fuel - 110v
  • DRAGON-110 Steelbeast Dragon Cutting & Bevelling Track Carriage For Oxy-Fuel - 110v
Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

Rapid Ref : DRAGON-110

Steelbeast Dragon Cutting & Bevelling Track Carriage For Oxy-Fuel DRAGON-110

£1395.00  EX VAT
 Buy in 3 easy interest free payments of £465.00† with
Select Option

Shop Parts

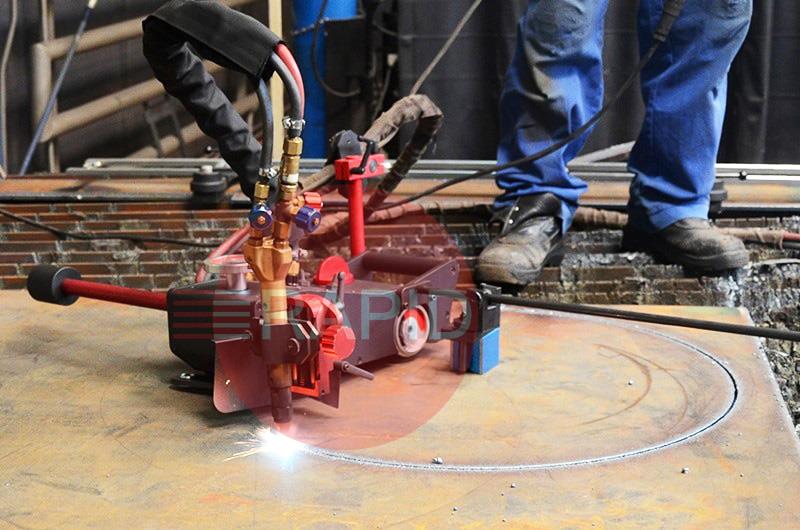

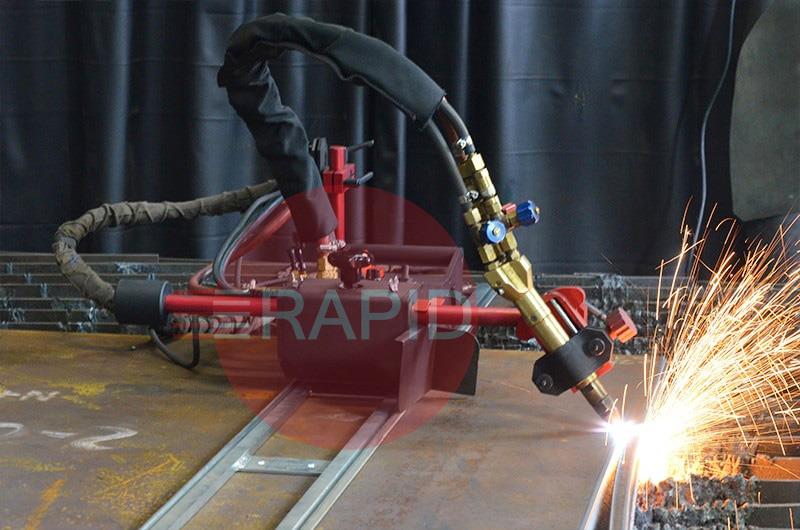

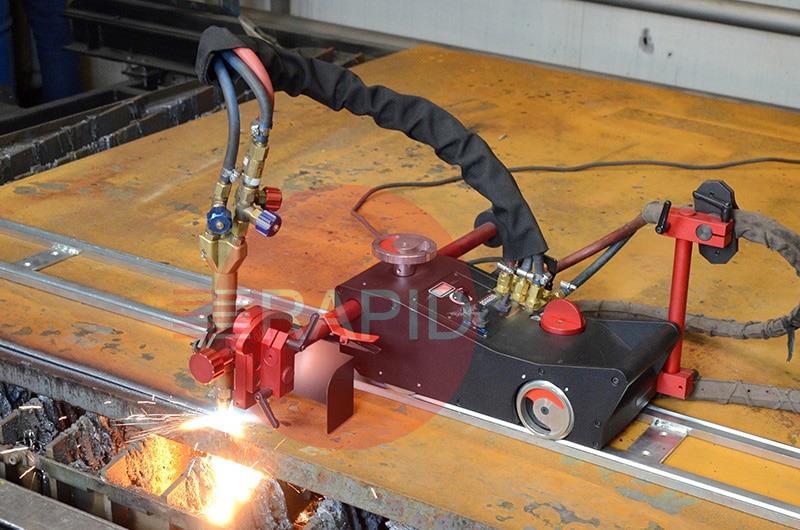

The Steelbeast Dragon is designed to transport different types of oxy-fuel cutting torches with a grip diameter of 28 - 35mm to perform machine-quality cutting and bevelling processes in various applications.

Features

  • State-of-the-art, digitally controlled track torch

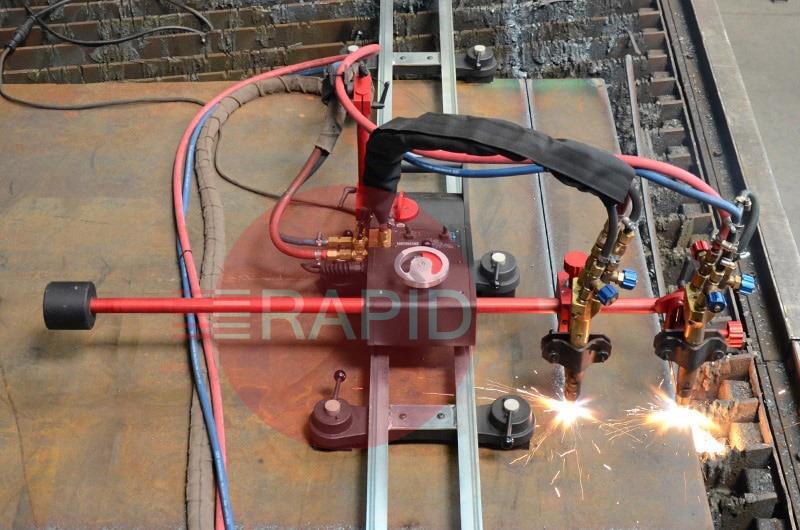

  • Cutting and bevelling up to 45° (also parallel using 2 torches)
  • Quick clamping torch holder for torch diameter from 28mm to 35mm
  • Advanced speed control system with implemented digital PID regulator
  • LED display with a readout of actual/set speed and report messages
  • Rigid heat-proof design
  • 2-wheel drive with auto-braking drive unit
  • Quick drive release switch for easy re-positioning

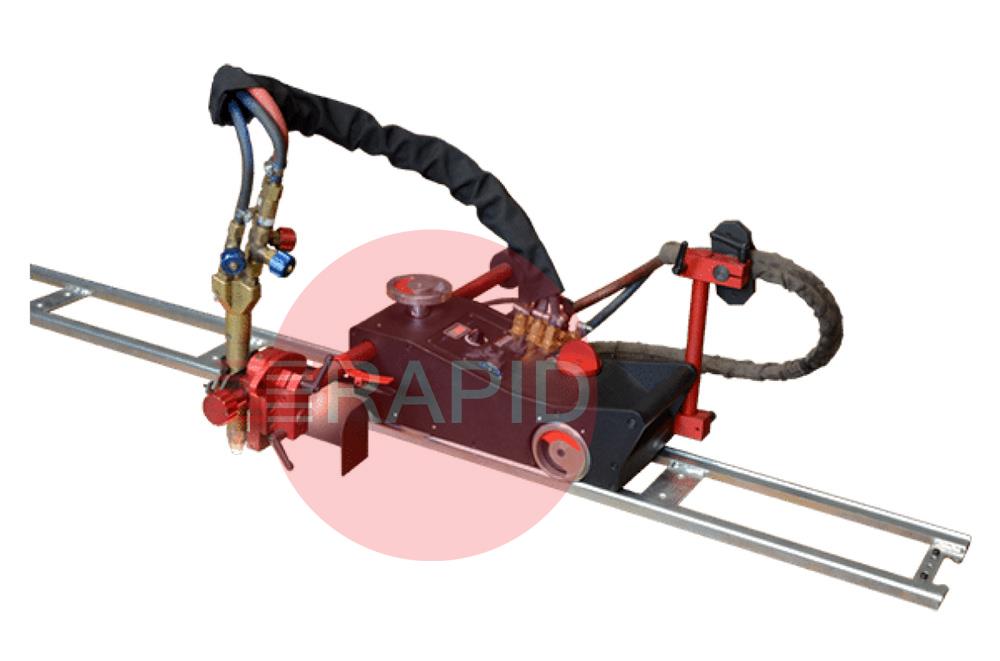

  • Runs on a rail or directly on a workpiece
  • Connectable rails to form various lengths

Product Details

Technical Specifications

  • Voltage: 110 – 230v, 50 – 60 Hz
  • Power: 20w
  • Operating position: Horizontal
  • Torch diameter: 28 - 35mm (1.10 - 1.38”)
  • Ground clearance: 8mm (0.31”)
  • Speed: 0 - 150 cm/min (0 - 59 in/min)
  • Weight: 16.8Kg (37.0 lbs)



Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   Steelbeast Dragon Operator's Manual
