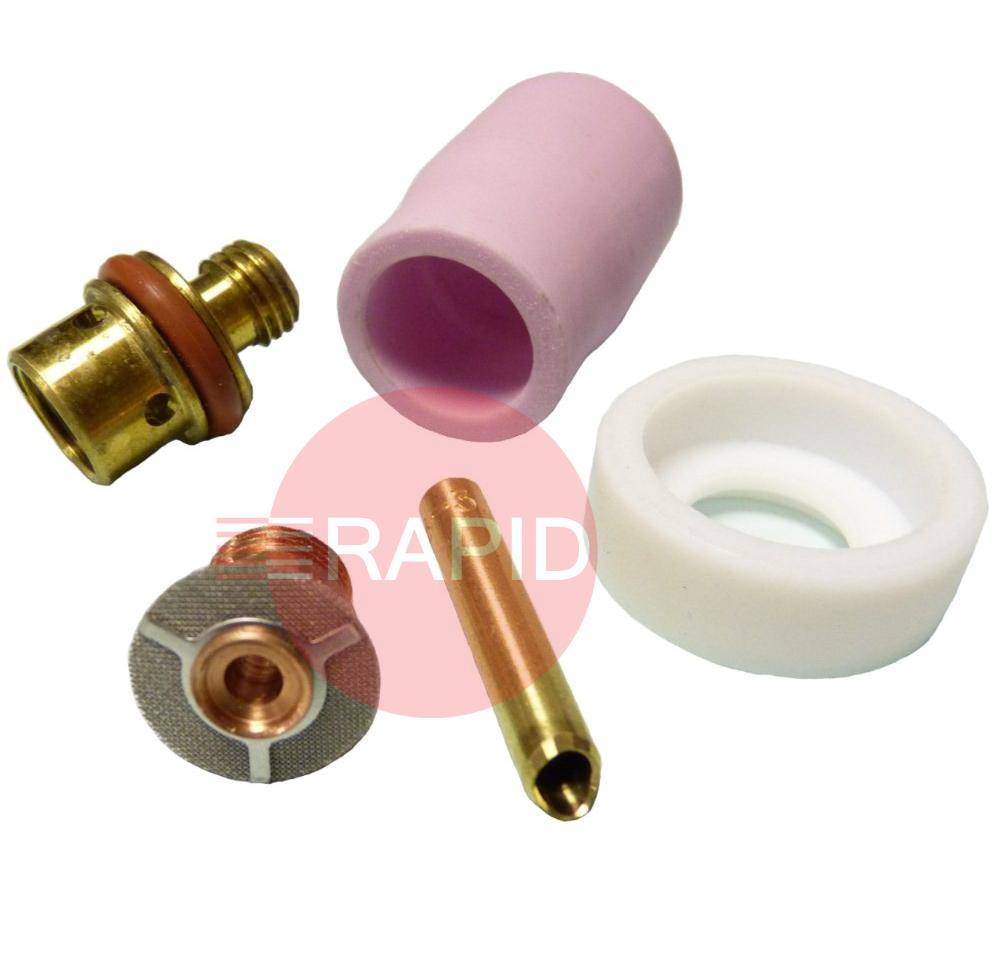

CK Worldwide's Gas Saver™ front-end kit allows users to save up to 40% of shield gas consumption while providing better shield gas coverage patterns. With better shielding gas coverage patterns the welder can extend the tungsten up to 6 x the diameter of the electrode beyond the edge of the gas cup (This is achieved in draft-free areas using argon gas).
Alumina push-on or Pyrex high-temperature glass cups are available. Alumina cups are durable, impact-resistant and handle high-temperature welding applications. Pyrex glass cups are used in applications where visibility is an issue such as inside corners, inside pipe, around tubing, etc.
The Gas Saver kits will retrofit 2 series (CK9, CK20) or competitive brand equivalents using a replaceable white Teflon heat shield on a silicon rubber torch body.
| Part # |
Description |
Quantity |
| 2A4GS |
CK #4 Alumina Cup - 2 Series Gas Saver, 6mm bore x 32.6mm length |
1 |
| 2C040GS |
CK Wedge Collet - 2 Series Gas Saver, 1.0mm |
1 |
| 2HSGS |
CK Standard Heatshield - 2 Series Gas Saver |
1 |
| 2CBGS |
CK Standard Collet Body - 2 Series Gas Saver, One Size Fits All |
1 |
| TAS040GS |
CK Tungsten Adapter w/ Screen - 2/3 Series Gas Saver, 1.0mm |
1 |
