90320223000 FEIN IBS 16 Industrial Angle Drill Jig (Rotary Drill *NOT* Included)
  • 90320223000 FEIN IBS 16 Industrial Angle Drill Jig (Rotary Drill *NOT* Included)
  • 90320223000 FEIN IBS 16 Industrial Angle Drill Jig (Rotary Drill *NOT* Included)
Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

Rapid Ref : 90320223000

FEIN IBS 16 Industrial Angle Drill Jig (Rotary Drill *NOT* Included) 90320223000

£664.00  EX VAT
SSP Suggested Selling Price = £845.45  YOU SAVE £181.45
 Buy in 3 easy interest free payments of £221.33† with

Industrial drill jig for drills with drilling capacity of up to 16 mm.

  • Lightweight, compact industrial drill jig with aluminium base plate for universal use, including drilling, tapping, reaming and countersinking.
  • Double drill motor guide for use with very large drilling tools.
  • Base plate with hole pattern for Demmeler and Siegmund System 28 welding tables.
  • Integrated coolant tank with flexible jointed hose.
  • Feed handwheel can be moved from one side to the other.
  • Carriage height adjustable without tools.

Product Details

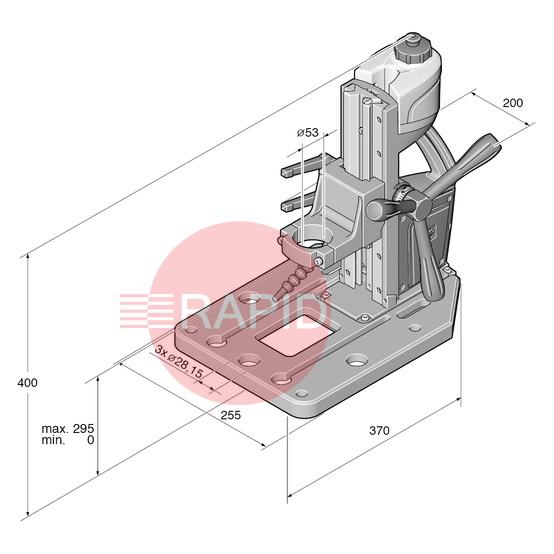

Specification

For collar Ø: 53mm
Twist drill max. Ø: 16mm
Tapping: M12
Countersinking max. Ø: 50mm
Reaming max Ø: 16mm
Stroke: 145mm
Total stroke range: 295mm
Weight according to EPTA: 8.00Kg

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   FEIN IBS 16 / MBS Manual Instruction
