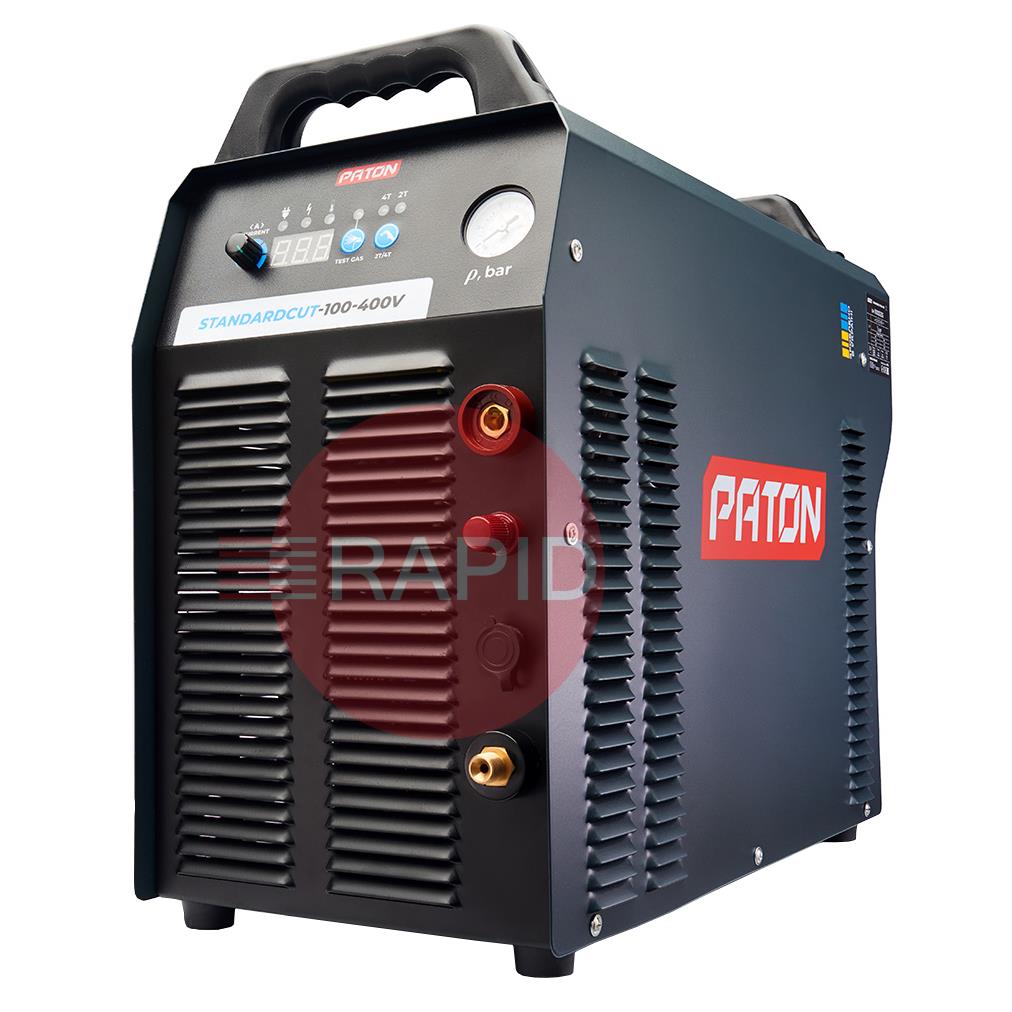

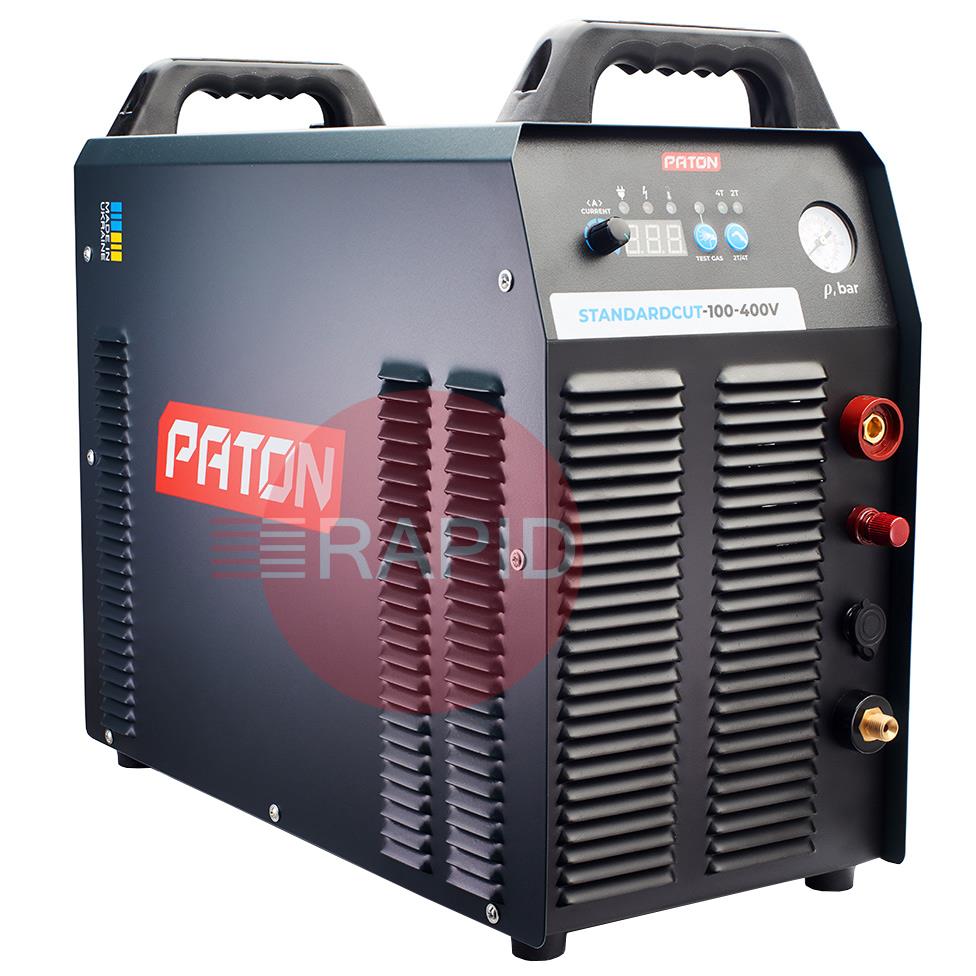

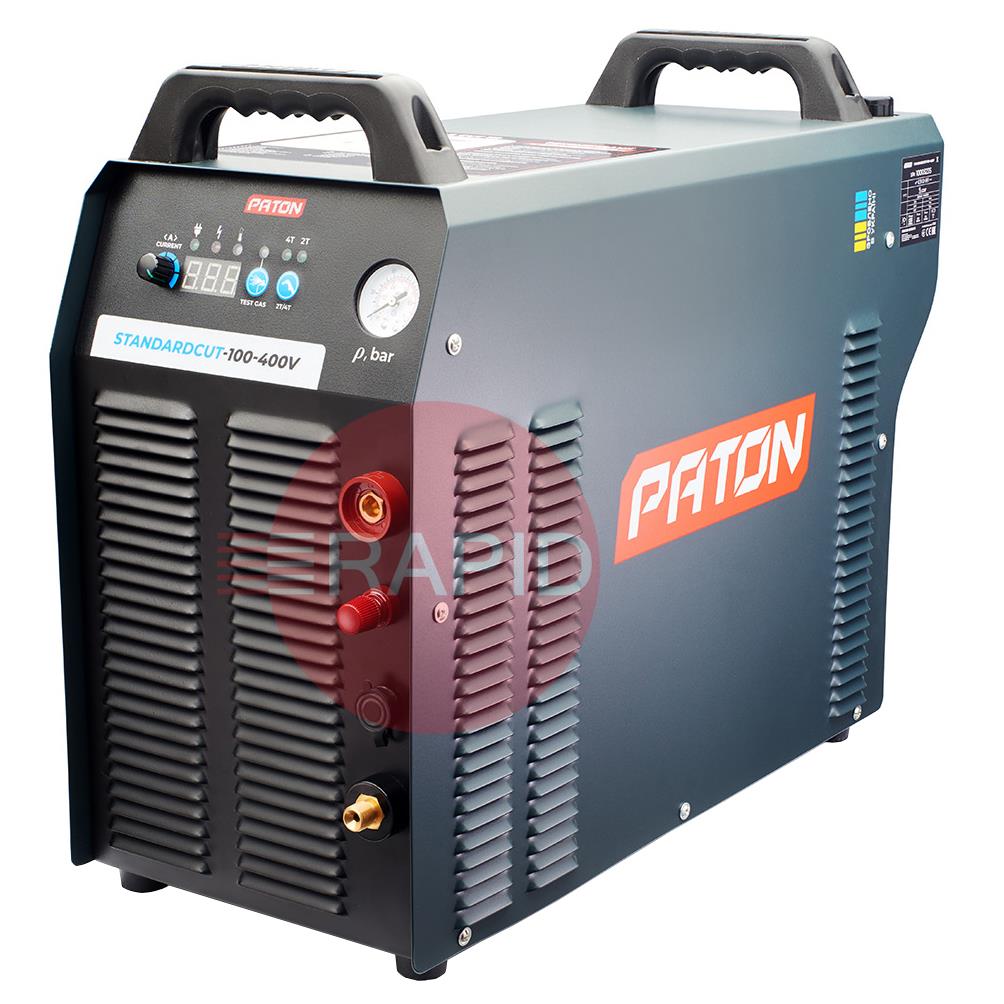

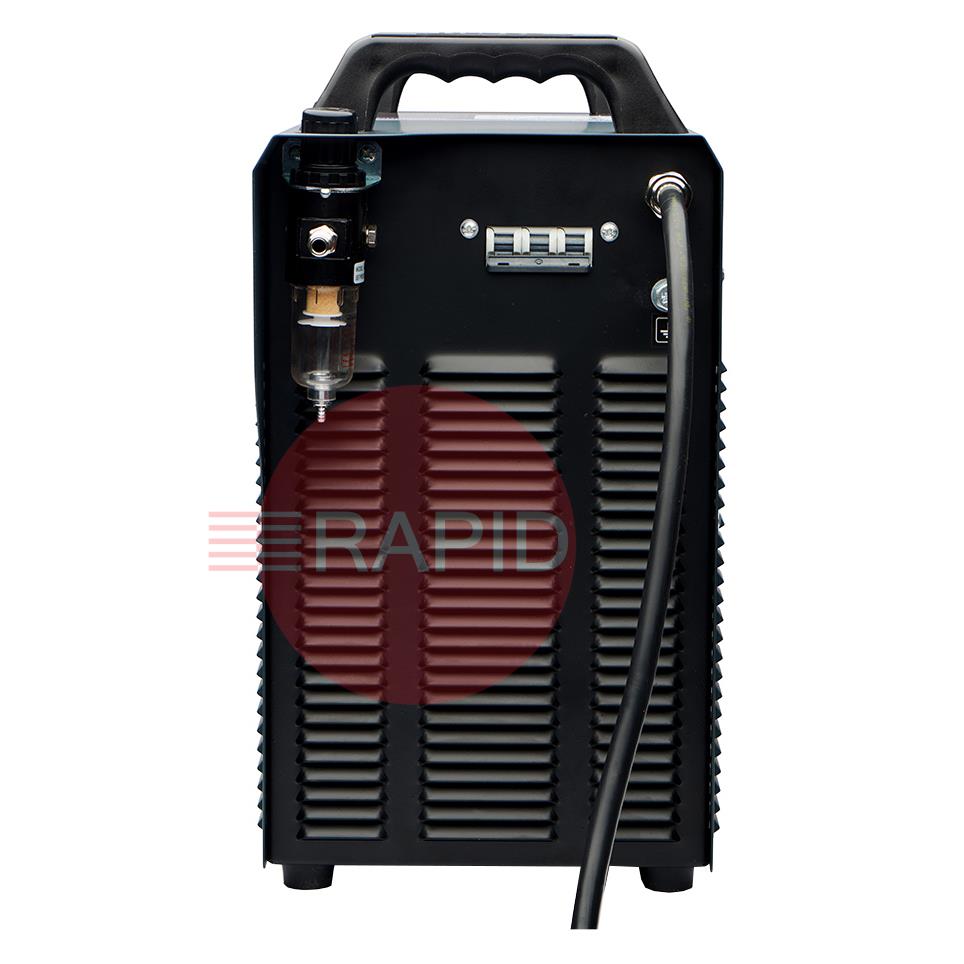

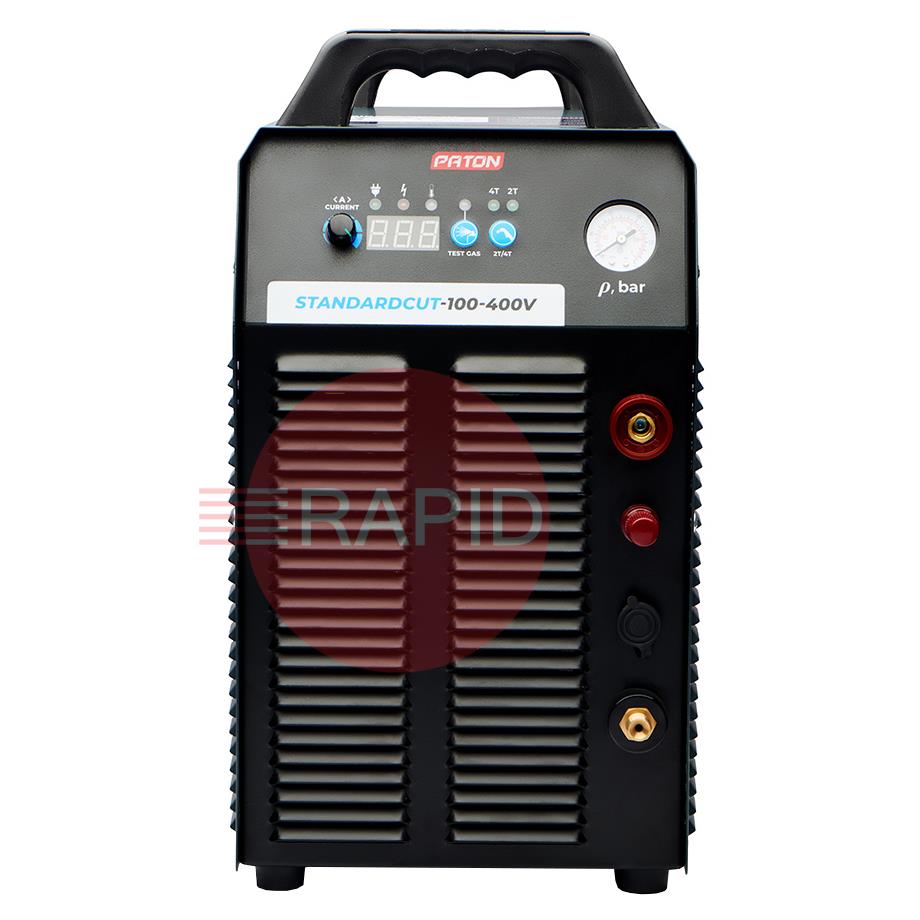

The Paton StandardCUT-100 inverter plasma cutter is designed for the manual cutting of metals and alloys by means of plasma arc in an air stream, enabling high-precision cuts to be made in metals of various textures and thicknesses up to 35 mm. A three-phase 400V mains supply powers the “Standard” series, combining high power with ease of use and small dimensions. Due to the inverter's higher frequency, the unit has a lower weight and size than a classic cut-off machine. The unit is equipped with a protective system in the event of insufficient air pressure, as well as a pneumatic system with two valves – for gentle arc ignition with reduced metal spatter and to extend the service life of the plasma torch consumables.
Specification
| Mains Voltage: |
400V 3ph |
| Cutting Current Range: |
35 - 100A |
| Duty Cycle: |
100A at 50%, 70A at 100%
|
| Nominal Power Consumption: |
16.5kVA
|
| Dimensions (L x W x H): |
560mm x 233mm x 440mm
|
| Weight: |
25.8kg
|
| Protection Class: |
IP23
|
Perfect For
- Garages
- Private Workshops
- Professional Workshops
