Rapid Ref : 1034020014

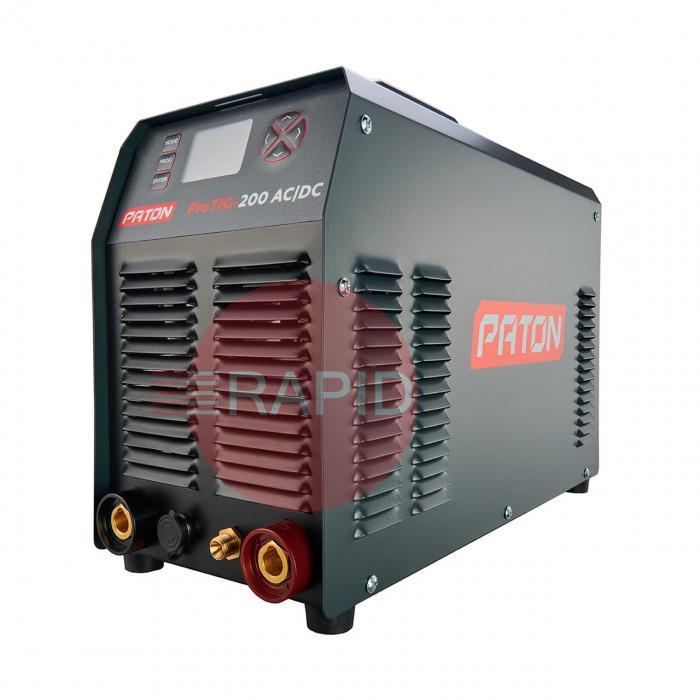

PATON ProTIG-200 AC/DC 200A UK Spec TIG Welder Package - 230v, 1ph
1034020014

Click here to see what's included
£918.33  EX VAT
SSP Suggested Selling Price = £1380.00  YOU SAVE £461.67
 Buy in 3 easy interest free payments of £306.11† with
Additional items to consider
Add optional Gas Regulator
GasiQ Maxex Bottom Entry Regulator x1 £63.73
GasiQ TIGEX I Argon/Mix Side Entry Regulator x1 £136.06
GasiQ TIGEX II Argon/Mix Side Entry Regulator x1 £138.97
Add a Flowmeter
Argon Flowmeter 0 to 14 LPM x1 £11.57
GasiQ TIGEX I Flowmeter. 20L x1 £58.10
Add optional Cleaning Fluid
Weld Cleaning Liquid - 1 Litre x1 £36.17
Select Foot Control
PATON WCP-321 Welding Foot Control x1 £67.60
Shop Parts
All machines supplied by Rapid Welding are load tested, have a gas hose with 3.8" fittings supplied and a UK plug adaptor included.

  • Professional multi-functional welding machine for welding aluminium, black and stainless steel
  • Ukrainian Engineering: Built by Paton™ in Europe, one of Europe’s most trusted welding brands with over 60 years of innovation
  • Advantages: Non-contact arc ignition, RIV welding function (spot welding), the ability to save welding settings, improved arc stabilisation, stepless adjustment of parameters, welding with pulse
  • 2-Year Warranty

Product Details

The PATON ProTIG 200 digital inverter welder is optimised for TIG (HF) inert gas shielded arc welding and direct current manual metal arc welding (MMA). The best solution for direct and alternating current welding of a wide range of materials: aluminium, aluminium alloys (TIG AC mode), parts and materials of steel, non-ferrous metals and copper alloys (TIG DC mode). The PATON ProTIG 200 inverter welder offers excellent contactless ignition, a stable, constant electric arc, high-quality welds, and ease of use. The device has a protection module against under- and over-voltage. By increasing the frequency of the input voltage supplied to the transformer, which is several times smaller, the device has dimensions and weight that are several times lower, with the same output parameters, compared to other devices with similar characteristics. The ProTIG 200 features a 45% duty cycle and a 2-year warranty.

Specification

Mains Voltage: 230V
Welding Current Range: 5 - 200A
Duty Cycle: 200A at 40%, 140A at 100%
Nominal Power Consumption: 6.3kVA
Dimensions (L x W x H): 492mm x 199mm x 352mm
Weight: 12.5kg
Protection Class: IP23

Perfect For

  • Automotive & Aerospace
  • Pipework
  • General Fabrication

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   PATON Pro-TIG User Manual

What's Included

BNZ-ABITIG-26 Binzel Abitig Grip 26 4 Meter Tig Torch (Air Cooled) 180A

Binzel Abitig Grip 26 4 Meter Tig Torch (Air Cooled) 180A

PTN-MMA16CBL PATON MMA Cable Kit, 3m Electrode Lead with 3m Earth Return, 16mm²

PATON MMA Cable Kit, 3m Electrode Lead with 3m Earth Return, 16mm²
PTN-MQUICKGAS PATON Quick Gas Connector

PATON Quick Gas Connector

WARRANTYP2 PATON 2 Year Warranty

PATON 2 Year Warranty

Warranty and Support

  • Two-Year Warranty
  • UK based service centre and support hotline
  • Access to spare parts and calibration service

Related Items

230v TIG Welders FAQs

Straight answers to the questions people ask most when choosing and using single phase TIG welders.

Should I choose DC or AC/DC?icon-minus-redicon-plus-red

DC machines weld steel, stainless steel, copper and other metals except aluminium. AC/DC machines add alternating current, which breaks up the oxide layer on aluminium and magnesium, so they are needed for those metals.

If you will weld aluminium at all, choose AC/DC. If you only weld steel, stainless and similar metals, DC is simpler and more economical. AC/DC machines normally also offer controls for balance and frequency, to fine-tune the arc.

What size of machine do I need?icon-minus-redicon-plus-red

Think about the thickest material you will weld and the process, and choose a rating with some margin. Aluminium needs considerably more current than steel for the same thickness, and heavier sections need more again.

Also consider duty cycle, which describes how much of each ten minute period the machine can weld at a given current. A machine rated well above your usual working current runs cooler, lasts longer and is more pleasant to use.

What is a multi-voltage TIG welder?icon-minus-redicon-plus-red

A multi-voltage machine adapts to different supplies, for example running on both 110 and 230 volts, and sometimes wider ranges. This suits people who move between site and workshop or use different supplies.

The output you get depends on the supply connected, with less at lower voltages. Check the specification at each voltage, and make sure the plug, cable and protection match the supply you connect to.

Is pulse useful, and what is it for?icon-minus-redicon-plus-red

Pulse TIG alternates between a higher peak current and a lower background current many times a second. This gives better heat control on thin material, reduces distortion and burn-through, and helps on out-of-position welds and where you want a consistent bead appearance.

It is not necessary for every job, but it is valuable for thin stainless, tube and precision work. Check that the pulse settings, range and frequency suit what you intend to weld.
