Rapid Ref : 1033025012

PATON StandardTIG-250 DC 250A UK Spec TIG Welder Package - 230v, 1ph
1033025012

Click here to see what's included
£491.67  EX VAT
SSP Suggested Selling Price = £615.00  YOU SAVE £123.33
 Buy in 3 easy interest free payments of £163.89† with
Additional items to consider
Add optional Gas Regulator
GasiQ Maxex Bottom Entry Regulator x1 £63.73
GasiQ TIGEX I Argon/Mix Side Entry Regulator x1 £136.06
GasiQ TIGEX II Argon/Mix Side Entry Regulator x1 £138.97
Add optional Gas Flowmeter
Argon Flowmeter 0 to 14 LPM x1 £11.57
GasiQ TIGEX I Flowmeter. 20L x1 £58.10
Add optional Cleaning Fluid
Weld Cleaning Liquid - 1 Litre x1 £36.17
Shop Parts
All machines supplied by Rapid Welding are load tested, have a gas hose with 3.8" fittings supplied and a UK plug adaptor included.

  • Compact & Portable HF DC TIG and MMA power source
  • Ukrainian Engineering: Built by Paton™ in Europe, one of Europe’s most trusted welding brands with over 60 years of innovation
  • Advantages: Non-contact arc ignition, improved arc stabilisation, stepless parameter adjustment, pulse welding, thermal protection system
  • 3-Year Warranty

Product Details

PATON StandardTIG 250 digital inverter welder is optimised for TIG (HF) inert gas shielded arc welding, manual submerged electrode arc welding (MMA) and semi-automatic MIG/MAG arc welding (as a source with external feeder) with direct current. Each of the methods mentioned above allows us to use pulsed current (PULSE function). The StandardTIG 250 features a 64% duty cycle and a 3-year warranty.

Specification

Mains Voltage: 230V
Welding Current Range: 12 - 250A
Duty Cycle: 250A at 45%, 167A at 100%
Maximum Power Consumption: 9.4kVA
Dimensions (L x W x H): 330mm x 115mm x 262mm
Weight with accessories: 6.3kg
Protection Class: IP33

Perfect For

  • Field Work
  • Workshops
  • Agriculture

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   PATON Standard-TIG User Manual

What's Included

PATON-CASE PATON Carry Case

PATON Carry Case

PATON-SSTRAP PATON Shoulder Strap

PATON Shoulder Strap

PTN-16CBL3 PATON 3m Earth Return, 16mm²

PATON 3m Earth Return, 16mm²

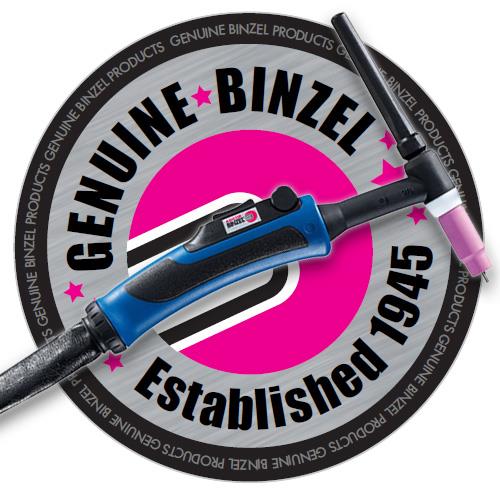

PTN-ABI26-4 Genuine Binzel ABITIG 26 4m Tig Torch for use with PATON TIG & Multi Process machines

Genuine Binzel ABITIG 26 4m Tig Torch for use with PATON TIG & Multi Process machines

PTN-MQUICKGAS PATON Quick Gas Connector

PATON Quick Gas Connector

WARRANTYP3 PATON 3 Year Warranty

PATON 3 Year Warranty

Warranty and Support

  • Three-Year Warranty
  • UK based service centre and support hotline
  • Access to spare parts and calibration service

Related Items

230v TIG Welders FAQs

Straight answers to the questions people ask most when choosing and using single phase TIG welders.

How much power can I get from a 230v supply?icon-minus-redicon-plus-red

The supply limits the maximum welding current. A standard 13 amp socket gives less power than a dedicated higher-rated supply, so the output you can use continuously may be lower than the machine's maximum. Check the data plate for the input current at full output, and what protection it needs.

For higher currents or heavier duty, a dedicated circuit installed by a competent electrician may be needed. Do not assume a plug-in connection will suit full output.

Should I choose DC or AC/DC?icon-minus-redicon-plus-red

DC machines weld steel, stainless steel, copper and other metals except aluminium. AC/DC machines add alternating current, which breaks up the oxide layer on aluminium and magnesium, so they are needed for those metals.

If you will weld aluminium at all, choose AC/DC. If you only weld steel, stainless and similar metals, DC is simpler and more economical. AC/DC machines normally also offer controls for balance and frequency, to fine-tune the arc.

What is a multi-voltage TIG welder?icon-minus-redicon-plus-red

A multi-voltage machine adapts to different supplies, for example running on both 110 and 230 volts, and sometimes wider ranges. This suits people who move between site and workshop or use different supplies.

The output you get depends on the supply connected, with less at lower voltages. Check the specification at each voltage, and make sure the plug, cable and protection match the supply you connect to.

Is pulse useful, and what is it for?icon-minus-redicon-plus-red

Pulse TIG alternates between a higher peak current and a lower background current many times a second. This gives better heat control on thin material, reduces distortion and burn-through, and helps on out-of-position welds and where you want a consistent bead appearance.

It is not necessary for every job, but it is valuable for thin stainless, tube and precision work. Check that the pulse settings, range and frequency suit what you intend to weld.
