Rapid Ref : 090-002042-00502

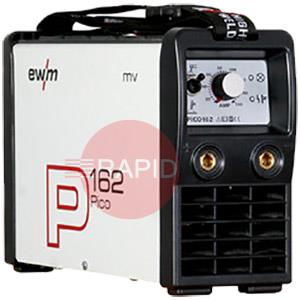

EWM Pico 162 Multi Voltage MMA Inverter Welding Power Source - 110/230v, 1ph
090-002042-00502

Name: EWM Pico 162 Multi Voltage MMA Inverter Welding Power Source - 110/230v, 1ph
SKU: 090-002042-00502
Price: 744.32 GBP

£744.32 EX VAT

SSP Suggested Selling Price = £1041.00 YOU SAVE £296.69

Buy in 3 easy interest free payments of £248.11^† with

Additional items to consider

Inverter welding machine, DC, automatic mains voltage adaptation
MMA and TIG lift arc welding
Arcforce, hot start, antistick
Portable, shoulder strap included
Overvoltage protection: No damage to the machine caused if inadvertently connected to 400V mains voltage

Brochures & Manuals

BROCHURES & MANUALS

View Brochure

EWM Pico 162 Operating Instructions

110v Arc Welders FAQs

Straight answers to the questions people ask most when choosing and using a 110 volt arc welder.

How much welding power can I get from a 110 volt supply?

A 110 volt supply limits the current the welder can draw, so the maximum welding output is lower than on a 230 volt supply. In practice this means 110 volt machines are suited to smaller electrodes and lighter to medium work rather than heavy, thick-section welding.

Many dual voltage machines give less output on 110 volts than they do on 230 volts. Check the maker's output figures at the voltage you will actually use, not just the headline rating.

What is a dual voltage welder and how does it work?

A dual voltage or multi-voltage welder detects or is set to accept either a 110 volt or a 230 volt supply, so one machine works on site and in the workshop. Many are inverters that adjust internally.

The welding current you can use is normally lower on the lower voltage, so read the data plate and manual for the output at each input. Always use the correct plug and supply for the voltage in use, and never try to fit a different plug that does not match the supply rating.

What supply and plug does a 110 volt arc welder need?

Site 110 volt equipment normally uses a yellow industrial plug and socket, usually at a particular current rating. The supply must be able to provide the current the welder draws, and the plug and cable must be rated for it.

A welder drawing more current than the supply or plug is rated for will trip protective devices or overheat the cable. Check the current draw on the welder's data plate and make sure the supply, transformer or generator can provide it.

Can I run a 110 volt welder from a site transformer or generator?

Often yes, but the transformer or generator must be big enough for the current the welder draws, with enough capacity left for other equipment connected at the same time. An undersized supply makes the arc unstable and can cause cut-outs.

For generators, check the output rating covers the welder's input requirement, and ask whether the generator suits inverter equipment. Follow the generator and welder manufacturers' guidance and any site rules.

See all 6 questions for this category
