*Comes included with the power source with 3m work lead, 4m Exeor TIG SR 17 torch and 4m gas hose.*
Advanced features, delivered simply.

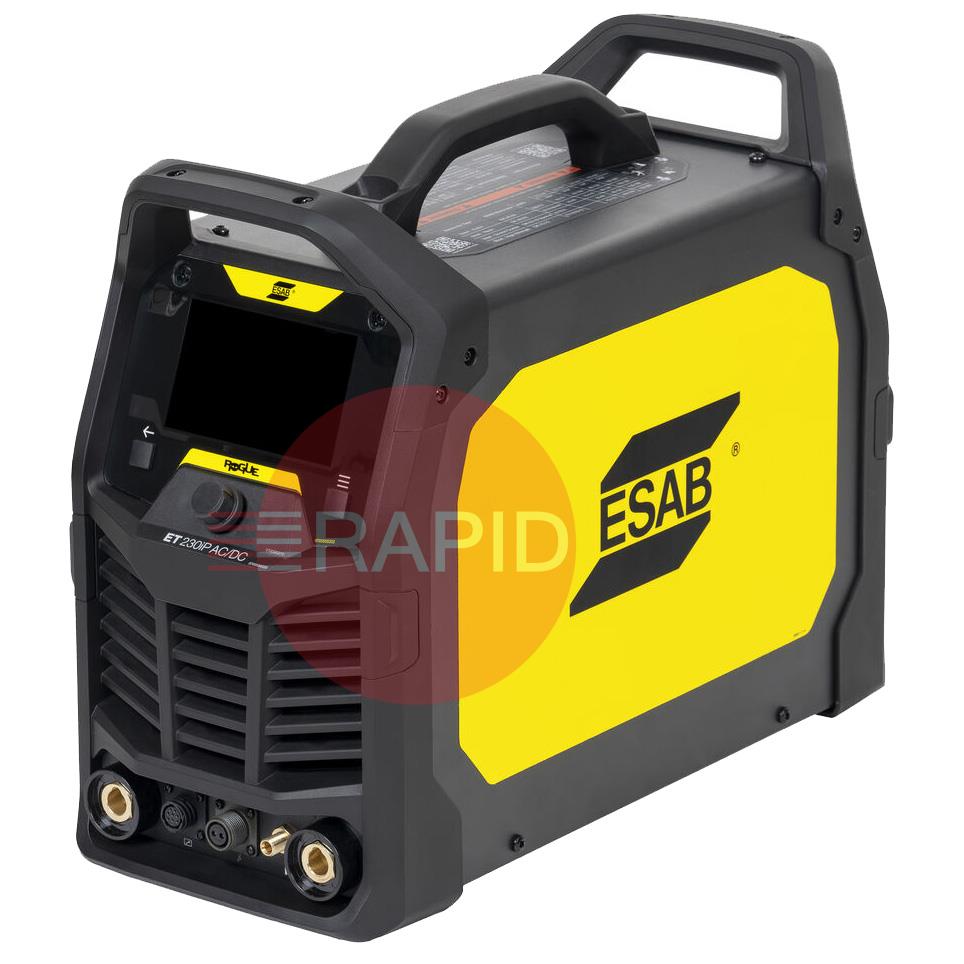

The Rogue ET 230iP AC/DC is a portable, high quality,
professional AC/DC TIG welder with extended parameter options to excel at
everyday aluminium, stainless steel and carbon steel welding.
- Various AC/DC waveforms (square, soft square, sinusoidal, triangle) for optimal energy transfer
- TIG AC and DC pulse up to 200 Hz for increased control of heat input and weld pool.
- Built-in PFC circuit ensures a stable arc, even with extra-long input cables, up to 100 m
- High visibility intuitive 5-inch colour screen interface reduces downtime and improves accuracy
- Dual-current mode switches between two output current levels to control the heat input and the size of the weld pool
- Easy access to saved jobs by torch trigger
- Modular system with tool-less connection to trolley
- Exeor TIG torch included

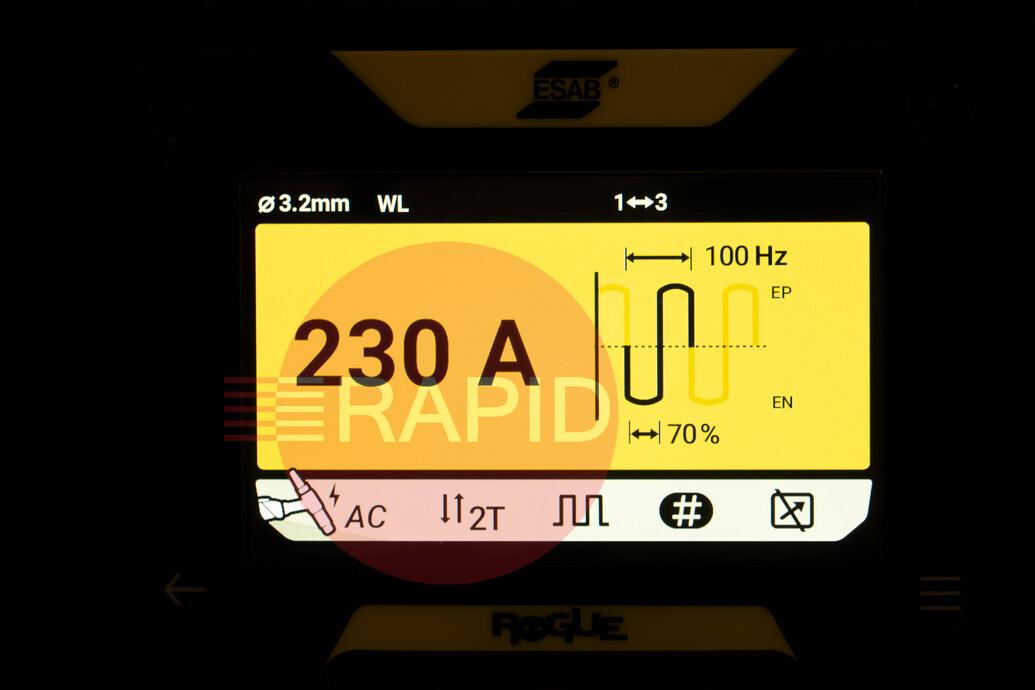

An intuitive graphical user interface with a 5-inch colour display brings new functionality for quick and easy adjustments. The machine can tackle a wide range of thicknesses, including very thin plates.
Customisable waveshapes (square, soft square, sinusoidal, triangle) enable optimised heat input for high penetration on thicker metals and low distortion on thin sheets. Pulsing capabilities in both DC and AC TIG offer enhanced weld puddle control, allowing the welder to tailor the arc further for multiple applications.
TIG arc starts are crafted based on selected tungsten electrode diameter and type for optimum performance. Durable housing design combines robustness and functionality with multiple lift points for easy manoeuvrability in workshop and field applications.
