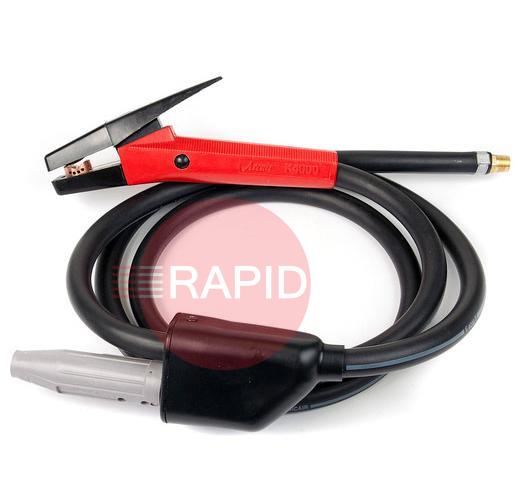

Arcair Angle-Arc K4000 Extreme Manual Gouging Torch, with 2.1m (7ft) 360° Swivel Cable & Insulated Hook-Up Kit.
Arcair Angle-Arc Torches are highly efficient metal removal tools for fabrication jobs in steel fabrication plants, shipyards, railroads, farms.......anywhere people want to save time and money.
They speed up weld removal, back gouging, edge preparation, defect repair and many other metal removal jobs. They are ideal for almost all metals – with little or no deformation – because the heat input is so low.
The Arcair Angle-Arc K3000 Extreme is a medium-duty gouging torch operating to a maximum of 600 amps. Angle-Arc torches feature a natural 15° torch angle for greater operator comfort. The insulated hook-up kit provides a fully enclosed power and air connection, which protects the electrical connection from touching the work when it is in operation and eliminates the need to insulate it with electrical tape. Typical applications include general repair and maintenance jobs in mining, construction, and all types of metal fabrication.
Specification
Accepts: 4mm – 9.5mm Round Electrodes, 9.5mm & 15.9mm Flat Electrodes
Amperage Range: 90 – 600A
Compressed Air Pressure: 80psi (5.6Kg/cm²)
Compressed Air Flow Rate: 22cfm
