  • ZX3664 Tecna Rhino New Gen Spot Welder 14000 Amps
 Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

Rapid Ref : ZX3664

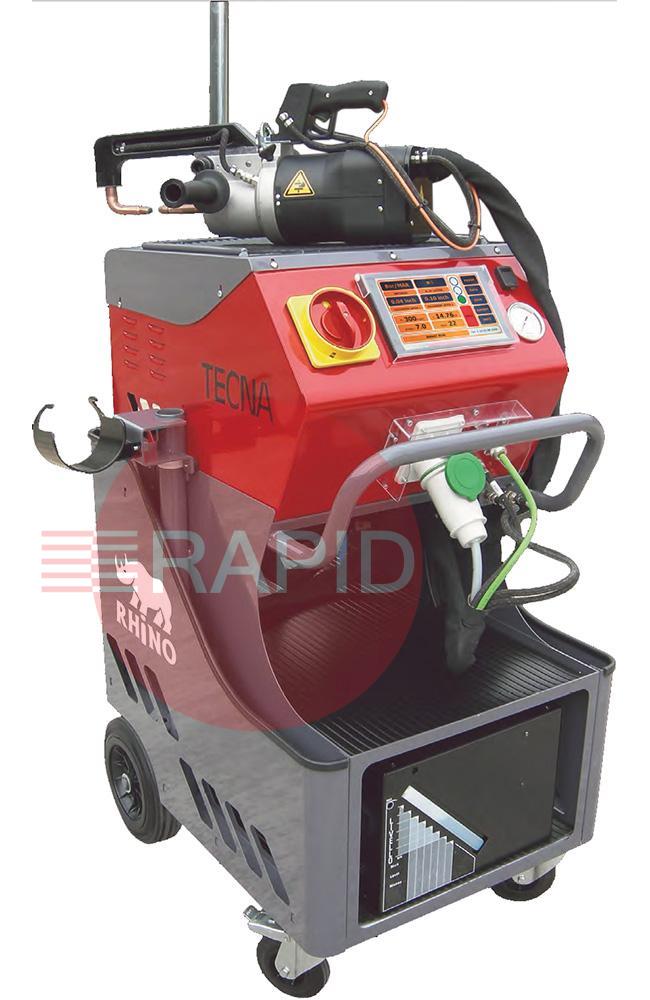

Tecna Rhino New Gen Spot Welder 14000 Amps ZX3664

£12530.00  EX VAT
SSP Suggested Selling Price = £17900.00  YOU SAVE £5370.00
 Buy in 3 easy interest free payments of £4176.67† with
Please note, this product does not qualify for our standard shipping rates outside of the UK Mainland. Please contact us for shipping rates for this product.



This is the very latest and to date, the most powerful spot-welding station to come out of Tecna. The Rhino has 14000 amps of welding power together with a clamping force of 610 daN, this means it currently meets all criteria set by all the vehicle manufacturers. The Rhino features a 7" digital touchscreen display, a USB port for data storage, automatic welding pressure set up by the proportional valve, and full quality control.

Key Features

  • Easy basic operator adjustment
  • Expert for full operator parameter input
  • Smart computer adjusted parameters with minimal operator input
  • Smart plus full computer adjusted parameters

Product Details

Technical Information

Input Voltage: 400V 50/60 Hz

Nominal power at 50%: 19 kVA

Maximum welder power: 60 kVA

Maximum secondary current: 14 kA

Thermal current 100%: 1.8 kA

No load secondary voltage: 8.7v

Maximum electrode force: 450 daN

Recognition sensor: S

Protection insulation class: IP21

Weight: 130kg

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
