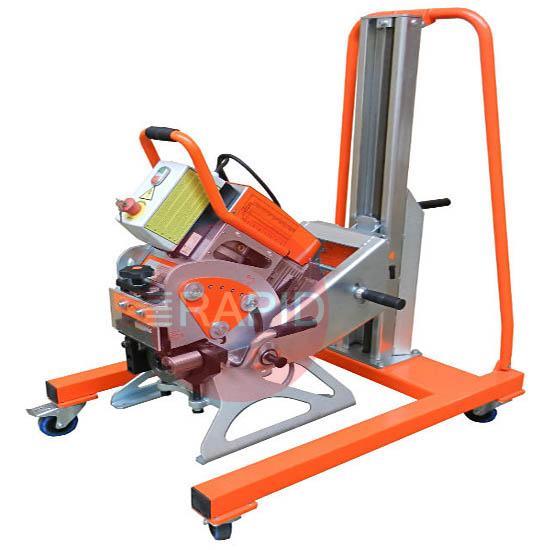

The XL15 is an innovative, variable-angle plate beveller incorporating user-friendly features. This package includes the 3D Plus multi-position three-dimensional manipulator system designed to create a double-sided bevel.
Steelbeast XL-15 Features
- Produces a bevel ready for welding on any steel plate or component from 5 to 40mm thickness
- A minimum width of 70mm and a minimum working length of 150mm
- Simple, variable adjustment bevel angle from between 15° and 50° without replacing any parts
- Cutters available for mild and stainless steel bevelling
- Easy setting of material thickness and cut with easily visible graduated scales for simple set-up
- Operator-friendly handles for transferring the machine around the workplace or positioning during long machining processes
- High-quality and hard-performing working parts
- Electronic operating system enclosed in a safety-conscious, heavy-duty control box
3D Plus Features
- Provides a simple, quick turn of the STEELBEAST XL-15 Bevelling Machine by 180° to create a double bevel
- Operator Friendly; the user can carry out movements without the use of a crane, providing significant time saving on work set up
- The Unique Clamping system allows the STEELBEAST XL-15 to fit into the manipulator within a few seconds without the use of any tools
- The 3D PLUS keeps the bevelling operation steady when travelling on uneven floor surfaces
- Working height of the machine can be easily set up by lift handles
- The 3D PLUS can be used either as a stationary workplace or will bevel along the workplace
