Rapid Ref : W011257

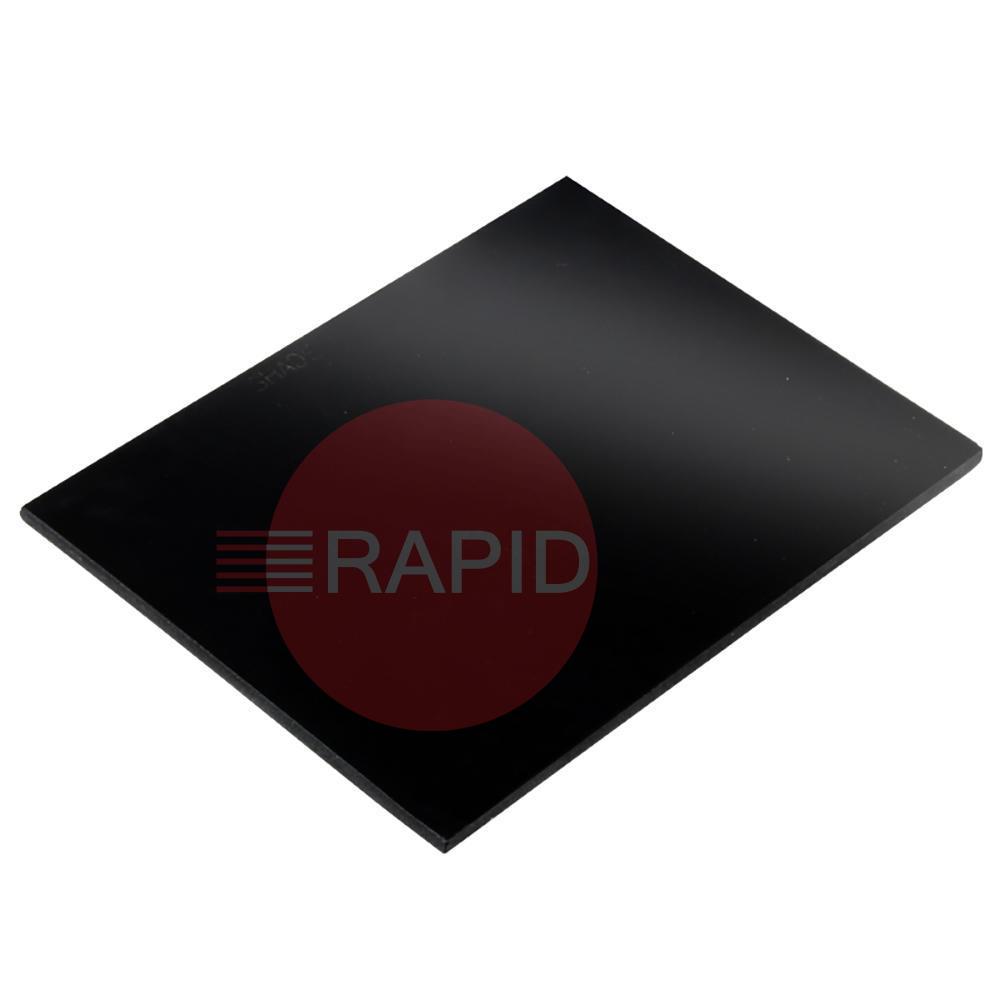

Shade 11. 86mm x 109mm Filter
W011257

Name: Shade 11. 86mm x 109mm Filter
SKU: W011257
Price: 1.42 GBP

£1.42 EX VAT

SSP Suggested Selling Price = £1.67 YOU SAVE £0.25

Gamma PFA with RSA 230 Parts FAQs

Spares and consumables for a powered or air-fed welding helmet system: how to identify the right part, what wears, and how to look after it.

How do I work out the right replacement part for my powered or air-fed helmet system?

Start with the user manual and the markings on the unit and on the old part. The manual's parts list or exploded diagram will show the exact type, and the part number on the worn item (or the system's own label) helps confirm it. Note the helmet or system type and any serial or version details before you order.

The HSE advises that, ideally, replacement parts come from the original manufacturer of the equipment, so that the system keeps performing as the maker intended. Parts that look the same can differ in fit, flow or approval, so check compatibility with the maker rather than guessing from appearance. If you are unsure, our team can help you match a part to your system.

Which parts of a powered or air-fed helmet system wear out and need replacing?

The HSE lists the key maintenance tasks for powered respirators as changing replaceable filters, cleaning, checking the straps for damage, and checking the battery charge and flow rate. In practice, the items that wear most are filters and pre-filters, hoses, belts and straps, seals, sweatbands, and the cover lens on the helmet.

How quickly each one wears depends on the work, the environment and the maker's instructions. Look over the whole system before each use, and replace anything cracked, stretched, torn, loose or contaminated rather than waiting for it to fail.

What does a flow check tell me, and what should I do if the flow is low?

A flow check shows whether the system is providing the airflow the maker specifies. The HSE lists checking battery charge and flow rate as a key task for powered devices, and the maker's manual explains how to carry out the check with the correct meter and what reading is acceptable for your system.

If the fan stops, an alarm sounds or the flow falls, the HSE guidance is clear: never keep working. Leave the work area straight away, then find the cause. Common causes include a loaded or blocked filter, a flat battery, a kinked or damaged hose, or a poorly fitted part. Do not return to welding until the system passes the check.

How should I clean and store the hose, belt and helmet parts?

Follow the maker's cleaning advice. The HSE says that using cleaning products other than those the maker recommends may cause problems with the equipment, so avoid solvents and harsh chemicals unless the manual allows them. Clean and dry parts in a clean area so they are not contaminated again.

The HSE also advises cleaning equipment before it is stored, and storing it as the maker instructs, in a clean place that protects it from contamination, damage and deterioration. Keep the helmet from resting face down on the cover lens, and remove or disconnect the battery for long-term storage if the manual says so. Check the parts again before the next use.

See all 6 questions for this category
