    Rapid Ref : ELEMENT100

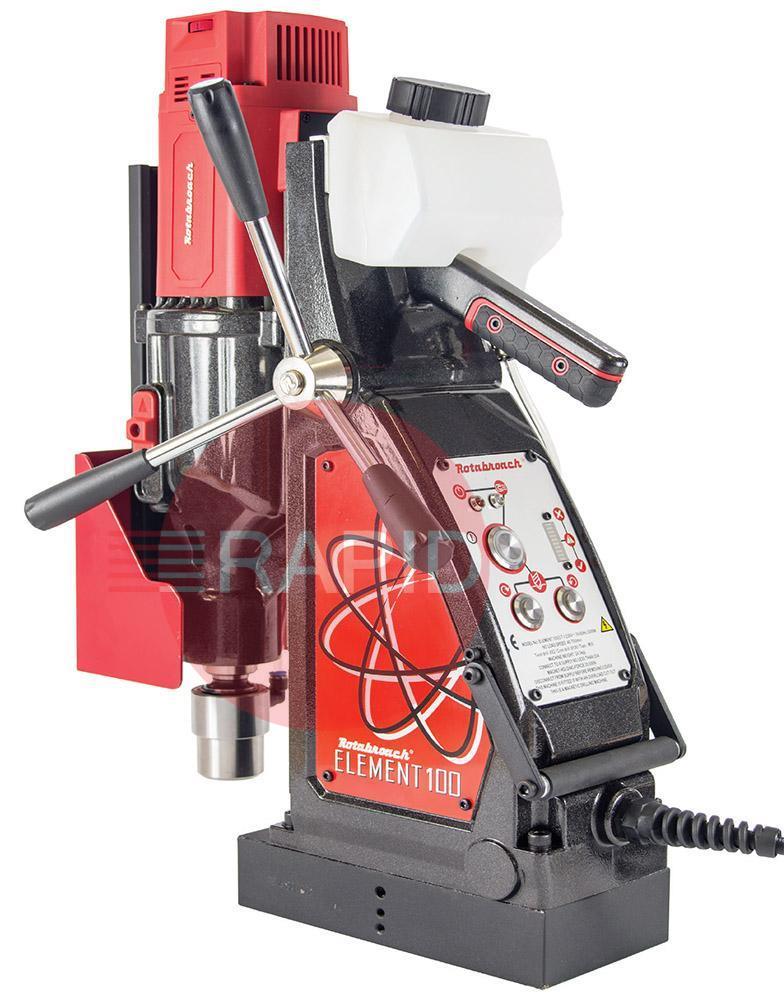

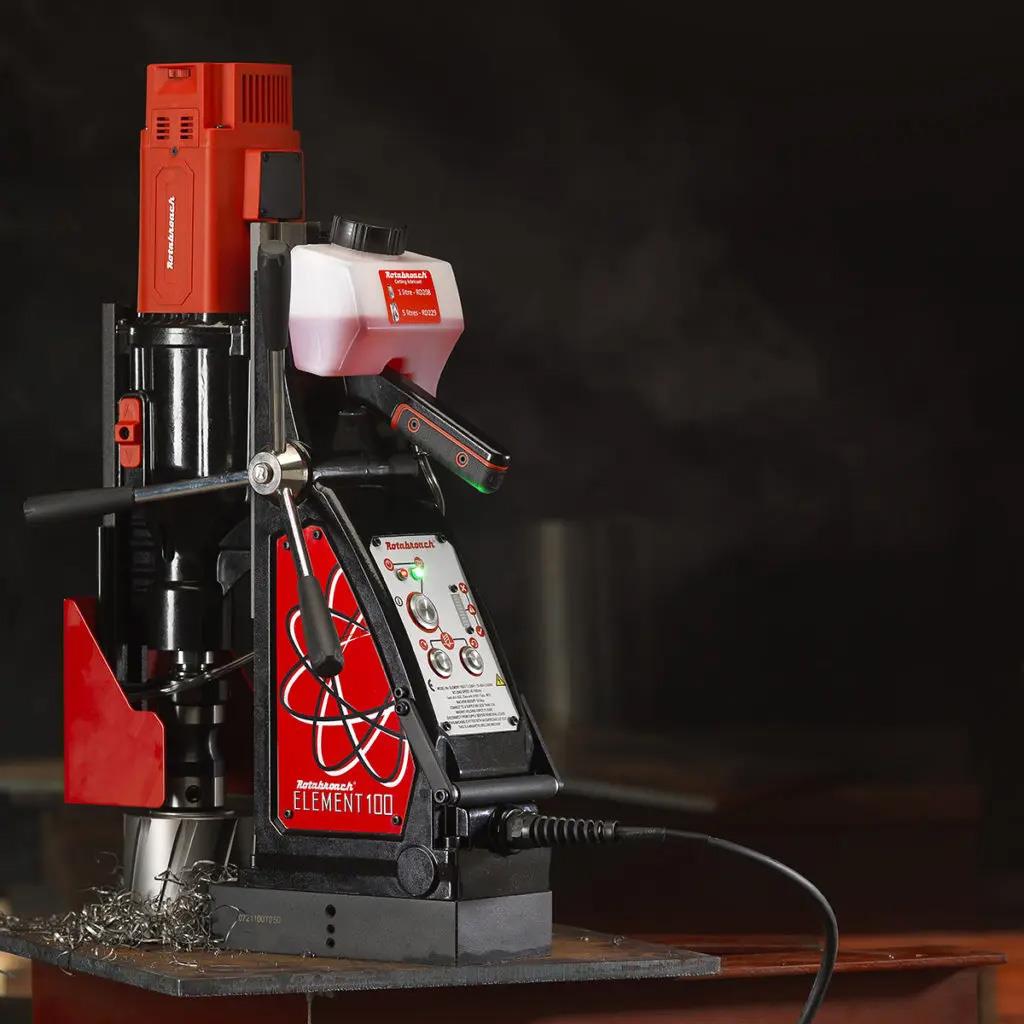

    Rotabroach Element 100 Magnetic Drill ELEMENT100

    Prices From £1145.00 ex VAT
    Select Option

    The Element 100 is Rotabroach's largest machine with large diameter drilling and cutting depths. It is suitable for drilling up to 100mm diameter by 100mm depth. The Element 100 offers forward and reverse functionality for tapping. The range also features a unique dual motor protction system prolonging the machines life and preventing unwanted wear.

    Specification
    Motor specification: 110v 2000W
    No load RPM: Gear 1: 45 - 129 RPM / Gear 2: 70 - 208 RPM / Gear 3: 150 - 434 RPM / Gear 4:240 - 700 RPM
    Max Hole Cutting Capacity: 100 x 100mm Deep - 31.75mm with 3MT drill
    Dimensions: Height 560mm Width 230mm (with capstan) Length 460mm with Guard
    Weight: 24.8kg
    Magnetic Adhesion: 20,000N
    Magnet Size: 228mm x 114mm

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure
       Rotabroach Element 100 Manual
