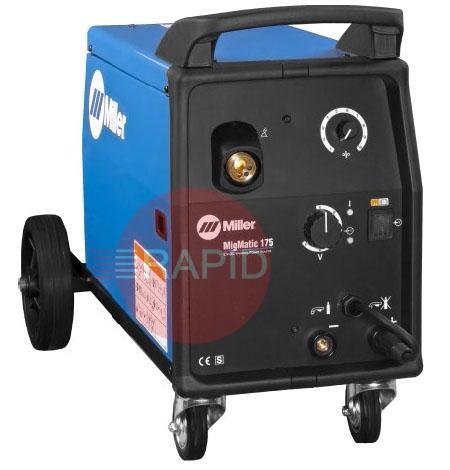

The Miller MigMatic 175 is a traditional tapped design Mig welder. Running off single phase 230v the traditional rectifier based power source benefits from a full 3 year Miller True Blue Warranty. Rated at 150 A at 35% Duty cycle, the MigMatic includes a built in undercarriage with a bottle rack for easy manoeuvrability of the power source and ancillaries.
Industrial quality MIG System Includes
- Reverse polarity change over
- 6 Voltage steps
- Robust wire feed system
- 0.6/0.8mm V-Groove Drive Roll Kit
- Heavy duty ground cable and clamp
- Gas Hose
- Factory installed running gear/bottle rack
Features
Euro-Style Torch adapter
Quick and easy installation of professional style torches, allows the operator to have a separate torch for other applications.
Dual Roll Drive system
Robust motor & drive assembly with wire speeds ranging from 1.8-18m/min.
Reversible Drive Rolls
With dual grooves allows one set of drive roll for two wire sizes.
15Kg spool capacity & “professional” style reel holder
Permits the use of larger more economical reels of MIG wire without the need for additional spool adapters.
Easy access to output terminals provides convenient polarity changeover when changing to solid or flux cored wires.
