W03X0893-29A Lincoln Electric LC65 / PC1030 Nozzle 60A (Pack of 5)
    Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

    Rapid Ref : W03X0893-29A  Mfr Ref : KP2844-4

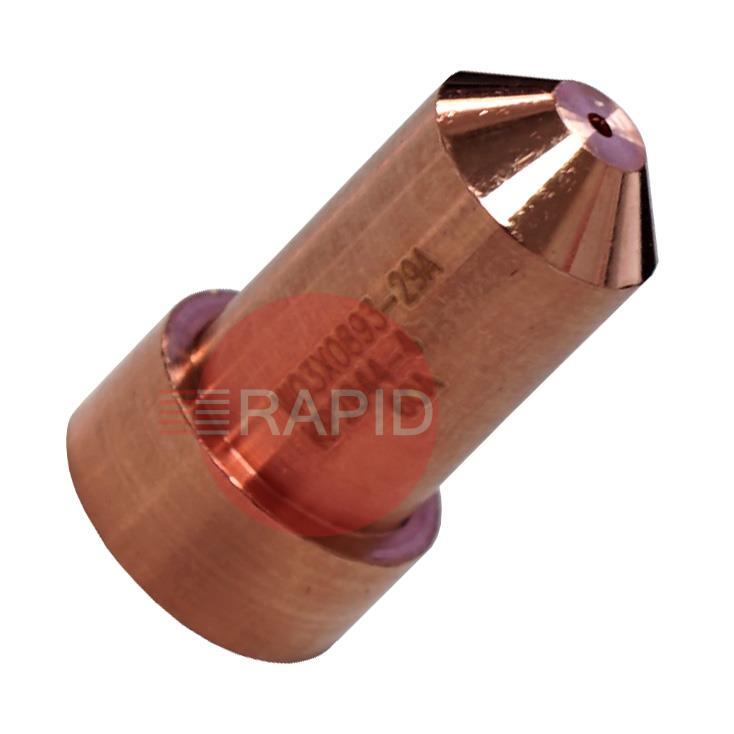

    Lincoln Electric LC65 / PC1030 Nozzle 60A (Pack of 5)
    KP2844-4 W03X0893-29A

    £30.29  EX VAT
    SSP Suggested Selling Price = £33.66  YOU SAVE £3.37
     Buy in 3 easy interest free payments of £10.10† with

    Related Items

    Tomahawk 1025 LC65 Consumables FAQs

    Torch consumables for a hand-held plasma cutter: what each part does, how to spot wear and how to get the most from a set.

    How do I tell when an electrode is worn?icon-minus-redicon-plus-red

    The electrode has an insert at its tip that wears into a small pit as you cut. Replace it when the pit becomes too deep, because running it further can damage the nozzle and torch. The pit depth limit depends on the maker, so use the figure in your manual.

    Cut quality is the other clue: if edges become rough, dross increases or the arc is hard to start, inspect the electrode and nozzle. Never refit a worn electrode just to use it up.

    Should I replace the nozzle and electrode together?icon-minus-redicon-plus-red

    Yes, that is the usual advice. A new electrode fitted behind a worn nozzle, or the reverse, tends to wear out quickly and gives poor cuts. Makers' manuals say to replace the nozzle at the same time as the electrode when the electrode is changed for wear, and some recommend changing the two as a set.

    Which of the two wears first depends on how you cut. Check the other parts at the same time, such as the swirl ring and retaining cap, for cracks, chips or blocked gas holes, and replace any that are damaged.

    What does the shield cap do, and can I clean it?icon-minus-redicon-plus-red

    The shield cap sits at the front of the torch and takes the sparks and molten metal thrown back from the cut, protecting the parts behind it. Over time, spatter builds up on it and can disturb airflow.

    If the cap is undamaged, molten metal can be carefully removed. Replace it if it shows erosion, cracks, melted surfaces or damaged sealing rings, or if build-up cannot be removed. Use suitable cleaning tools, as the wrong ones can scratch or damage the part. Make sure the torch is isolated and cool before handling any part.

    What is the difference between drag cutting and cutting with a spacer?icon-minus-redicon-plus-red

    Some torches are designed so the front of the torch can rest on the plate and be dragged along the cut. Others need a fixed gap between nozzle and work, which a spacer or standoff guide helps you keep. A drag shield cap sits over the nozzle, so a nozzle must still be fitted beneath it.

    Which style you use depends on the torch design and the current setting, so follow your manual. Do not mix parts from different styles. If you are unsure which one suits your torch, check the data plate and manual, or ask our team.

    See all 6 questions for this category
