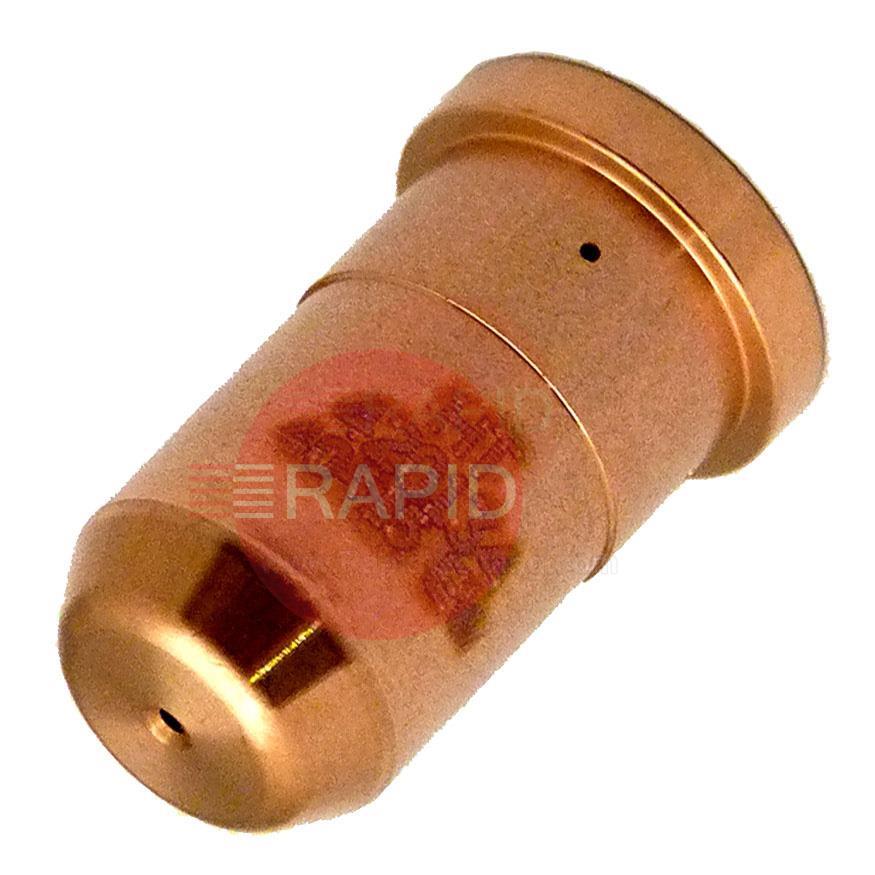

Hypertherm Nozzle, for Powermax AIR T30 (30A)
420134

Name: Hypertherm Nozzle, for Powermax AIR T30 (30A)
SKU: 420134
Price: 6.88 GBP

£6.88 EX VAT

SSP Suggested Selling Price = £8.60 YOU SAVE £1.72

Powermax 30 AIR / AIR T30 FAQs

Answers to common questions about the consumable parts used in a 30 amp air plasma hand torch.

What do the different torch consumables actually do?

The electrode carries the current and starts the arc, and the nozzle focuses the arc and gas into a narrow cutting stream. The swirl ring spins the gas around the arc, which helps keep the arc stable and cools the nozzle. The retaining cap holds the set together and helps direct the gas, and a shield or deflector protects the front end from molten metal thrown back during the cut.

The exact parts and how they fit vary by torch, so check your torch's manual for the correct set.

How do I know when to replace the electrode?

Look at the tip of the electrode. Over time the small insert in the centre erodes and leaves a pit. Makers give a pit-depth limit for each electrode type, so use the figure in your manual. A pit that is deep, uneven or wider than the insert means the electrode and nozzle should be replaced. Running on past that point can damage the nozzle and torch.

Poor starting, a drop in cut quality or a green-tinged arc can also point to worn parts or to moisture and oil in the air supply, so inspect the parts and check the air. The maker's manual gives the wear limit for your torch.

How can I tell if the nozzle is worn out?

Cut quality is usually the first clue: a wider kerf, more dross and a less focused arc. Inspect the nozzle itself. An orifice that is enlarged, irregular or out of round needs replacing, as does one with oxide residue or gouging inside or outside the nozzle.

Nozzles wear faster if the tip is touched to the work, the material is too thick for the machine, or the air is wet. Hand cutting often wears the nozzle first, though this varies, so check both parts regularly.

How often do the swirl ring and retaining cap need replacing?

They wear much more slowly than the electrode and nozzle, so they are usually checked rather than changed every time. Inspect them for cracks, heat damage and slag build-up. A swirl ring that has been knocked or dropped may crack, and build-up on a cap or shield can restrict gas flow.

Replace them when you see damage. Some guides suggest changing the swirl ring every few electrode changes, but there is no fixed rule; follow the torch maker's manual and replace on condition.
