Rapid Ref : 220674

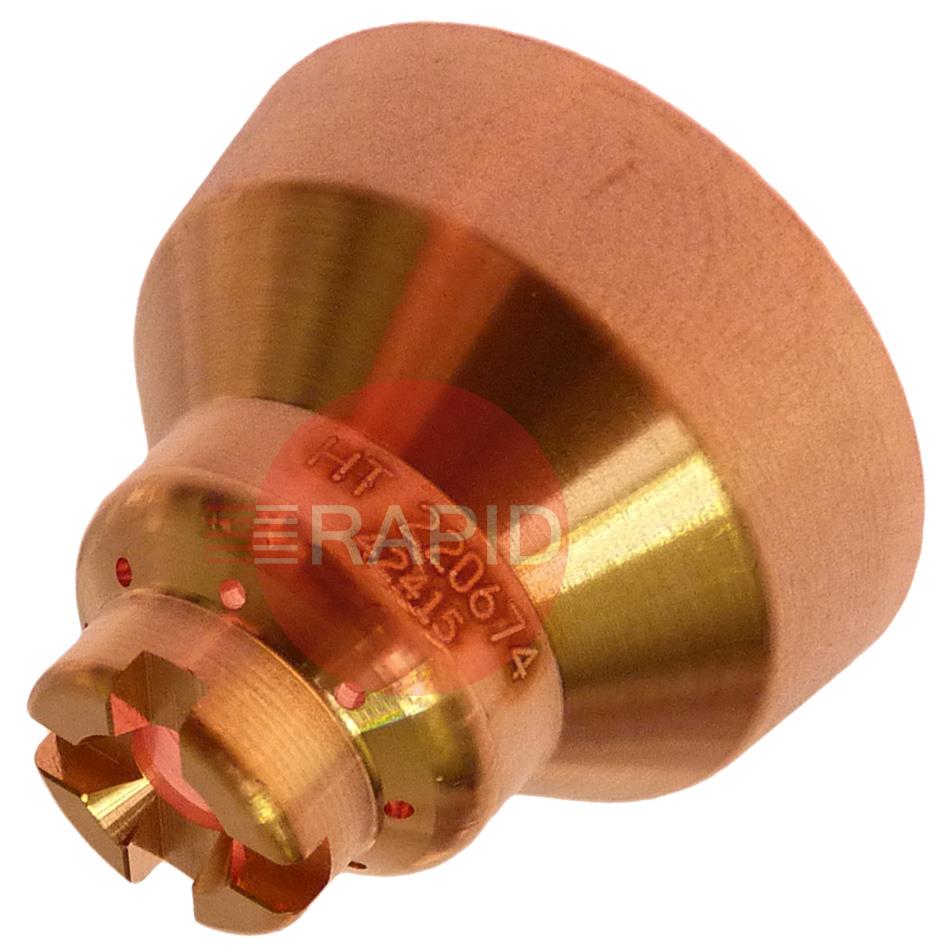

Hypertherm Drag Cutting Shield, for Powermax 45 (45A)
220674

Name: Hypertherm Drag Cutting Shield, for Powermax 45 (45A)
SKU: 220674
Price: 15.52 GBP

£15.52 EX VAT

SSP Suggested Selling Price = £19.40 YOU SAVE £3.88

Powermax 45 Consumables FAQs

Straight answers on choosing, fitting and looking after the torch consumables for a 45 amp class plasma cutter.

Can I fit lower-current consumables in a plasma torch?

Some torches are designed to accept the consumables of a smaller model in the same family, and parts rated for a lower current are often used when cutting thin metal at lower settings. That only works where the maker says the parts are compatible, so check the manual or consumable chart before mixing.

Parts rated below the current you are actually cutting at will burn out quickly, and the reverse is also poor practice. Set the machine to a current that suits the consumables you have fitted, and use one matching set rather than odd parts from different current ratings.

What are extended-reach consumables and when are they worth using?

Extended-reach consumables are longer than standard parts and have a narrow tip. They let you get into corners, channels, close edges and flanges, and give a clearer view of the line you are cutting or gouging. They can save a grinding or gas-cutting step on awkward jobs.

The trade-off is heat: longer, slimmer parts cool less well, especially on an air-cooled torch, so they are best kept for jobs that need the access. They are made for particular torch designs, so check that the part is listed for your torch and current before ordering.

What is a gouging shield and nozzle used for?

Gouging removes metal rather than cutting through it, for example taking out a weld or a bad joint. The nozzle has a larger opening than a cutting nozzle, which gives a wider, softer arc, and the torch is held at an angle to the work instead of upright. The shield is shaped to suit that technique and the spatter it throws.

A gouging set is not a substitute for a cutting set. Fitting gouging parts for a straight cut gives a wide, rough kerf, so keep each set for its own job and check the maker's chart for the right parts for your current.

How tight should the retaining cap be?

Fit the cap by hand until it is snug and seated, and do not use a tool or force it. Overtightening can damage the consumables or stop them working properly, and it can strain the threads and the parts inside the torch head. Cross-threading is the other common mistake, so start the thread gently and make sure it turns freely before it firms up.

If the cap will not seat without force, take it off and check that every part is fitted correctly and that the threads are clean. Your manual describes the correct fitting for your torch.

See all 6 questions for this category
