Rapid Ref : 22835X

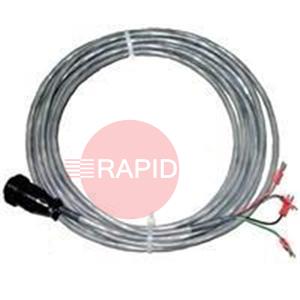

Hypertherm CNC Interface Cable (For use with automation equipment that requires divided arc voltage)
22835X

Name: Hypertherm CNC Interface Cable (For use with automation equipment that requires divided arc voltage)
SKU: 22835X

Select Option

Prices From £126.00 ex VAT

Powermax 125 Machine Systems FAQs

Straight answers to the questions people ask most when choosing a top-end plasma system for mechanised cutting.

What is a high-power machine plasma system used for?

It is used on cutting tables, gantries, bevel heads, pipe cutters and robotic cells that need to cut thick plate quickly and repeatably. The mechanised torch holds a steady height and speed, giving more consistent edges than hand cutting.

It suits steel fabricators, heavy engineering and contract cutters. If you only cut a few parts by eye, a hand system may be simpler.

How long should the torch lead be?

It should reach the whole travel of the gantry or carriage without being stretched or snagged. A lead that is too short limits movement and wears quickly; a lead that is too long adds clutter.

Use a drag chain or support on larger tables, and avoid coils, tight bends and pinch points.

What supply and air do I need?

The data plate and manual give the input voltage, number of phases and current drawn. Higher-power machine systems commonly need a three-phase supply, but this varies, so do not assume. The supply, protective device and cabling must suit the figures on the plate and should be installed or checked by a qualified electrician.

The system also needs a good flow of clean, dry compressed air at the pressure and flow rate stated in the manual. Use a properly sized compressor, filter and moisture separator, with a dryer for heavy use, and check pressure with air flowing.

How do I get a clean, square edge?

Edge quality depends on current, travel speed, stand-off height, consumable condition and air quality. Use the maker's cut chart as a starting point, then adjust on scrap plate. Slow speeds leave dross and fast speeds leave it trailing behind.

Remember that plasma edges have a natural slight angle, and worn consumables make it worse. Replace them early.

See all 6 questions for this category
